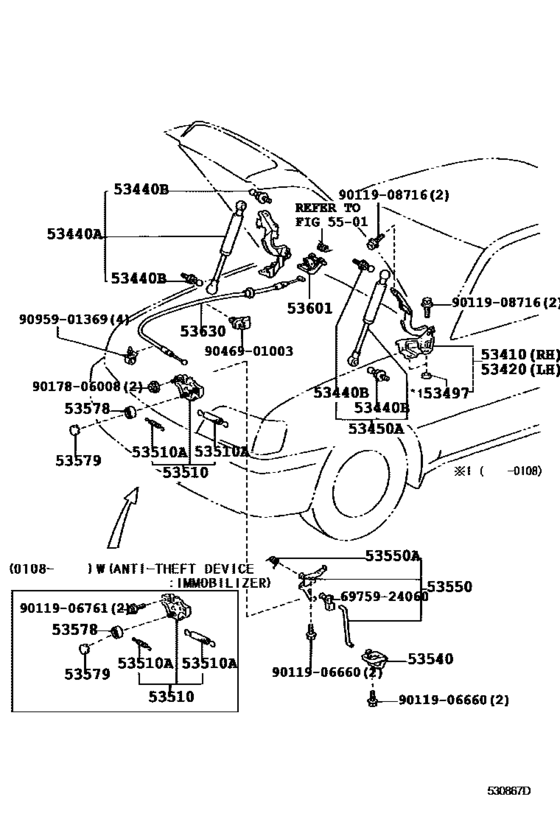

Hood Lock & Hinge ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-30160 Hinge Assy, Hood, Rh[09.1999 - 08.2001] JZS175 |
53410-30160 |
from US $29.79 |
||
|
53420
|
53420
53420-30160 Hinge Assy, Hood, Lh[09.1999 - 08.2001] JZS175 |
53420-30160 |
from US $29.79 |
||
|
53440A
|
53440A
53440-39185
Support Assy, Hood, Rh
[09.1999 - 08.2001] JZS175 |
53440-39185 |
— | ||
| replacement | |||||
|
53440A
|
53440A
53440-39205 Support Assy, Hood, Rh[09.1999 - 08.2001] JZS175 |
53440-39205 |
US $155.80 |
||
|
53440B
|
53440B
68961-20051 Bolt, Hood Support, No.1[08.2001 - 12.2003] JZS175 |
68961-20051 |
from US $5.28 |
||
|
53440B
|
53440B
68961-24030
Bolt, Hood Support, No.1
[09.1999 - 08.2001] JZS175 |
68961-24030 |
— | ||
| replacement | |||||
|
53440B
|
53440B
68961-20051 Bolt, Hood Support, No.1[09.1999 - 08.2001] JZS175 |
68961-20051 |
from US $5.28 |
||
|
53450A
|
53450A
53450-39165
Support Assy, Hood, Lh
[09.1999 - 08.2001] JZS175 |
53450-39165 |
— | ||
| replacement | |||||
|
53450A
|
53450A
53450-39185 Support Assy, Hood, Lh[09.1999 - 08.2001] JZS175 |
53450-39185 |
US $155.80 |
||
|
53497
|
53497
53497-20070 Pad, Hood Hinge, No.1[09.1999 - 06.2001] JZS175 T=2.0 |
53497-20070 |
US $2.51 |
||
|
53497
|
53497
53497-50020 Pad, Hood Hinge, No.1[06.2001 - 08.2001] JZS175 T=1.0 |
53497-50020 |
from US $2.19 |
||
|
53497
|
53497
53497-50030 Pad, Hood Hinge, No.1[06.2001 - 08.2001] JZS175 T=2.0 |
53497-50030 |
US $4.51 |
||
| replacement | |||||
|
53497
|
53497
53497-50020 Pad, Hood Hinge, No.1[06.2001 - 08.2001] JZS175 T=2.0 |
53497-50020 |
from US $2.19 |
||
|
53510
|
53510
53510-50090 Lock Assy, Hood[08.2001 - 12.2003] JZS175 W(ANTI-THEFT DEVICE:IMMOBILIZER) |
53510-50090 |
US $65.87 |
||
|
53510
|
53510
53510-51011 Lock Assy, Hood[09.1999 - 08.2001] JZS175 |
53510-51011 |
US $43.24 |
||
|
53510A
|
53510A
90506-09050 Spring, Tension(For Hood Lock)[09.1999 - 08.2001] JZS175 WD=0.9,CW=20.5 |
90506-09050 |
from US $1.38 |
||
|
53510A
|
53510A
90506-16071 Spring, Tension(For Hood Lock)[09.1999 - 08.2001] JZS175 WD=1.8,CW=18 |
90506-16071 |
US $3.06 |
||
|
53510A
|
53510A
90506-18068 Spring, Tension(For Hood Lock)[08.2001 - 12.2003] JZS175 WD=1.8,CW=18,W(ANTI-THEFT DEVICE:IMMOBILIZER) |
90506-18068 |
US $2.33 |
||
|
53540
|
53540
53540-30020 Lever Assy, Auxiliary Catch Release[09.1999 - 08.2001] JZS175 |
53540-30020 |
from US $26.05 |
||
|
53550
|
53550
53550-30090 Hook Assy, Hood Auxiliary Catch[09.1999 - 08.2001] JZS175 |
53550-30090 |
US $42.28 |
||
|
53550A
|
53550A
90508-18102 Spring, Torsion(For Hood Lock Hook)[09.1999 - 08.2001] JZS175 |
90508-18102 |
US $1.75 |
||
|
53578
|
53578
53578-50010 Nut, Hood Lock[09.1999 - 08.2001] JZS175 |
53578-50010 |
from US $1.12 |
||
|
53579
|
53579
53579-50010 Cap, Hood Lock Nut[09.1999 - 08.2001] JZS175 |
53579-50010 |
from US $1.12 |
||
|
53601
|
53601
53611-22010-A0 Lever Sub-Assy, Hood Lock Control[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
53611-22010-A0 |
US $10.19 |
||
|
53601
|
53601
53611-22010-B2 Lever Sub-Assy, Hood Lock Control[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
53611-22010-B2 |
US $10.19 |
||
|
53630
|
53630
53630-30260 Cable Assy, Hood Lock Control[09.1999 - 08.2001] JZS175 |
53630-30260 |
US $23.73 |
||
| replacement | |||||
|
53630
|
53630
53630-30280 Cable Assy, Hood Lock Control[09.1999 - 08.2001] JZS175 |
53630-30280 |
US $21.84 |
||
|
53630
|
53630
53630-30280 Cable Assy, Hood Lock Control[08.2001 - 12.2003] JZS175 |
53630-30280 |
US $21.84 |
||
|
6975924060
|
6975924060
69759-24060 Snap(For Rear Door Lock) |
69759-24060 |
from US $5.20 |
||
|
9011906660
|
9011906660
90119-06660 BOLT |
90119-06660 |
US $2.15 |
||
|
9011906761
|
9011906761
90119-06761
New Genuine Part
|
90119-06761 |
— | ||
| replacement | |||||
|
9011906761
|
9011906761
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.74 |
||
|
9017806008
|
9017806008
90178-06008 NUT FLANGE |
90178-06008 |
from US $0.67 |
||
|
9046901003
|
9046901003
90469-01003 Clamp(For Hood Lock Control Cable) |
90469-01003 |
US $3.94 |
||
|
9095901369
|
9095901369
90959-01369 Clamp, Hood Lock Control Cable |
90959-01369 |
from US $0.97 |
||
