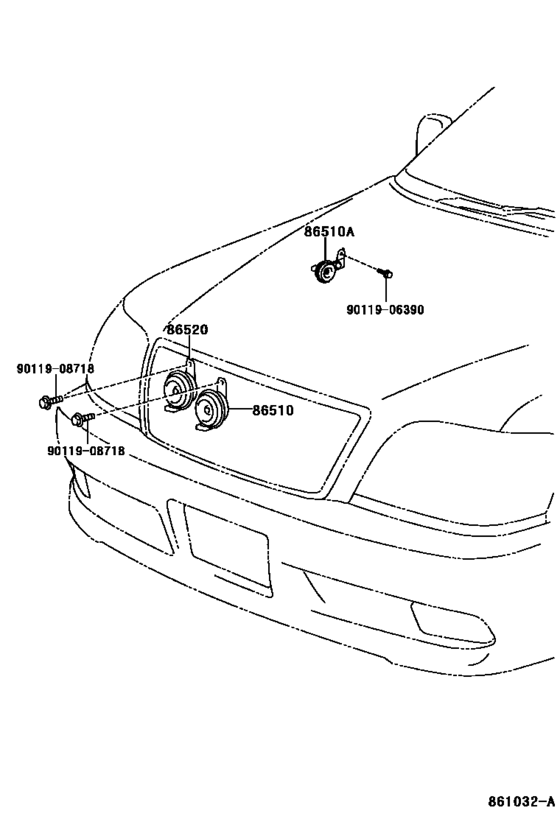

Horn ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86510
|
86510
86510-28080
Horn Assy, High Pitched
[09.1999 - 08.2001] JZS175 MARUKO |
86510-28080 |
— | ||
|
86510
|
86510
86510-28090 Horn Assy, High Pitched[09.1999 - 08.2001] JZS175 DENSO |
86510-28090 |
US $32.47 |
||
|
86510A
|
86510A
86510-30620 Horn Assy, Security[08.2001 - 12.2003] JZS175 |
86510-30620 |
US $47.03 |
||
|
86520
|
86520
86520-28050 Horn Assy, Low Pitched[09.1999 - 08.2001] JZS175 MARUKO |
86520-28050 |
from US $47.03 |
||
|
86520
|
86520
86520-28080 Horn Assy, Low Pitched[09.1999 - 08.2001] JZS175 DENSO |
86520-28080 |
US $32.47 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011908718
|
9011908718
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.92 |
