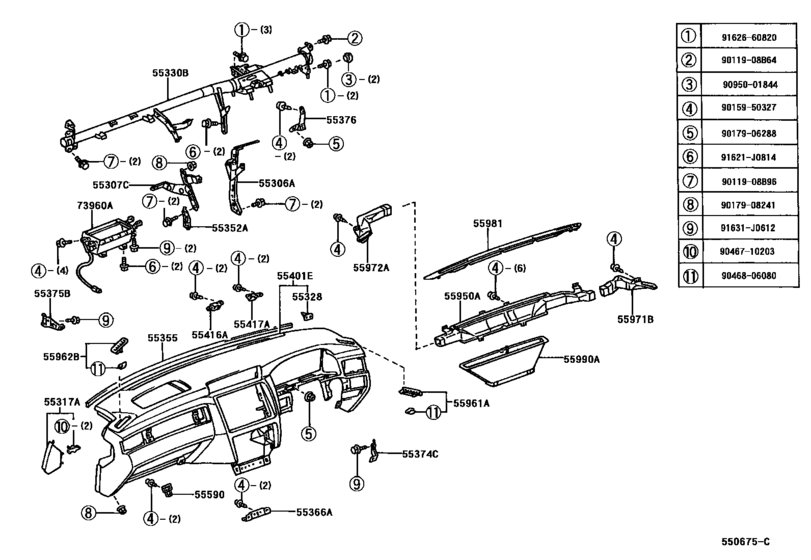

Instrument Panel & Glove Compartment ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55306A
|
55306A
55306-30310 Brace Sub-Assy, Instrument Panel, No.1[09.1999 - 08.2001] JZS175 |
55306-30310 |
US $38.73 |
||
|
55307C
|
55307C
55307-30320 Brace Sub-Assy, Instrument Panel, No.2[09.1999 - 08.2001] JZS175 |
55307-30320 |
US $28.39 |
||
|
55317A
|
55317A
55317-30030-A0 Panel, Instrument Side, Rh[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55317-30030-A0 |
US $24.02 |
||
| replacement | |||||
|
55317A
|
55317A
55317-30030-C0 Panel, Instrument Side, Rh[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55317-30030-C0 |
US $24.02 |
||
|
55317A
|
55317A
55317-30030-B1 Panel, Instrument Side, Rh[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55317-30030-B1 |
US $24.02 |
||
| replacement | |||||
|
55317A
|
55317A
55317-30030-C0 Panel, Instrument Side, Rh[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55317-30030-C0 |
US $24.02 |
||
|
55328
|
55328
55328-51020 Pin, Instrument Panel, No.1[09.1999 - 08.2001] JZS175 |
55328-51020 |
US $6.12 |
||
| replacement | |||||
|
55328
|
55328
55328-22040 Pin, Instrument Panel, No.1[09.1999 - 08.2001] JZS175 |
55328-22040 |
US $5.97 |
||
|
55330B
|
55330B
55330-30240 Reinforcement Assy, Instrument Panel[09.1999 - 08.2001] JZS175 |
55330-30240 |
US $208.21 |
||
| replacement | |||||
|
55330B
|
55330B
55330-30260 Reinforcement Assy, Instrument Panel[09.1999 - 08.2001] JZS175 |
55330-30260 |
US $208.21 |
||
|
55330B
|
55330B
55330-30260 Reinforcement Assy, Instrument Panel[08.2001 - 12.2003] JZS175 |
55330-30260 |
US $208.21 |
||
|
55352A
|
55352A
55352-30250 Brace, Instrument Panel To Floor, No.2[09.1999 - 08.2001] JZS175 |
55352-30250 |
US $9.90 |
||
|
55355
|
55355
55355-30050 Cushion, Instrument Panel, No.1[09.1999 - 08.2001] JZS175 |
55355-30050 |
US $13.69 |
||
|
55366A
|
55366A
55366-30250 Bracket, Radio Mounting, No.1[09.1999 - 08.2001] JZS175 |
55366-30250 |
US $11.07 |
||
|
55374C
|
55374C
55374-30230 Bracket, Instrument Panel Lower Mounting, No.1[09.1999 - 08.2001] JZS175 |
55374-30230 |
US $5.97 |
||
|
55375B
|
55375B
55375-30120 Bracket, Instrument Panel Lower Mounting, No.2[09.1999 - 08.2001] JZS175 |
55375-30120 |
US $6.12 |
||
|
55376
|
55376
55376-30170 Bracket, Instrument Panel Mounting, No.1[09.1999 - 08.2001] JZS175 |
55376-30170 |
US $6.41 |
||
|
55401E
|
55401E
55401-30600-B0 Pad Sub-Assy, Instrument Panel Safety[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
55401-30600-B0 |
US $1,236.14 |
||
|
55401E
|
55401E
55401-30600-E0 Pad Sub-Assy, Instrument Panel Safety[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
55401-30600-E0 |
US $1,236.14 |
||
|
55401E
|
55401E
55401-30680-B0 Pad Sub-Assy, Instrument Panel Safety[08.2001 - 12.2003] JZS175 DK.CHARCOAL,TRIM1# |
55401-30680-B0 |
US $1,236.14 |
||
|
55401E
|
55401E
55401-30680-E0 Pad Sub-Assy, Instrument Panel Safety[08.2001 - 12.2003] JZS175 SANDAL WOOD,TRIM0# |
55401-30680-E0 |
US $1,236.14 |
||
|
55416A
|
55416A
55416-30150 Retainer, Meter Hood, No.1[09.1999 - 08.2001] JZS175 |
55416-30150 |
US $6.12 |
||
|
55417A
|
55417A
55417-30070 Retainer, Meter Hood, No.2[09.1999 - 08.2001] JZS175 |
55417-30070 |
US $6.12 |
||
|
55590
|
55590
55590-30030 Plate Assy, Grove Compartment Door Lock Striker[09.1999 - 08.2001] JZS175 |
55590-30030 |
US $5.24 |
||
|
55950A
|
55950A
55950-30150 Nozzle Assy, Defroster[09.1999 - 08.2001] JZS175 |
55950-30150 |
US $78.62 |
||
|
55961A
|
55961A
55961-30130-B0 Nozzle, Side Defroster, Rh[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
55961-30130-B0 |
US $17.91 |
||
| replacement | |||||
|
55961A
|
55961A
55961-30130-C0 Nozzle, Side Defroster, Rh[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
55961-30130-C0 |
US $17.91 |
||
|
55961A
|
55961A
55961-30130-E0 Nozzle, Side Defroster, Rh[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
55961-30130-E0 |
US $17.91 |
||
| replacement | |||||
|
55961A
|
55961A
55961-30130-C0 Nozzle, Side Defroster, Rh[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
55961-30130-C0 |
US $17.91 |
||
|
55962B
|
55962B
55962-30110-B0 Nozzle, Side Defroster, Lh[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
55962-30110-B0 |
US $16.45 |
||
|
55962B
|
55962B
55962-30110-E0 Nozzle, Side Defroster, Lh[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
55962-30110-E0 |
US $16.45 |
||
| replacement | |||||
|
55962B
|
55962B
55962-30110-B0 Nozzle, Side Defroster, Lh[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
55962-30110-B0 |
US $16.45 |
||
|
55971B
|
55971B
55971-30150 Duct, Side Defroster Nozzle, No.1[09.1999 - 08.2001] JZS175 |
55971-30150 |
US $18.20 |
||
|
55972A
|
55972A
55972-30150 Duct, Side Defroster Nozzle, No.2[09.1999 - 08.2001] JZS175 |
55972-30150 |
US $23 |
||
|
55981
|
55981
55981-30120-B0 Garnish, Defroster Nozzle, No.1[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
55981-30120-B0 |
US $56.64 |
||
| replacement | |||||
|
55981
|
55981
55981-30120-C0 Garnish, Defroster Nozzle, No.1[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
55981-30120-C0 |
US $57.22 |
||
|
55981
|
55981
55981-30120-E0 Garnish, Defroster Nozzle, No.1[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
55981-30120-E0 |
US $56.64 |
||
| replacement | |||||
|
55981
|
55981
55981-30120-C0 Garnish, Defroster Nozzle, No.1[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
55981-30120-C0 |
US $57.22 |
||
|
55990A
|
55990A
55990-30050 Nozzle Assy, Defroster, Lower[09.1999 - 08.2001] JZS175 |
55990-30050 |
US $59.40 |
||
|
73960A
|
73960A
73960-30050 Air Bag Assy, Instrument Panel Passenger W/o Door[09.1999 - 08.2001] JZS175 |
73960-30050 |
US $1,616.16 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.67 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011908B64
|
9011908B64
90119-08B64 New Genuine Part |
90119-08B64 |
US $1.75 |
||
|
9011908B96
|
9011908B96
90119-08B96 New Genuine Part |
90119-08B96 |
US $1.75 |
||
| replacement | |||||
|
9011908B96
|
9011908B96
91631-60816 BOLT |
91631-60816 |
from US $1.05 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
from US $0.84 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
from US $0.89 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046806080
|
9046806080
90468-06080 CLIP |
90468-06080 |
US $2.77 |
||
|
9095001844
|
9095001844
90950-01844 Plug, Hole(For Rear Door Panel) |
90950-01844 |
from US $2.60 |
||
|
9162660820
|
9162660820
91626-60820 BOLT WWASHER |
91626-60820 |
US $1.75 |
||
| replacement | |||||
|
9162660820
|
9162660820
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
