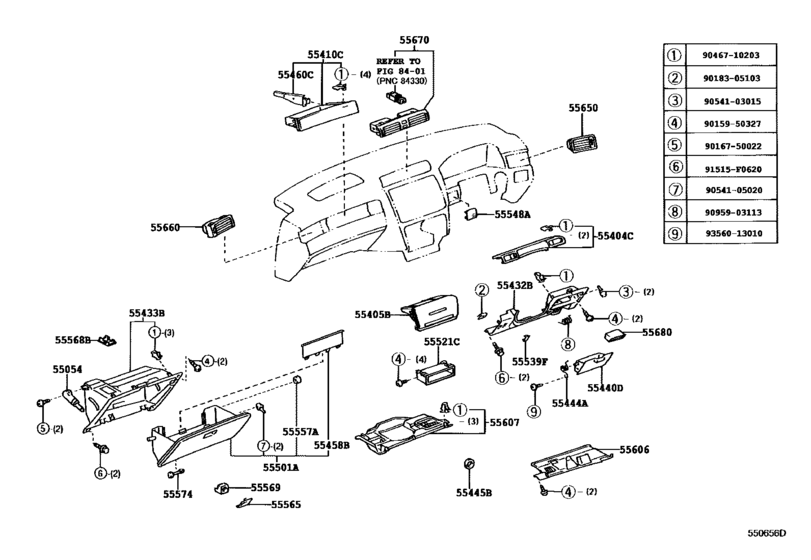

Instrument Panel & Glove Compartment ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-30010 Stopper Sub-Assy, Glove Compartment Door[09.1999 - 08.2001] JZS175 |
55054-30010 |
US $17.47 |
||
|
55404C
|
55404C
55404-30810 Panel Sub-Assy, Instrument Cluster Finish, No.2[09.1999 - 08.2001] JZS175 |
55404-30810 |
US $44.84 |
||
|
55404C
|
55404C
55404-30820
Panel Sub-Assy, Instrument Cluster Finish, No.2
[09.1999 - 08.2001] JZS175 W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)) |
55404-30820 |
— | ||
|
55405B
|
55405B
55405-30380-A0 Panel Sub-Assy, Instrument Cluster Finish, Center[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55405-30380-A0 |
US $177.63 |
||
| replacement | |||||
|
55405B
|
55405B
55405-30380-C1 Panel Sub-Assy, Instrument Cluster Finish, Center[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55405-30380-C1 |
US $177.63 |
||
|
55405B
|
55405B
55405-30380-A1 Panel Sub-Assy, Instrument Cluster Finish, Center[08.2001 - 12.2003] JZS175 IVORY,TRIM0# |
55405-30380-A1 |
US $177.63 |
||
| replacement | |||||
|
55405B
|
55405B
55405-30380-C1 Panel Sub-Assy, Instrument Cluster Finish, Center[08.2001 - 12.2003] JZS175 IVORY,TRIM0# |
55405-30380-C1 |
US $177.63 |
||
|
55405B
|
55405B
55405-30380-B1 Panel Sub-Assy, Instrument Cluster Finish, Center[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55405-30380-B1 |
US $177.63 |
||
| replacement | |||||
|
55405B
|
55405B
55405-30380-C1 Panel Sub-Assy, Instrument Cluster Finish, Center[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55405-30380-C1 |
US $177.63 |
||
|
55405B
|
55405B
55405-30380-B2 Panel Sub-Assy, Instrument Cluster Finish, Center[08.2001 - 12.2003] JZS175 MD.CHARCOAL,TRIM1# |
55405-30380-B2 |
US $177.63 |
||
| replacement | |||||
|
55405B
|
55405B
55405-30380-C1 Panel Sub-Assy, Instrument Cluster Finish, Center[08.2001 - 12.2003] JZS175 MD.CHARCOAL,TRIM1# |
55405-30380-C1 |
US $177.63 |
||
|
55410C
|
55410C
55410-30670-A0 Panel Assy, Instrument Cluster Finish[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55410-30670-A0 |
US $232.96 |
||
| replacement | |||||
|
55410C
|
55410C
55410-30830-A0 Panel Assy, Instrument Cluster Finish[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55410-30830-A0 |
US $238.78 |
||
|
55410C
|
55410C
55410-30670-B0 Panel Assy, Instrument Cluster Finish[09.1999 - 08.2001] JZS175 MEDIUM CHARCOAL,TRIM1# |
55410-30670-B0 |
US $232.96 |
||
| replacement | |||||
|
55410C
|
55410C
55410-30830-B0 Panel Assy, Instrument Cluster Finish[09.1999 - 08.2001] JZS175 MEDIUM CHARCOAL,TRIM1# |
55410-30830-B0 |
US $238.78 |
||
|
55410C
|
55410C
55410-30830-A0 Panel Assy, Instrument Cluster Finish[08.2001 - 12.2003] JZS175 IVORY,TRIM0# |
55410-30830-A0 |
US $238.78 |
||
|
55410C
|
55410C
55410-30830-B0 Panel Assy, Instrument Cluster Finish[08.2001 - 12.2003] JZS175 MEDIUM CHARCOAL,TRIM1# |
55410-30830-B0 |
US $238.78 |
||
|
55432B
|
55432B
55432-30280-A0 Panel, Instrument Panel Finish, Lower[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55432-30280-A0 |
US $116.48 |
||
|
55432B
|
55432B
55432-30280-B1 Panel, Instrument Panel Finish, Lower[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55432-30280-B1 |
US $116.48 |
||
|
55433B
|
55433B
55433-30140 Panel, Instrument Panel Finish, Lower No.2[09.1999 - 08.2001] JZS175 |
55433-30140 |
US $116.48 |
||
|
55440D
|
55440D
55440-30100-A0 Box Assy, Instrument Panel[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55440-30100-A0 |
US $51.11 |
||
|
55440D
|
55440D
55440-30100-B1 Box Assy, Instrument Panel[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55440-30100-B1 |
US $51.11 |
||
| replacement | |||||
|
55440D
|
55440D
55440-30100-C0 Box Assy, Instrument Panel[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55440-30100-C0 |
US $51.11 |
||
|
55444A
|
55444A
55444-22020 Spring, Instrument Panel Box[09.1999 - 08.2001] JZS175 |
55444-22020 |
US $1.16 |
||
|
55445B
|
55445B
55445-30220-A0 Plate, Instrument Panel Finish[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55445-30220-A0 |
US $3.93 |
||
| replacement | |||||
|
55445B
|
55445B
55445-30220-C0 Plate, Instrument Panel Finish (Black)[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55445-30220-C0 |
US $4.19 |
||
|
55445B
|
55445B
55445-30220-B1 Plate, Instrument Panel Finish[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55445-30220-B1 |
US $3.93 |
||
| replacement | |||||
|
55445B
|
55445B
55445-30220-C0 Plate, Instrument Panel Finish (Black)[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55445-30220-C0 |
US $4.19 |
||
|
55458B
|
55458B
55458-48010 Cover, Instrument, Lwr[09.1999 - 08.2001] JZS175 |
55458-48010 |
US $24.02 |
||
|
55460C
|
55460C
55460-30030 Lock Assy, Instrument Panel Box[08.2001 - 12.2003] JZS175 |
55460-30030 |
US $24.46 |
||
|
55501A
|
55501A
55501-30180-A0 Door Sub-Assy, Glove Compartment[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55501-30180-A0 |
US $267.90 |
||
|
55501A
|
55501A
55501-30180-B1 Door Sub-Assy, Glove Compartment[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55501-30180-B1 |
US $267.90 |
||
|
55521C
|
55521C
55521-30170 Cover, Stereo Opening[09.1999 - 08.2001] JZS175 |
55521-30170 |
US $42.81 |
||
|
55539F
|
55539F
55524-30030 Cover, Switch Bace Hole[08.2001 - 12.2003] JZS175 |
55524-30030 |
US $3.06 |
||
| replacement | |||||
|
55539F
|
55539F
55539-48020 Cover, Switch Bace Hole[08.2001 - 12.2003] JZS175 |
55539-48020 |
US $2.91 |
||
|
55548A
|
55548A
55548-30130-A0 Cover, Instrument Panel Hole[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55548-30130-A0 |
US $13.10 |
||
| replacement | |||||
|
55548A
|
55548A
55548-30130-C0 Cover, Instrument Panel Hole[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55548-30130-C0 |
US $13.10 |
||
|
55548A
|
55548A
55548-30130-B1 Cover, Instrument Panel Hole[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55548-30130-B1 |
US $13.10 |
||
| replacement | |||||
|
55548A
|
55548A
55548-30130-C0 Cover, Instrument Panel Hole[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55548-30130-C0 |
US $13.10 |
||
|
55548A
|
55548A
55548-30140-A0 Cover, Instrument Panel Hole[09.1999 - 08.2001] JZS175 W(AIR PURIFIRE),IVORY,TRIM0# |
55548-30140-A0 |
US $11.79 |
||
| replacement | |||||
|
55548A
|
55548A
55548-30140-C0 Cover, Instrument Panel Hole[09.1999 - 08.2001] JZS175 W(AIR PURIFIRE),IVORY,TRIM0# |
55548-30140-C0 |
US $11.79 |
||
|
55548A
|
55548A
55548-30140-B1 Cover, Instrument Panel Hole[09.1999 - 08.2001] JZS175 W(AIR PURIFIRE),MD.CHARCOAL,TRIM1# |
55548-30140-B1 |
US $11.79 |
||
| replacement | |||||
|
55548A
|
55548A
55548-30140-C0 Cover, Instrument Panel Hole[09.1999 - 08.2001] JZS175 W(AIR PURIFIRE),MD.CHARCOAL,TRIM1# |
55548-30140-C0 |
US $11.79 |
||
|
55557A
|
55557A
55557-16010 Cushion(For Glove Compartment Door)[09.1999 - 08.2001] JZS175 |
55557-16010 |
US $2.97 |
||
|
55565
|
55565
55565-22020-A1 Handle, Glove Compartment Door Lock[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55565-22020-A1 |
US $3.35 |
||
| replacement | |||||
|
55565
|
55565
55565-22020-C0
Handle, Glove Compartment Door Lock
[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55565-22020-C0 |
— | ||
|
55565
|
55565
55565-22020-B9 Handle, Glove Compartment Door Lock[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55565-22020-B9 |
US $3.35 |
||
| replacement | |||||
|
55565
|
55565
55565-22020-C0
Handle, Glove Compartment Door Lock
[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55565-22020-C0 |
— | ||
|
55568B
|
55568B
55568-24020 Plate, Glove Compartment Door Pad[09.1999 - 08.2001] JZS175 |
55568-24020 |
US $13.44 |
||
|
55569
|
55569
55569-22030-A1 Cover, Glove Compartment Door Lock[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55569-22030-A1 |
US $4.22 |
||
| replacement | |||||
|
55569
|
55569
55569-22030-C0
Cover, Glove Compartment Door Lock
[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55569-22030-C0 |
— | ||
|
55569
|
55569
55569-22030-B9 Cover, Glove Compartment Door Lock[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55569-22030-B9 |
US $4.22 |
||
| replacement | |||||
|
55569
|
55569
55569-22030-C0
Cover, Glove Compartment Door Lock
[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55569-22030-C0 |
— | ||
|
55574
|
55574
55574-10010 Shaft, Glove Compartment Door Hinge[09.1999 - 08.2001] JZS175 |
55574-10010 |
US $2.87 |
||
|
55606
|
55606
55606-30220
Cover Sub-Assy, Instrument Panel Under, No.1
[09.1999 - 08.2001] JZS175 |
55606-30220 |
— | ||
|
55607
|
55607
55607-30250 Cover Sub-Assy, Instrument Panel Under, No.2[09.1999 - 08.2001] JZS175 |
55607-30250 |
US $58.39 |
||
|
55650
|
55650
55650-30240-A0 Register Assy, Instrument Panel, No.1[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55650-30240-A0 |
US $100.46 |
||
|
55650
|
55650
55650-30240-B0 Register Assy, Instrument Panel, No.1[09.1999 - 08.2001] JZS175 MEDIUM CHARCOAL,TRIM1# |
55650-30240-B0 |
US $100.46 |
||
|
55660
|
55660
55660-30360-A0 Register Assy, Instrument Panel, No.2[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55660-30360-A0 |
US $100.46 |
||
|
55660
|
55660
55660-30360-B0 Register Assy, Instrument Panel, No.2[09.1999 - 08.2001] JZS175 MEDIUM CHARCOAL,TRIM1# |
55660-30360-B0 |
US $100.46 |
||
|
55670
|
55670
55670-30390-B0 Register Assy, Instrument Panel, No.3[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
55670-30390-B0 |
US $375.65 |
||
| replacement | |||||
|
55670
|
55670
55670-30390-C0 Register Assy, Instrument Panel, No.3[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
55670-30390-C0 |
US $375.65 |
||
|
55670
|
55670
55670-30390-E0 Register Assy, Instrument Panel, No.3[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
55670-30390-E0 |
US $375.65 |
||
| replacement | |||||
|
55670
|
55670
55670-30390-C0 Register Assy, Instrument Panel, No.3[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
55670-30390-C0 |
US $375.65 |
||
|
55680
|
55680
55680-22020-A1 Register Assy, Instrument Panel, Lower No.1[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
55680-22020-A1 |
US $26.64 |
||
|
55680
|
55680
55680-22020-B3 Register Assy, Instrument Panel, Lower No.1[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
55680-22020-B3 |
US $26.64 |
||
|
91515F0620
|
91515F0620
91515-F0620 New Genuine Part |
91515-F0620 |
US $0.52 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9016750022
|
9016750022
90167-50022 SCREW |
90167-50022 |
US $1.25 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9054103015
|
9054103015
90541-03015 Cushion, Instrument Panel Box |
90541-03015 |
from US $1.52 |
||
|
9054105020
|
9054105020
90541-05020 Cushion(For Glove Compartment) |
90541-05020 |
from US $1.38 |
||
|
9095903113
|
9095903113
90959-03113 SPRING TORSION |
90959-03113 |
US $0.70 |
||
|
9356013010
|
9356013010
93560-13010 New Genuine Part |
93560-13010 |
US $0.67 |
||
