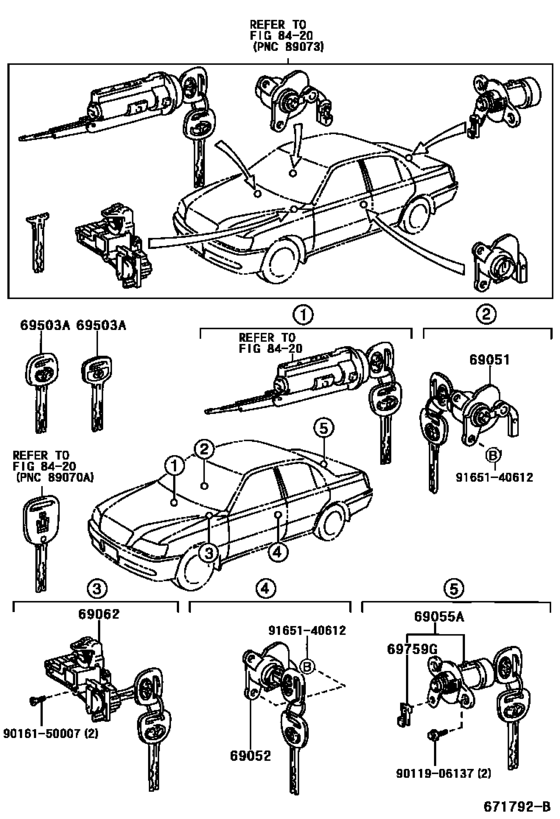

Lock Cylinder Set ([09.1999 - ] W(IMMOBILIZER) (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-30280 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [09.1999 - 08.2001] JZS175 |
69051-30280 |
US $142.69 |
||
|
69052
|
69052
69052-30240 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [09.1999 - 08.2001] JZS175 |
69052-30240 |
US $142.69 |
||
|
69055A
|
69055A
69055-30390 Cylinder & Key Set, Luggage Compartment Lock[08.2001 - 12.2003] JZS175 W(IMMOBILIZER) |
69055-30390 |
US $165.98 |
||
| replacements | |||||
|
69055A
|
69055A
69055-30400 Cylinder & Key Set, Luggage Compartment Lock[08.2001 - 12.2003] JZS175 W(IMMOBILIZER) |
69055-30400 |
US $144.14 |
||
|
69055A
|
69055A
84903-30070 Switch Sub-Assy, Door Unlock[08.2001 - 12.2003] JZS175 W(IMMOBILIZER) |
84903-30070 |
US $33.49 |
||
|
69055A
|
69055A
69055-30400 Cylinder & Key Set, Luggage Compartment Lock[08.2001 - 12.2003] JZS175 |
69055-30400 |
US $144.14 |
||
|
69055A
|
69055A
69055-51010 Cylinder & Key Set, Luggage Compartment Lock[09.1999 - 08.2001] JZS175 |
69055-51010 |
US $144.14 |
||
| replacement | |||||
|
69055A
|
69055A
69055-30400 Cylinder & Key Set, Luggage Compartment Lock[09.1999 - 08.2001] JZS175 |
69055-30400 |
US $144.14 |
||
|
69062
|
69062
69056-30230 Cylinder & Key Set, Glove Compartment Lock[09.1999 - 08.2001] JZS175 |
69056-30230 |
US $126.67 |
||
| replacement | |||||
|
69062
|
69062
69056-24080 Cylinder & Key Set, Glove Compartment Lock[09.1999 - 08.2001] JZS175 |
69056-24080 |
US $147.06 |
||
|
69503A
|
69503A
90999-00239
Key, Blank
[09.1999 - 08.2001] JZS175 MASTER KEY |
90999-00239 |
— | ||
|
69503A
|
69503A
90999-00240
Key, Blank
[09.1999 - 08.2001] JZS175 SUB KEY |
90999-00240 |
— | ||
|
69759G
|
69759G
69759-24090 Snap, Front Door Lock Control Rod[09.1999 - 08.2001] JZS175 |
69759-24090 |
US $3.23 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
US $1.25 |
||
|
9016150007
|
9016150007
90161-50007 New Genuine Part |
90161-50007 |
US $0.52 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.25 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
