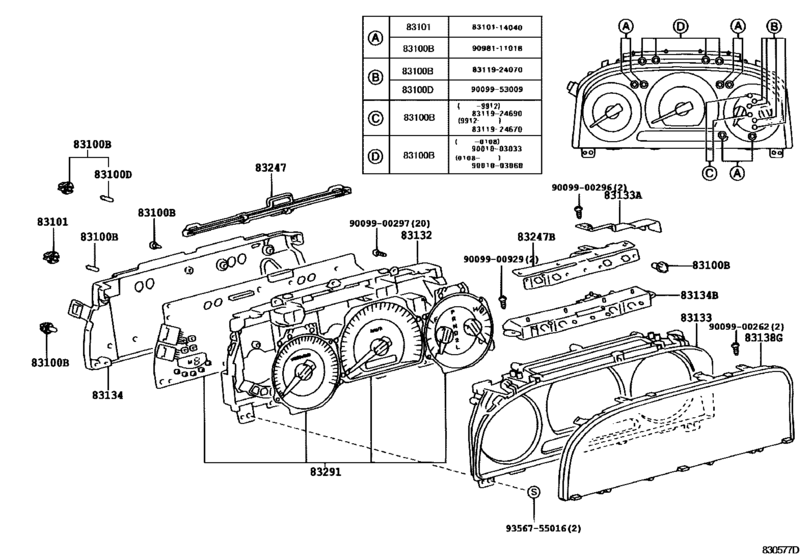

Meter ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83119-24070 Bulb, Combination Meter, No.1[09.1999 - 08.2001] JZS175 12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
83119-24070 |
US $14.69 |
||
|
83100B
|
83100B
83119-24670 Bulb, Combination Meter, No.1[12.1999 - 08.2001] JZS175 14V 1.12W W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
83119-24670 |
US $5.05 |
||
|
83100B
|
83100B
83119-24690
Bulb, Combination Meter, No.1
[09.1999 - 12.1999] JZS175 14V 0.84W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
83119-24690 |
— | ||
|
83100B
|
83100B
90010-03033
Bulb, Combination Meter, No.1
[09.1999 - 08.2001] JZS175 14V 3.0W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
90010-03033 |
— | ||
|
83100B
|
83100B
90010-03060
Bulb, Combination Meter, No.1
[08.2001 - 12.2003] JZS175 14V 3.0W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
90010-03060 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1999 - 08.2001] JZS175 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
90981-11018 |
from US $2.01 |
||
|
83100D
|
83100D
90099-53009 Bulb, Combination Meter, No.1[08.2001 - 12.2003] JZS175 14V0.84W W/O(SOCKET) |
90099-53009 |
from US $1.46 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1999 - 08.2001] JZS175 |
83101-14040 |
from US $1.40 |
||
|
83132
|
83132
83841-30830
Case, Combination Meter
[09.1999 - 08.2001] JZS175 |
83841-30830 |
— | ||
|
83132
|
83132
83841-30831
Case, Combination Meter
[08.2001 - 12.2003] JZS175 |
83841-30831 |
— | ||
|
83133
|
83133
83811-30830
Plate, Combination Meter, No.1
[09.1999 - 08.2001] JZS175 |
83811-30830 |
— | ||
|
83133
|
83133
83811-30831
Plate, Combination Meter, No.1
[08.2001 - 12.2003] JZS175 |
83811-30831 |
— | ||
|
83133A
|
83133A
83812-30830
Plate, Combination Meter, No.2
[09.1999 - 08.2001] JZS175 |
83812-30830 |
— | ||
|
83134
|
83134
83821-30830
Cover, Combination Meter, No.1
[09.1999 - 08.2001] JZS175 |
83821-30830 |
— | ||
|
83134B
|
83134B
83822-30830
Cover, Combination Meter, No.2
[09.1999 - 08.2001] JZS175 |
83822-30830 |
— | ||
|
83138G
|
83138G
83852-30830
Glass, Combination Meter
[09.1999 - 08.2001] JZS175 |
83852-30830 |
— | ||
|
83247
|
83247
83861-30830
Plate, Meter Circuit
[09.1999 - 08.2001] JZS175 |
83861-30830 |
— | ||
|
83247B
|
83247B
83862-30830
Plate, Meter Circuit, No.2
[09.1999 - 08.2001] JZS175 |
83862-30830 |
— | ||
|
83291
|
83291
83801-3A010
Computer, Combination Meter
[09.1999 - 08.2001] JZS175 |
83801-3A010 |
— | ||
|
83291
|
83291
83801-3A011
Computer, Combination Meter
[08.2001 - 12.2003] JZS175 |
83801-3A011 |
— | ||
|
9009900262
|
9009900262
90099-00262
SCREW TAPPING
|
90099-00262 |
— | ||
|
9009900296
|
9009900296
90099-00296
New Genuine Part
|
90099-00296 |
— | ||
|
9009900297
|
9009900297
90099-00297
New Genuine Part
|
90099-00297 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
