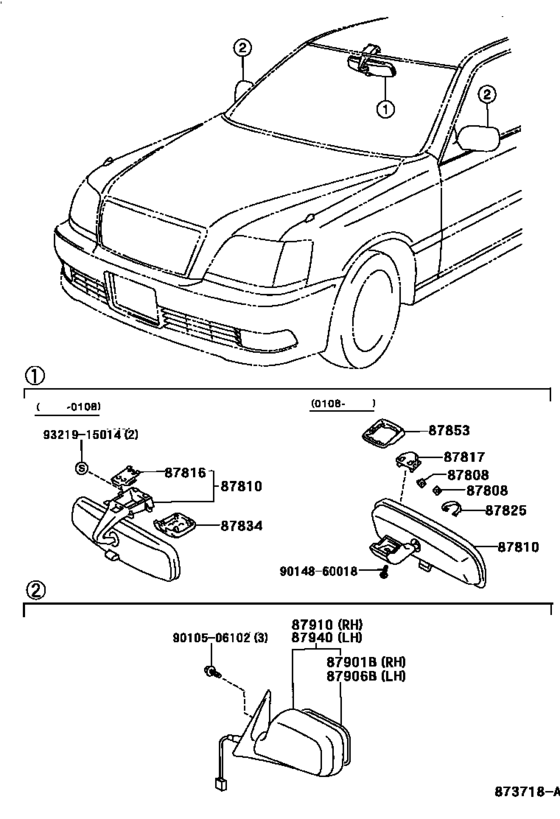

Mirror ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87808
|
87808
87808-24010 Holder Sub-Assy, Inner Mirror[08.2001 - 12.2003] JZS175 |
87808-24010 |
from US $1.92 |
||
|
87810
|
87810
87810-30260-A2 Mirror Assy, Inner Rear View[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
87810-30260-A2 |
US $110.66 |
||
| replacement | |||||
|
87810
|
87810
87810-30260-B0 Mirror Assy, Inner Rear View[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
87810-30260-B0 |
US $109.20 |
||
|
87810
|
87810
87810-30260-B4 Mirror Assy, Inner Rear View[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
87810-30260-B4 |
US $110.66 |
||
| replacement | |||||
|
87810
|
87810
87810-30260-B0 Mirror Assy, Inner Rear View[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
87810-30260-B0 |
US $109.20 |
||
|
87810
|
87810
87810-30310-A0 Mirror Assy, Inner Rear View[08.2001 - 12.2003] JZS175 IVORY,TRIM0# |
87810-30310-A0 |
US $110.66 |
||
|
87810
|
87810
87810-30310-B0 Mirror Assy, Inner Rear View[08.2001 - 12.2003] JZS175 MD.CHARCOAL,TRIM1# |
87810-30310-B0 |
US $112.11 |
||
| replacement | |||||
|
87810
|
87810
87810-30311-B0 Mirror Assy, Inner Rear View[08.2001 - 12.2003] JZS175 MD.CHARCOAL,TRIM1# |
87810-30311-B0 |
US $112.11 |
||
|
87816
|
87816
74372-30030 Spring, Inner Rear View Mirror[09.1999 - 08.2001] JZS175 |
74372-30030 |
from US $2.34 |
||
|
87817
|
87817
87817-24010 Spacer, Inner Rear View Mirror[08.2001 - 12.2003] JZS175 |
87817-24010 |
US $7.16 |
||
|
87825
|
87825
87825-24010 Spring, Inner Rear View Mirror Setting[08.2001 - 12.2003] JZS175 |
87825-24010 |
US $6.46 |
||
|
87834
|
87834
87834-30120
Cover, Inner Rear View Mirror Stay Holder
[09.1999 - 12.1999] JZS175 |
87834-30120 |
— | ||
|
87834
|
87834
87834-30120-A2 Cover, Inner Rear View Mirror Stay Holder[12.1999 - 08.2001] JZS175 IVORY,TRIM0# |
87834-30120-A2 |
US $16.89 |
||
|
87834
|
87834
87834-30120-B4 Cover, Inner Rear View Mirror Stay Holder[12.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
87834-30120-B4 |
US $16.89 |
||
|
87853
|
87853
87853-24020-A1 Base, Inner Rear View Mirror[08.2001 - 12.2003] JZS175 IVORY,TRIM0# |
87853-24020-A1 |
US $5.10 |
||
|
87853
|
87853
87853-24020-B1 Base, Inner Rear View Mirror[08.2001 - 12.2003] JZS175 MD.CHARCOAL,TRIM1# |
87853-24020-B1 |
US $5.24 |
||
|
87901B
|
87901B
87931-3A260 Mirror Sub-Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 |
87931-3A260 |
US $59.81 |
||
|
87906B
|
87906B
87961-3A170 Mirror Sub-Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 |
87961-3A170 |
US $59.81 |
||
|
87910
|
87910
87910-3A260-A0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 SUPER WHITE 2,040 |
87910-3A260-A0 |
US $665.39 |
||
| replacement | |||||
|
87910
|
87910
87910-3A350-A0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 SUPER WHITE 2,040 |
87910-3A350-A0 |
US $663.94 |
||
|
87910
|
87910
87910-3A260-A1 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 WHITE PEARL CS.,062 ,2FQ |
87910-3A260-A1 |
US $665.39 |
||
| replacement | |||||
|
87910
|
87910
87910-3A350-A1 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 WHITE PEARL CS.,062 ,2FQ |
87910-3A350-A1 |
US $662.48 |
||
|
87910
|
87910
87910-3A260-B0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 SILVER ME.,1C0 |
87910-3A260-B0 |
US $665.39 |
||
| replacement | |||||
|
87910
|
87910
87910-3A350-B0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 SILVER ME.,1C0 |
87910-3A350-B0 |
US $663.94 |
||
|
87910
|
87910
87910-3A260-C0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 BLACK,202 |
87910-3A260-C0 |
US $665.39 |
||
| replacement | |||||
|
87910
|
87910
87910-3A350-C0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 BLACK,202 |
87910-3A350-C0 |
US $663.94 |
||
|
87910
|
87910
87910-3A260-D0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 ROSE RED MC.,3M9 |
87910-3A260-D0 |
US $665.39 |
||
|
87910
|
87910
87910-3A260-G0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 BLACKISH GREEN MC.CC,6R5 |
87910-3A260-G0 |
US $665.39 |
||
| replacement | |||||
|
87910
|
87910
87910-3A350-G0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 BLACKISH GREEN MC.CC,6R5 |
87910-3A350-G0 |
US $662.48 |
||
|
87910
|
87910
87910-3A260-J0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 DK.BLUE MC.,2FR ,8L4 |
87910-3A260-J0 |
US $665.39 |
||
| replacement | |||||
|
87910
|
87910
87910-3A350-J0 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 DK.BLUE MC.,2FR ,8L4 |
87910-3A350-J0 |
US $663.94 |
||
|
87910
|
87910
87910-3A260-J1 Mirror Assy, Outer Rear View, Rh[09.1999 - 08.2001] JZS175 GRAYISH BLUE ME.,8N6 |
87910-3A260-J1 |
US $665.39 |
||
|
87910
|
87910
87910-3A350-A0 Mirror Assy, Outer Rear View, Rh[08.2001 - 12.2003] JZS175 SUPER WHITE 2,040 |
87910-3A350-A0 |
US $663.94 |
||
|
87910
|
87910
87910-3A350-A1 Mirror Assy, Outer Rear View, Rh[08.2001 - 12.2003] JZS175 WHITE PEARL CS.,062 ,2FQ |
87910-3A350-A1 |
US $662.48 |
||
|
87910
|
87910
87910-3A350-B0 Mirror Assy, Outer Rear View, Rh[08.2001 - 12.2003] JZS175 SILVER ME.,1C0 |
87910-3A350-B0 |
US $663.94 |
||
|
87910
|
87910
87910-3A350-C0 Mirror Assy, Outer Rear View, Rh[08.2001 - 12.2003] JZS175 BLACK,202 |
87910-3A350-C0 |
US $663.94 |
||
|
87910
|
87910
87910-3A350-G0 Mirror Assy, Outer Rear View, Rh[08.2001 - 12.2003] JZS175 BLACKISH GREEN MC.CC,6R5 |
87910-3A350-G0 |
US $662.48 |
||
|
87910
|
87910
87910-3A350-G1 Mirror Assy, Outer Rear View, Rh[08.2001 - 12.2003] JZS175 LT.GREEN M.M.,6S8 |
87910-3A350-G1 |
US $662.48 |
||
|
87910
|
87910
87910-3A350-J0 Mirror Assy, Outer Rear View, Rh[08.2001 - 12.2003] JZS175 DARK BLUE MC.,8P8 |
87910-3A350-J0 |
US $663.94 |
||
|
87940
|
87940
87940-3A170-A0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 SUPER WHITE 2,040 |
87940-3A170-A0 |
US $665.39 |
||
| replacement | |||||
|
87940
|
87940
87940-3A250-A0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 SUPER WHITE 2,040 |
87940-3A250-A0 |
US $663.94 |
||
|
87940
|
87940
87940-3A170-A1 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 WHITE PEARL CS.,062 ,2FQ |
87940-3A170-A1 |
US $665.39 |
||
| replacement | |||||
|
87940
|
87940
87940-3A250-A1 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 WHITE PEARL CS.,062 ,2FQ |
87940-3A250-A1 |
US $753.48 |
||
|
87940
|
87940
87940-3A170-B0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 SILVER ME.,1C0 |
87940-3A170-B0 |
US $665.39 |
||
| replacement | |||||
|
87940
|
87940
87940-3A250-B0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 SILVER ME.,1C0 |
87940-3A250-B0 |
US $627.46 |
||
|
87940
|
87940
87940-3A170-C0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 BLACK,202 |
87940-3A170-C0 |
US $665.39 |
||
| replacement | |||||
|
87940
|
87940
87940-3A250-C0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 BLACK,202 |
87940-3A250-C0 |
US $663.94 |
||
|
87940
|
87940
87940-3A170-D0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 ROSE RED MC.,3M9 |
87940-3A170-D0 |
US $665.39 |
||
|
87940
|
87940
87940-3A170-G0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 BLACKISH GREEN MC.CC,6R5 |
87940-3A170-G0 |
US $665.39 |
||
| replacement | |||||
|
87940
|
87940
87940-3A250-G0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 BLACKISH GREEN MC.CC,6R5 |
87940-3A250-G0 |
US $662.48 |
||
|
87940
|
87940
87940-3A170-J0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 DK.BLUE MC.,2FR ,8L4 |
87940-3A170-J0 |
US $665.39 |
||
| replacement | |||||
|
87940
|
87940
87940-3A250-J0 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 DK.BLUE MC.,2FR ,8L4 |
87940-3A250-J0 |
US $663.94 |
||
|
87940
|
87940
87940-3A170-J1 Mirror Assy, Outer Rear View, Lh[09.1999 - 08.2001] JZS175 GRAYISH BLUE ME.,8N6 |
87940-3A170-J1 |
US $665.39 |
||
|
87940
|
87940
87940-3A250-A0 Mirror Assy, Outer Rear View, Lh[08.2001 - 12.2003] JZS175 SUPER WHITE 2,040 |
87940-3A250-A0 |
US $663.94 |
||
|
87940
|
87940
87940-3A250-A1 Mirror Assy, Outer Rear View, Lh[08.2001 - 12.2003] JZS175 WHITE PEARL CS.,062 ,2FQ |
87940-3A250-A1 |
US $753.48 |
||
|
87940
|
87940
87940-3A250-B0 Mirror Assy, Outer Rear View, Lh[08.2001 - 12.2003] JZS175 SILVER ME.,1C0 |
87940-3A250-B0 |
US $627.46 |
||
|
87940
|
87940
87940-3A250-C0 Mirror Assy, Outer Rear View, Lh[08.2001 - 12.2003] JZS175 BLACK,202 |
87940-3A250-C0 |
US $663.94 |
||
|
87940
|
87940
87940-3A250-G0 Mirror Assy, Outer Rear View, Lh[08.2001 - 12.2003] JZS175 BLACKISH GREEN MC.CC,6R5 |
87940-3A250-G0 |
US $662.48 |
||
|
87940
|
87940
87940-3A250-G1 Mirror Assy, Outer Rear View, Lh[08.2001 - 12.2003] JZS175 LT.GREEN M.M.,6S8 |
87940-3A250-G1 |
US $662.48 |
||
|
87940
|
87940
87940-3A250-J0 Mirror Assy, Outer Rear View, Lh[08.2001 - 12.2003] JZS175 DARK BLUE MC.,8P8 |
87940-3A250-J0 |
US $663.94 |
||
|
9010506102
|
9010506102
90105-06102
Bolt, Flange
|
90105-06102 |
— | ||
| replacement | |||||
|
9010506102
|
9010506102
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.65 |
||
|
9014860018
|
9014860018
90148-60018 Screw Hex Lobular |
90148-60018 |
US $1.22 |
||
|
9321915014
|
9321915014
93219-15014 Screw, Cover Set, No.1 |
93219-15014 |
US $2.15 |
||
