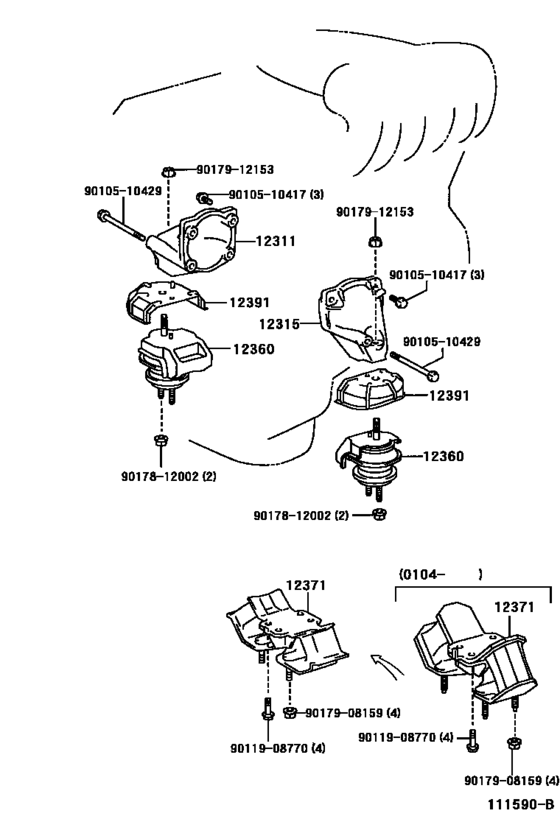

Mounting ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-46140 Bracket, Engine Mounting, Front No.1 Rh[09.1999 - 08.2001] 2JZGE..JZS175 |
12311-46140 |
US $66.92 |
||
|
12315
|
12315
12315-46120 Bracket, Engine Mounting, Front No.1 Lh[09.1999 - 08.2001] 2JZGE..JZS175 |
12315-46120 |
US $76.35 |
||
|
12360
|
12360
12360-46180 Insulator Assy, Engine Mounting, Front[09.1999 - 08.2001] 2JZGE..JZS175 |
12360-46180 |
from US $117.46 |
||
|
12371
|
12371
12371-46200 Insulator, Engine Mounting, Rear No.1[04.2001 - 08.2001] 2JZGE..JZS175 |
12371-46200 |
from US $81.24 |
||
|
12371
|
12371
12371-46210 Insulator, Engine Mounting, Rear No.1[09.1999 - 04.2001] 2JZGE..JZS175 |
12371-46210 |
US $104.83 |
||
|
12391
|
12391
12391-46020 Insulator, Engine Mounting Front, Heat, Rh[09.1999 - 03.2001] 2JZGE..JZS175 |
12391-46020 |
US $20.44 |
||
|
12391
|
12391
12391-46040 Insulator, Engine Mounting Front, Heat, Rh[03.2001 - 08.2001] 2JZGE..JZS175 |
12391-46040 |
US $21.14 |
||
|
9010510417
|
9010510417
90105-10417 Bolt (For Front Differential Carrier Cover Setting) |
90105-10417 |
US $3.05 |
||
|
9010510429
|
9010510429
90105-10429 New Genuine Part |
90105-10429 |
US $5.42 |
||
|
9011908770
|
9011908770
90119-08770 Bolt, W/washer(For Repair Actuator Set) |
90119-08770 |
US $2.69 |
||
|
9017812002
|
9017812002
90178-12002 New Genuine Part |
90178-12002 |
US $3.94 |
||
|
9017908159
|
9017908159
90179-08159 Nut, Cap(For Cylinder Head Cover) |
90179-08159 |
US $2.69 |
||
|
9017912153
|
9017912153
90179-12153 New Genuine Part |
90179-12153 |
US $3.94 |
