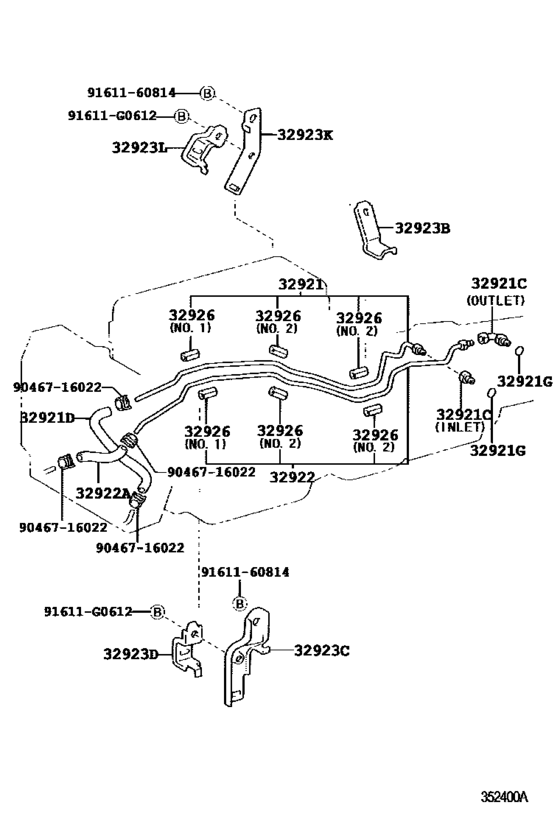

Oil Cooler & Tube (Atm) ([09.1999 - 12.2003] A340E (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-30750 Tube, Oil Cooler Inlet, No.1[09.1999 - 08.2001] JZS175 |
32921-30750 |
US $21.55 |
||
|
32921C
|
32921C
90404-16029 Union(For Oil Cooler Tube)[09.1999 - 08.2001] JZS175 INLET |
90404-16029 |
US $7.71 |
||
|
32921C
|
32921C
90407-16009 Union(For Oil Cooler Tube)[09.1999 - 08.2001] JZS175 OUTLET |
90407-16009 |
from US $6.99 |
||
|
32921D
|
32921D
90445-17095 Hose(For Oil Cooler Inlet)[09.1999 - 08.2001] JZS175 |
90445-17095 |
from US $10.91 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[09.1999 - 08.2001] JZS175 |
90301-11006 |
from US $2.43 |
||
|
32922
|
32922
32922-30750 Tube, Oil Cooler Outlet, No.1[09.1999 - 08.2001] JZS175 |
32922-30750 |
US $25.19 |
||
|
32922A
|
32922A
90445-17155 Hose(For Oil Cooler Inlet)[09.1999 - 08.2001] JZS175 |
90445-17155 |
from US $6.44 |
||
|
32923B
|
32923B
32929-51010 Clamp, Automatic Transmission Oil Cooler Tube, No.1[09.1999 - 08.2001] JZS175 |
32929-51010 |
US $6.41 |
||
|
32923C
|
32923C
32924-51010 Clamp, Automatic Transmission Oil Cooler Tube, No.4[09.1999 - 08.2001] JZS175 |
32924-51010 |
US $8.15 |
||
|
32923D
|
32923D
32929-50020 Clamp, Automatic Transmission Oil Cooler Tube, No.1[09.1999 - 08.2001] JZS175 |
32929-50020 |
US $3.49 |
||
|
32923K
|
32923K
32923-30190 Clamp, Automatic Transmission Oil Cooler Tube, No.4[09.1999 - 08.2001] JZS175 |
32923-30190 |
US $5.24 |
||
|
32923L
|
32923L
32929-50020 Clamp, Automatic Transmission Oil Cooler Tube, No.1[09.1999 - 08.2001] JZS175 |
32929-50020 |
US $3.49 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[09.1999 - 08.2001] JZS175 L=35,ID=10,NO.1 |
32926-30020 |
US $3.05 |
||
|
32926
|
32926
32926-30030 Cushion, Oil Cooler Tube(Atm)[09.1999 - 08.2001] JZS175 L=35,ID=10,NO.2 |
32926-30030 |
US $2.06 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
