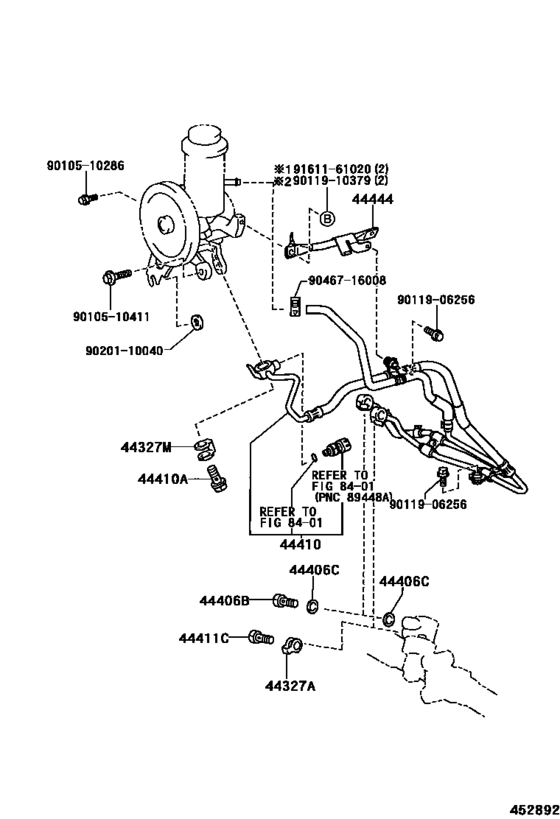

Power Steering Tube ([09.1999 - 12.2003] (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[09.1999 - 08.2001] JZS175 |
44327-30030 |
from US $1.90 |
||
|
44327M
|
44327M
44327-30040 Gasket, Pressure Port, No.1[09.1999 - 08.2001] JZS175 |
44327-30040 |
from US $1.88 |
||
|
44406B
|
44406B
90401-17005 Bolt, Union(For Return Tube)[08.2002 - 12.2003] JZS175 |
90401-17005 |
US $10.57 |
||
|
44406B
|
44406B
96341-11703 Bolt, Union(For Return Tube)[09.1999 - 08.2001] JZS175 |
96341-11703 |
US $8.01 |
||
| replacement | |||||
|
44406B
|
44406B
90401-17005 Bolt, Union(For Return Tube)[09.1999 - 08.2001] JZS175 |
90401-17005 |
US $10.57 |
||
|
44406C
|
44406C
90430-17007 Gasket(For Return Tube)[09.1999 - 08.2001] JZS175 |
90430-17007 |
US $2.33 |
||
|
44410
|
44410
44410-30500 Tube Assy, Pressure Feed[09.1999 - 08.2001] JZS175 |
44410-30500 |
US $529.98 |
||
|
44410A
|
44410A
90401-16034 Bolt, Union(For Pressure Feed Tube)[09.1999 - 08.2001] JZS175 |
90401-16034 |
from US $6.81 |
||
|
44411C
|
44411C
96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube)[09.1999 - 08.2001] JZS175 |
96341-41603 |
US $5.56 |
||
|
44444
|
44444
44444-51010 Stay, Pump, Rear[09.1999 - 08.2001] JZS175 |
44444-51010 |
US $37.56 |
||
|
9010510286
|
9010510286
90105-10286
Bolt(For Torque Arm Setting)
|
90105-10286 |
— | ||
| replacement | |||||
|
9010510286
|
9010510286
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.10 |
||
|
9010510411
|
9010510411
90105-10411 BOLT WASHER BASED |
90105-10411 |
US $2.51 |
||
|
9011906256
|
9011906256
90119-06256 BOLT |
90119-06256 |
US $1.79 |
||
|
9011910379
|
9011910379
90119-10379 Bolt, Hexagon(For Rear Caliper) |
90119-10379 |
from US $0.91 |
||
|
9020110040
|
9020110040
90201-10040 Washer, No.2 (For Center Support Bearing) |
90201-10040 |
US $4.30 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
