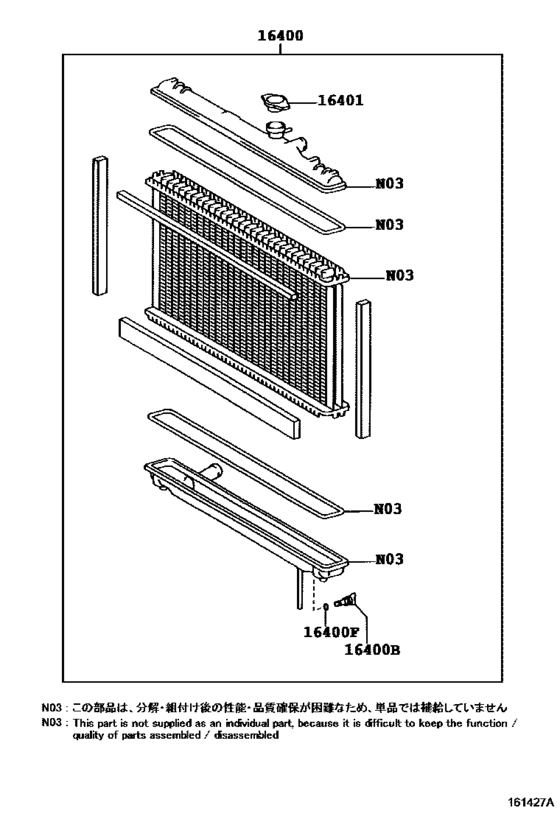

Radiator & Water Outlet ([08.2001 - ] (0108- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16400
|
16400
16400-46640 Radiator Assy[09.1999 - 08.2001] 2JZGE..JZS175 |
16400-46640 |
US $580.67 |
||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[09.1999 - 08.2001] 2JZGE..JZS175 |
23322-54010 |
from US $4.73 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[09.1999 - 08.2001] 2JZGE..JZS175 |
16492-21050 |
from US $2.13 |
||
|
16401
|
16401
16401-46610
Cap Sub-Assy, Radiator
[08.2001 - 12.2003] 2JZGE..JZS175 |
16401-46610 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-30020 Cap Sub-Assy, Radiator[08.2001 - 12.2003] 2JZGE..JZS175 |
16401-30020 |
from US $16.31 |
||
|
16401
|
16401
16401-62100
Cap Sub-Assy, Radiator
[09.1999 - 08.2001] 2JZGE..JZS175 |
16401-62100 |
— | ||
| replacements | |||||
|
16401
|
16401
16401-31520
Radiator Cap Sub-Assy (108kPa)
[09.1999 - 08.2001] 2JZGE..JZS175 |
16401-31520 |
— | ||
|
16401
|
16401
16401-36020 Cap Sub-Assy, Radiator[09.1999 - 08.2001] 2JZGE..JZS175 |
16401-36020 |
from US $16.31 |
||
