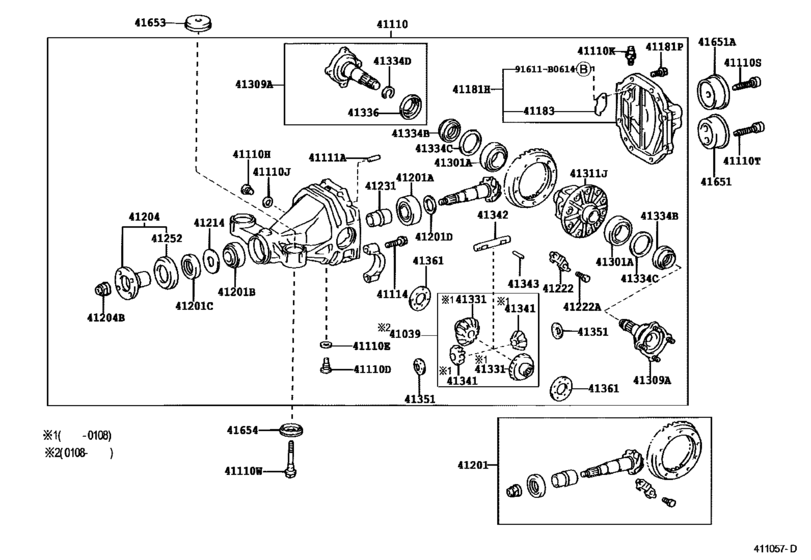

Rear Axle Housing & Differential ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41039
|
41039
41039-22010 Gear Kit, Differential[08.2001 - 10.2003] JZS175 |
41039-22010 |
US $279.55 |
||
|
41110
|
41110
41110-30860 Carrier Assy, Differential, Rear[09.1999 - 05.2000] JZS175 *FGR=43:11=3.909 |
41110-30860 |
US $3,319.68 |
||
| replacements | |||||
|
41110
|
41110
41110-30864 Carrier Assy, Differential, Rear[09.1999 - 05.2000] JZS175 *FGR=43:11=3.909 |
41110-30864 |
US $3,319.68 |
||
|
41110
|
41110
41653-30060 Stopper, Rear Differential Mount, Upper[09.1999 - 05.2000] JZS175 *FGR=43:11=3.909 |
41653-30060 |
US $7.84 |
||
|
41110
|
41110
41653-51011 Stopper, Rear Differential Mount, Upper[09.1999 - 05.2000] JZS175 *FGR=43:11=3.909 |
41653-51011 |
US $16.02 |
||
|
41110
|
41110
41654-30040
Stopper, Rear Differential Mount, Lower
[09.1999 - 05.2000] JZS175 *FGR=43:11=3.909 |
41654-30040 |
— | ||
|
41110
|
41110
90109-12081 Bolt, No.4 (For Rear Differential Carrier Set)[09.1999 - 05.2000] JZS175 *FGR=43:11=3.909 |
90109-12081 |
from US $2.93 |
||
|
41110
|
41110
12157-10010 Gasket (For Drain Plug)[09.1999 - 05.2000] JZS175 *FGR=43:11=3.909 |
12157-10010 |
from US $0.72 |
||
|
41110
|
41110
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [09.1999 - 05.2000] JZS175 *FGR=43:11=3.909 |
90341-18032 |
from US $3.76 |
||
|
41110
|
41110
41110-30861 Carrier Assy, Differential, Rear[05.2000 - 08.2001] JZS175 *FGR=43:11=3.909 |
41110-30861 |
US $3,319.68 |
||
| replacements | |||||
|
41110
|
41110
41110-30864 Carrier Assy, Differential, Rear[05.2000 - 08.2001] JZS175 *FGR=43:11=3.909 |
41110-30864 |
US $3,319.68 |
||
|
41110
|
41110
12157-10010 Gasket (For Drain Plug)[05.2000 - 08.2001] JZS175 *FGR=43:11=3.909 |
12157-10010 |
from US $0.72 |
||
|
41110
|
41110
41653-30060 Stopper, Rear Differential Mount, Upper[05.2000 - 08.2001] JZS175 *FGR=43:11=3.909 |
41653-30060 |
US $7.84 |
||
|
41110
|
41110
41653-51011 Stopper, Rear Differential Mount, Upper[05.2000 - 08.2001] JZS175 *FGR=43:11=3.909 |
41653-51011 |
US $16.02 |
||
|
41110
|
41110
41654-30040
Stopper, Rear Differential Mount, Lower
[05.2000 - 08.2001] JZS175 *FGR=43:11=3.909 |
41654-30040 |
— | ||
|
41110
|
41110
90109-12081 Bolt, No.4 (For Rear Differential Carrier Set)[05.2000 - 08.2001] JZS175 *FGR=43:11=3.909 |
90109-12081 |
from US $2.93 |
||
|
41110
|
41110
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [05.2000 - 08.2001] JZS175 *FGR=43:11=3.909 |
90341-18032 |
from US $3.76 |
||
|
41110D
|
41110D
90341-18035 Plug, No.1 (With Magnet)[09.1999 - 08.2001] JZS175 |
90341-18035 |
from US $3.36 |
||
|
41110E
|
41110E
12157-10010 Gasket (For Drain Plug)[09.1999 - 08.2001] JZS175 |
12157-10010 |
from US $0.72 |
||
|
41110H
|
41110H
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [09.1999 - 08.2001] JZS175 |
90341-18032 |
from US $3.76 |
||
|
41110J
|
41110J
12157-10010 Gasket (For Drain Plug)[09.1999 - 08.2001] JZS175 |
12157-10010 |
from US $0.72 |
||
|
41110K
|
41110K
90930-03031 Plug, Breather(For Parking Cover)[09.1999 - 08.2001] JZS175 |
90930-03031 |
from US $6.18 |
||
|
41110S
|
41110S
90110-14004
Bolt, No.2 (For Rear Differential Carrier Set)
[09.1999 - 08.2001] JZS175 |
90110-14004 |
— | ||
| replacement | |||||
|
41110S
|
41110S
90110-14006 Bolt, No.2 (For Rear Differential Carrier Set)[09.1999 - 08.2001] JZS175 |
90110-14006 |
from US $2.62 |
||
|
41110T
|
41110T
90110-14004
Bolt, No.2 (For Rear Differential Carrier Set)
[09.1999 - 08.2001] JZS175 |
90110-14004 |
— | ||
| replacement | |||||
|
41110T
|
41110T
90110-14006 Bolt, No.2 (For Rear Differential Carrier Set)[09.1999 - 08.2001] JZS175 |
90110-14006 |
from US $2.62 |
||
|
41110W
|
41110W
90901-05011 Bolt, No.1 (For Rear Differential Carrier Set)[09.1999 - 08.2001] JZS175 |
90901-05011 |
US $11.29 |
||
|
41111A
|
41111A
90250-08120 Pin, Straight, No.1[09.1999 - 08.2001] JZS175 |
90250-08120 |
from US $0.99 |
||
|
41114
|
41114
90105-12164 Bolt (For Rear Differential Carrier)[09.1999 - 08.2001] JZS175 |
90105-12164 |
US $3.03 |
||
|
41181H
|
41181H
41108-53020
Cover, Rear Differential Carrier
[05.2000 - 08.2001] JZS175 |
41108-53020 |
— | ||
| replacement | |||||
|
41181H
|
41181H
41108-53021 Cover, Rear Differential Carrier[05.2000 - 08.2001] JZS175 |
41108-53021 |
US $129.29 |
||
|
41181H
|
41181H
41181-22070 Cover, Rear Differential Carrier[09.1999 - 05.2000] JZS175 |
41181-22070 |
US $198.02 |
||
| replacement | |||||
|
41181H
|
41181H
41108-53021 Cover, Rear Differential Carrier[09.1999 - 05.2000] JZS175 |
41108-53021 |
US $129.29 |
||
|
41181P
|
41181P
90105-10117
Bolt (For Front Differential Carrier Cover Setting)
[09.1999 - 08.2001] JZS175 |
90105-10117 |
— | ||
| replacement | |||||
|
41181P
|
41181P
90105-10417 Bolt (For Front Differential Carrier Cover Setting)[09.1999 - 08.2001] JZS175 |
90105-10417 |
US $3.05 |
||
|
41181P
|
41181P
90105-10417 Bolt (For Front Differential Carrier Cover Setting)[08.2001 - 10.2003] JZS175 |
90105-10417 |
US $3.05 |
||
|
41183
|
41183
41183-53020 Deflector, Rear Differential Breather Plug Oil[05.2000 - 08.2001] JZS175 |
41183-53020 |
US $4.30 |
||
|
41201
|
41201
41201-80052
Final Gear Kit, Differential, Rear
[09.1999 - 08.2001] JZS175 *FGR=43:11=3.909 |
41201-80052 |
— | ||
| replacement | |||||
|
41201
|
41201
41201-59266
Final Gear Kit, Differential, Rear
[09.1999 - 08.2001] JZS175 *FGR=43:11=3.909 |
41201-59266 |
— | ||
|
41201A
|
41201A
90366-35087 Bearing , Tapered Roller (for front drive pinion)[09.1999 - 08.2001] JZS175 |
90366-35087 |
from US $58.80 |
||
|
41201B
|
41201B
90366-30067 Bearing (For Rear Drive Pinion Front)[09.1999 - 08.2001] JZS175 |
90366-30067 |
from US $44.56 |
||
|
41201C
|
41201C
90311-38070 Seal, Oil (For Rear Differential Carrier)[09.1999 - 08.2001] JZS175 |
90311-38070 |
from US $7.53 |
||
|
41201D
|
41201D
90201-35497 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=1.70 |
90201-35497 |
from US $2.76 |
||
|
41201D
|
41201D
90201-35498 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=1.73 |
90201-35498 |
from US $2.74 |
||
|
41201D
|
41201D
90201-35499 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=1.76 |
90201-35499 |
from US $2.72 |
||
|
41201D
|
41201D
90201-35500 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=1.79 |
90201-35500 |
from US $2.74 |
||
|
41201D
|
41201D
90201-35501 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=1.82 |
90201-35501 |
from US $2.74 |
||
|
41201D
|
41201D
90201-35502 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=1.85 |
90201-35502 |
from US $3.02 |
||
|
41201D
|
41201D
90201-35503 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=1.88 |
90201-35503 |
from US $2.85 |
||
|
41201D
|
41201D
90201-35504 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=1.91 |
90201-35504 |
US $3.23 |
||
|
41201D
|
41201D
90201-35505 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=1.94 |
90201-35505 |
US $3.23 |
||
|
41201D
|
41201D
90201-35506 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=1.97 |
90201-35506 |
US $3.23 |
||
|
41201D
|
41201D
90201-35507 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.00 |
90201-35507 |
from US $2.81 |
||
|
41201D
|
41201D
90201-35508 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.03 |
90201-35508 |
from US $2.85 |
||
|
41201D
|
41201D
90201-35509 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.06 |
90201-35509 |
from US $2.83 |
||
|
41201D
|
41201D
90201-35510 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.09 |
90201-35510 |
from US $3.23 |
||
|
41201D
|
41201D
90201-35511 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.12 |
90201-35511 |
from US $2.83 |
||
|
41201D
|
41201D
90201-35512 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.15 |
90201-35512 |
US $3.23 |
||
|
41201D
|
41201D
90201-35513 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.18 |
90201-35513 |
from US $3.08 |
||
|
41201D
|
41201D
90201-35514 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.21 |
90201-35514 |
from US $3.23 |
||
|
41201D
|
41201D
90201-35515 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.24,MARK 01 |
90201-35515 |
US $2.15 |
||
|
41201D
|
41201D
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.27,MARK 02 |
90201-35516 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.30,MARK 03 |
90201-35517 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[09.1999 - 08.2001] JZS175 T=2.33,MARK 04 |
90201-35518 |
from US $2.15 |
||
|
41204
|
41204
41204-35041 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[09.1999 - 08.2001] JZS175 |
41204-35041 |
from US $61.15 |
||
|
41204B
|
41204B
90179-20018 Nut (For Rear Drive Pinion)[09.1999 - 08.2001] JZS175 OD=37 |
90179-20018 |
from US $2.36 |
||
|
41214
|
41214
41214-26010 Slinger, Rear Differential Drive Pinion Oil[09.1999 - 08.2001] JZS175 |
41214-26010 |
from US $7.37 |
||
|
41222
|
41222
41222-22010 Plate, Rear Differential Ring Gear Set Bolt Lock[09.1999 - 08.2001] JZS175 |
41222-22010 |
US $2.15 |
||
|
41222A
|
41222A
90101-11353 Bolt (For Rear Differential Ring Gear Set)[09.1999 - 08.2001] JZS175 |
90101-11353 |
from US $0.87 |
||
|
41231
|
41231
41231-24010 Spacer, Rear Differential Drive Pinion Bearing[09.1999 - 08.2001] JZS175 |
41231-24010 |
from US $11.47 |
||
|
41252
|
41252
41252-35020 Deflector, Dust (For Rear Differential)[09.1999 - 08.2001] JZS175 |
41252-35020 |
from US $7.54 |
||
|
41301A
|
41301A
90366-50001 Bearing(For Rear Differential Case)[09.1999 - 08.2001] JZS175 |
90366-50001 |
from US $46.66 |
||
|
41309A
|
41309A
41309-30030
Shaft Sub-Assy, Rear Differential Side Gear
[09.1999 - 08.2001] JZS175 |
41309-30030 |
— | ||
|
41311J
|
41311J
41311-22080 Case Sub-Assy, Rear Differential[09.1999 - 08.2001] JZS175 |
41311-22080 |
US $388.75 |
||
|
41331
|
41331
41331-22060
Gear, Rear Differential Side
[09.1999 - 08.2001] JZS175 |
41331-22060 |
— | ||
|
41334B
|
41334B
90311-43001
Seal, Oil (For Rear Differential Side Gear Shaft)
[09.1999 - 08.2001] JZS175 |
90311-43001 |
— | ||
| replacement | |||||
|
41334B
|
41334B
90311-43009 Seal, Oil (For Rear Differential Side Gear Shaft)[09.1999 - 08.2001] JZS175 |
90311-43009 |
from US $9.68 |
||
|
41334C
|
41334C
90201-52001 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.58,MARK 01 |
90201-52001 |
from US $4.37 |
||
|
41334C
|
41334C
90201-52003 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.64,MARK 03 |
90201-52003 |
US $6.99 |
||
|
41334C
|
41334C
90201-52005 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.70,MARK 05 |
90201-52005 |
US $8.06 |
||
|
41334C
|
41334C
90201-52007 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.76,MARK 07 |
90201-52007 |
US $8.06 |
||
|
41334C
|
41334C
90201-52009 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.82,MARK 09 |
90201-52009 |
US $8.06 |
||
|
41334C
|
41334C
90201-52011 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.88,MARK 11 |
90201-52011 |
US $8.06 |
||
|
41334C
|
41334C
90201-52013 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.94,MARK 13 |
90201-52013 |
US $8.06 |
||
|
41334C
|
41334C
90201-52015 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.00,MARK 15 |
90201-52015 |
US $8.06 |
||
|
41334C
|
41334C
90201-52017 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.06,MARK 17 |
90201-52017 |
US $8.06 |
||
|
41334C
|
41334C
90201-52019 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.12,MARK 19 |
90201-52019 |
US $8.06 |
||
|
41334C
|
41334C
90201-52021 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.18,MARK 21 |
90201-52021 |
US $8.06 |
||
|
41334C
|
41334C
90201-52023 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.24,MARK 23 |
90201-52023 |
US $8.06 |
||
|
41334C
|
41334C
90201-52025 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.30,MARK 25 |
90201-52025 |
US $8.06 |
||
|
41334C
|
41334C
90201-52027 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.36,MARK 27 |
90201-52027 |
US $8.06 |
||
|
41334C
|
41334C
90201-52029 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.42,MARK 29 |
90201-52029 |
US $8.06 |
||
|
41334C
|
41334C
90201-52031 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.48,MARK 31 |
90201-52031 |
US $8.06 |
||
|
41334C
|
41334C
90564-46014 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.60,MARK 32 |
90564-46014 |
US $8.24 |
||
|
41334C
|
41334C
90564-46015 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.62,MARK 33 |
90564-46015 |
US $5.73 |
||
|
41334C
|
41334C
90564-46016 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.66,MARK 34 |
90564-46016 |
US $5.73 |
||
|
41334C
|
41334C
90564-46017 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.68,MARK 35 |
90564-46017 |
US $5.73 |
||
|
41334C
|
41334C
90564-46018 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.72,MARK 36 |
90564-46018 |
US $6.63 |
||
|
41334C
|
41334C
90564-46019 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.74,MARK 37 |
90564-46019 |
US $6.63 |
||
|
41334C
|
41334C
90564-46020 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.78,MARK 38 |
90564-46020 |
US $6.63 |
||
|
41334C
|
41334C
90564-46021 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.80,MARK 39 |
90564-46021 |
US $6.63 |
||
|
41334C
|
41334C
90564-46022 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.84,MARK 40 |
90564-46022 |
US $6.63 |
||
|
41334C
|
41334C
90564-46023 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.86,MARK 41 |
90564-46023 |
US $6.63 |
||
|
41334C
|
41334C
90564-46024 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.90,MARK 42 |
90564-46024 |
US $6.63 |
||
|
41334C
|
41334C
90564-46025 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.92,MARK 43 |
90564-46025 |
US $6.63 |
||
|
41334C
|
41334C
90564-46026 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.96,MARK 44 |
90564-46026 |
US $6.63 |
||
|
41334C
|
41334C
90564-46027 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=2.98,MARK 45 |
90564-46027 |
US $6.63 |
||
|
41334C
|
41334C
90564-46028 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.02,MARK 46 |
90564-46028 |
US $6.63 |
||
|
41334C
|
41334C
90564-46029 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.04,MARK 47 |
90564-46029 |
US $6.63 |
||
|
41334C
|
41334C
90564-46030 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.08,MARK 48 |
90564-46030 |
US $6.63 |
||
|
41334C
|
41334C
90564-46031 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.10,MARK 49 |
90564-46031 |
US $6.63 |
||
|
41334C
|
41334C
90564-46032 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.14,MARK 50 |
90564-46032 |
US $6.63 |
||
|
41334C
|
41334C
90564-46033 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.16,MARK 51 |
90564-46033 |
US $6.63 |
||
|
41334C
|
41334C
90564-46034 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.20,MARK 52 |
90564-46034 |
US $6.63 |
||
|
41334C
|
41334C
90564-46035 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.22,MARK 53 |
90564-46035 |
US $6.63 |
||
|
41334C
|
41334C
90564-46036 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.26,MARK 54 |
90564-46036 |
US $6.63 |
||
|
41334C
|
41334C
90564-46037 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.28,MARK 55 |
90564-46037 |
US $6.63 |
||
|
41334C
|
41334C
90564-46038 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.32,MARK 56 |
90564-46038 |
US $6.63 |
||
|
41334C
|
41334C
90564-46039 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.34,MARK 57 |
90564-46039 |
US $6.63 |
||
|
41334C
|
41334C
90564-46040 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.38,MARK 58 |
90564-46040 |
US $6.63 |
||
|
41334C
|
41334C
90564-46041 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.40,MARK 59 |
90564-46041 |
US $6.63 |
||
|
41334C
|
41334C
90564-46042 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.44,MARK 60 |
90564-46042 |
US $6.63 |
||
|
41334C
|
41334C
90564-46043 Washer, Plate (For Front Differential Case)[09.1999 - 08.2001] JZS175 T=3.46,MARK 61 |
90564-46043 |
US $6.63 |
||
|
41334D
|
41334D
90521-34003 Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft)[09.1999 - 08.2001] JZS175 |
90521-34003 |
from US $1.75 |
||
|
41336
|
41336
41336-24010 Cover, Dust(For Rear Differential Side Gear Shaft)[09.1999 - 08.2001] JZS175 |
41336-24010 |
US $7.88 |
||
|
41341
|
41341
41341-30040
Pinion, Rear Differential
[09.1999 - 08.2001] JZS175 |
41341-30040 |
— | ||
|
41342
|
41342
41342-22030 Shaft, Rear Differential Pinion[09.1999 - 08.2001] JZS175 |
41342-22030 |
US $10.83 |
||
|
41343
|
41343
90250-06058 Pin, Straight(For Timing Gear Case)[09.1999 - 08.2001] JZS175 |
90250-06058 |
from US $2.03 |
||
|
41351
|
41351
41351-30052 Washer, Rear Differential Pinion Thrust[09.1999 - 08.2001] JZS175 |
41351-30052 |
from US $1.44 |
||
|
41361
|
41361
41361-40021 Washer, Rear Differential Side Gear Thrust, No.1[09.1999 - 08.2001] JZS175 T=1.6 |
41361-40021 |
from US $6.81 |
||
|
41361
|
41361
41362-40021 Washer, Rear Differential Side Gear Thrust, No.1[09.1999 - 08.2001] JZS175 T=1.7 |
41362-40021 |
US $6.81 |
||
|
41361
|
41361
41363-40021 Washer, Rear Differential Side Gear Thrust, No.1[09.1999 - 08.2001] JZS175 T=1.8 |
41363-40021 |
from US $6.81 |
||
|
41651
|
41651
41651-30060 Cushion, Rear Differential Mount, No.1[09.1999 - 08.2001] JZS175 |
41651-30060 |
from US $38.95 |
||
|
41651A
|
41651A
41651-30070 Cushion, Rear Differential Mount, No.2[09.1999 - 08.2001] JZS175 |
41651-30070 |
from US $49.21 |
||
|
41653
|
41653
41653-51010 Stopper, Rear Differential Mount, Upper[09.1999 - 08.2001] JZS175 H=12.7 |
41653-51010 |
US $14.13 |
||
|
41654
|
41654
41654-22010 Stopper, Rear Differential Mount, Lower[09.1999 - 08.2001] JZS175 |
41654-22010 |
from US $14.71 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
