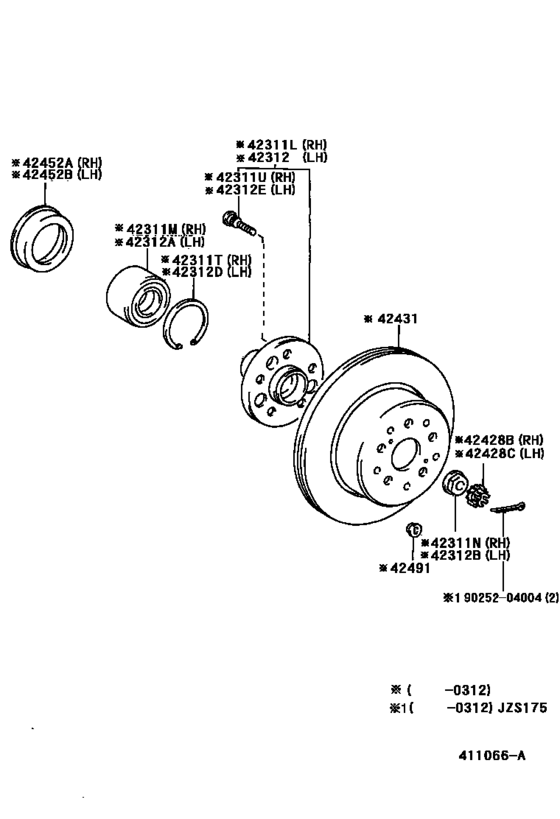

Rear Axle Shaft & Hub ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311L
|
42311L
42301-30040 Shaft, Rear Axle, Rh[09.1999 - 08.2001] JZS175 |
42301-30040 |
US $246.40 |
||
|
42311M
|
42311M
90369-49002 Bearing (For Rear Axle Shaft)[09.1999 - 08.2001] JZS175 |
90369-49002 |
from US $81.97 |
||
|
42311N
|
42311N
90179-26006 Nut (For Rear Axle Shaft)[09.1999 - 08.2001] JZS175 |
90179-26006 |
from US $2.96 |
||
|
42311T
|
42311T
90520-77001 Ring, Snap[09.1999 - 08.2001] JZS175 |
90520-77001 |
from US $2.89 |
||
|
42311U
|
42311U
90942-02070
Bolt, Hub
[09.1999 - 08.2001] JZS175 |
90942-02070 |
— | ||
| replacements | |||||
|
42311U
|
42311U
90942-02049 Bolt, Hub[09.1999 - 08.2001] JZS175 |
90942-02049 |
US $4.30 |
||
|
42311U
|
42311U
90942-02082 Bolt, Hub[09.1999 - 08.2001] JZS175 |
90942-02082 |
from US $2.26 |
||
|
42312
|
42312
42301-30040 Shaft, Rear Axle, Rh[09.1999 - 08.2001] JZS175 |
42301-30040 |
US $246.40 |
||
|
42312A
|
42312A
90369-49002 Bearing (For Rear Axle Shaft)[09.1999 - 08.2001] JZS175 |
90369-49002 |
from US $81.97 |
||
|
42312B
|
42312B
90179-26006 Nut (For Rear Axle Shaft)[09.1999 - 08.2001] JZS175 |
90179-26006 |
from US $2.96 |
||
|
42312D
|
42312D
90520-77001 Ring, Snap[09.1999 - 08.2001] JZS175 |
90520-77001 |
from US $2.89 |
||
|
42312E
|
42312E
90942-02070
Bolt, Hub
[09.1999 - 08.2001] JZS175 |
90942-02070 |
— | ||
| replacements | |||||
|
42312E
|
42312E
90942-02049 Bolt, Hub[09.1999 - 08.2001] JZS175 |
90942-02049 |
US $4.30 |
||
|
42312E
|
42312E
90942-02082 Bolt, Hub[09.1999 - 08.2001] JZS175 |
90942-02082 |
from US $2.26 |
||
|
42428B
|
42428B
42428-24010 Plate, Rear Axle Lock Nut[09.1999 - 08.2001] JZS175 |
42428-24010 |
from US $7.24 |
||
|
42428C
|
42428C
42428-24010 Plate, Rear Axle Lock Nut[09.1999 - 08.2001] JZS175 |
42428-24010 |
from US $7.24 |
||
|
42431
|
42431
42431-51010 Disc, Rear[09.1999 - 08.2001] JZS175 |
42431-51010 |
US $177.60 |
||
|
42452A
|
42452A
42451-30010 Deflecter, Rear Wheel Bearing Dust, No.2 Rh[09.1999 - 08.2001] JZS175 |
42451-30010 |
from US $16.13 |
||
|
42452B
|
42452B
42451-30010 Deflecter, Rear Wheel Bearing Dust, No.2 Rh[09.1999 - 08.2001] JZS175 |
42451-30010 |
from US $16.13 |
||
|
42491
|
42491
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[09.1999 - 08.2001] JZS175 |
47491-22020 |
from US $1.77 |
||
|
9025204004
|
9025204004
90252-04004 PIN COTTER |
90252-04004 |
from US $0.78 |
||
