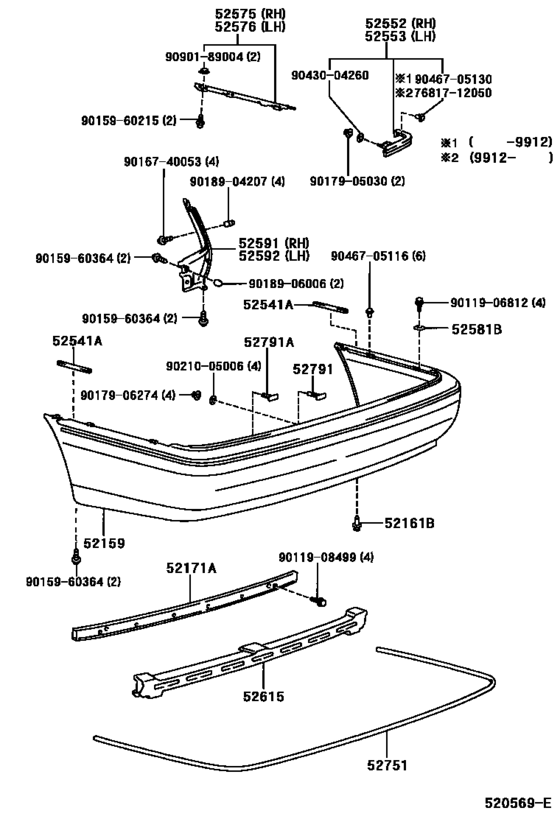

Rear Bumper & Bumper Stay ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52159
|
52159
52159-30927 Cover, Rear Bumper[09.1999 - 08.2001] JZS175 |
52159-30927 |
US $1,020.24 |
||
|
52161B
|
52161B
52161-16010 Clip[09.1999 - 08.2001] JZS175 |
52161-16010 |
from US $1.67 |
||
| replacements | |||||
|
52161B
|
52161B
52161-0K040 Clip[09.1999 - 08.2001] JZS175 |
52161-0K040 |
from US $1.46 |
||
|
52161B
|
52161B
52161-02020 Clip[09.1999 - 08.2001] JZS175 |
52161-02020 |
US $5.27 |
||
|
52171A
|
52171A
52171-30200 Reinforcement, Rear Bumper, No.1[09.1999 - 08.2001] JZS175 |
52171-30200 |
US $242.08 |
||
|
52541A
|
52541A
52541-51010 Protector, Front Bumper[09.1999 - 08.2001] JZS175 |
52541-51010 |
US $2.87 |
||
|
52552
|
52552
52552-30130-A0 Filler, Rear Bumper, Rh[09.1999 - 08.2001] JZS175 SUPER WHITE 2,040 |
52552-30130-A0 |
US $15.29 |
||
|
52552
|
52552
52552-30130-A1 Filler, Rear Bumper, Rh[09.1999 - 08.2001] JZS175 WHITE PEARL CS.,062 ,2FQ |
52552-30130-A1 |
US $15.14 |
||
|
52552
|
52552
52552-30130-B0 Filler, Rear Bumper, Rh[09.1999 - 08.2001] JZS175 SILVER ME.,1C0 |
52552-30130-B0 |
US $15.29 |
||
|
52552
|
52552
52552-30130-C0 Filler, Rear Bumper, Rh[09.1999 - 08.2001] JZS175 BLACK,202 |
52552-30130-C0 |
US $15.29 |
||
|
52552
|
52552
52552-30130-D0 Filler, Rear Bumper, Rh[09.1999 - 08.2001] JZS175 ROSE RED MC.,3M9 |
52552-30130-D0 |
US $15.14 |
||
|
52552
|
52552
52552-30130-G0 Filler, Rear Bumper, Rh[09.1999 - 08.2001] JZS175 BLACKISH GREEN MC.CC,6R5 |
52552-30130-G0 |
US $15.14 |
||
|
52552
|
52552
52552-30130-G1 Filler, Rear Bumper, Rh[08.2001 - 12.2003] JZS175 LT.GREEN M.M.,6S8 |
52552-30130-G1 |
US $15.14 |
||
|
52552
|
52552
52552-30130-J0 Filler, Rear Bumper, Rh[09.1999 - 08.2001] JZS175 DK.BLUE MC.,2FR ,8L4 |
52552-30130-J0 |
US $15.14 |
||
| replacement | |||||
|
52552
|
52552
52552-30130-J2 Filler, Rear Bumper, Rh[09.1999 - 08.2001] JZS175 DK.BLUE MC.,2FR ,8L4 |
52552-30130-J2 |
from US $15.29 |
||
|
52552
|
52552
52552-30130-J1 Filler, Rear Bumper, Rh[09.1999 - 08.2001] JZS175 GRAYISH BLUE ME.,8N6 |
52552-30130-J1 |
US $15.14 |
||
|
52552
|
52552
52552-30130-J2 Filler, Rear Bumper, Rh[08.2001 - 12.2003] JZS175 DARK BLUE MC.,8P8 |
52552-30130-J2 |
from US $15.29 |
||
|
52553
|
52553
52553-30130-A0 Filler, Rear Bumper, Lh[09.1999 - 08.2001] JZS175 SUPER WHITE 2,040 |
52553-30130-A0 |
US $15.29 |
||
|
52553
|
52553
52553-30130-A1 Filler, Rear Bumper, Lh[09.1999 - 08.2001] JZS175 WHITE PEARL CS.,062 ,2FQ |
52553-30130-A1 |
US $15.14 |
||
|
52553
|
52553
52553-30130-B0 Filler, Rear Bumper, Lh[09.1999 - 08.2001] JZS175 SILVER ME.,1C0 |
52553-30130-B0 |
US $15.29 |
||
|
52553
|
52553
52553-30130-C0 Filler, Rear Bumper, Lh[09.1999 - 08.2001] JZS175 BLACK,202 |
52553-30130-C0 |
US $15.29 |
||
|
52553
|
52553
52553-30130-D0 Filler, Rear Bumper, Lh[09.1999 - 08.2001] JZS175 ROSE RED MC.,3M9 |
52553-30130-D0 |
US $15.14 |
||
|
52553
|
52553
52553-30130-G0 Filler, Rear Bumper, Lh[09.1999 - 08.2001] JZS175 BLACKISH GREEN MC.CC,6R5 |
52553-30130-G0 |
US $15.14 |
||
|
52553
|
52553
52553-30130-G1 Filler, Rear Bumper, Lh[08.2001 - 12.2003] JZS175 LT.GREEN M.M.,6S8 |
52553-30130-G1 |
US $15.14 |
||
|
52553
|
52553
52553-30130-J0 Filler, Rear Bumper, Lh[09.1999 - 08.2001] JZS175 DK.BLUE MC.,2FR ,8L4 |
52553-30130-J0 |
US $15.14 |
||
| replacement | |||||
|
52553
|
52553
52553-30130-J2 Filler, Rear Bumper, Lh[09.1999 - 08.2001] JZS175 DK.BLUE MC.,2FR ,8L4 |
52553-30130-J2 |
US $15.29 |
||
|
52553
|
52553
52553-30130-J1 Filler, Rear Bumper, Lh[09.1999 - 08.2001] JZS175 GRAYISH BLUE ME.,8N6 |
52553-30130-J1 |
US $15.14 |
||
|
52553
|
52553
52553-30130-J2 Filler, Rear Bumper, Lh[08.2001 - 12.2003] JZS175 DARK BLUE MC.,8P8 |
52553-30130-J2 |
US $15.29 |
||
|
52575
|
52575
52575-30170 Retainer, Rear Bumper Side, Rh[09.1999 - 08.2001] JZS175 |
52575-30170 |
US $27.22 |
||
|
52576
|
52576
52576-30140 Retainer, Rear Bumper Side, Lh[09.1999 - 08.2001] JZS175 |
52576-30140 |
US $27.22 |
||
|
52581B
|
52581B
52581-51010 Protector, Rear Bumper, Rh[09.1999 - 08.2001] JZS175 |
52581-51010 |
US $6.45 |
||
|
52591
|
52591
52591-30010 Seal, Rear Bumper Side, Rh[09.1999 - 08.2001] JZS175 |
52591-30010 |
US $26.70 |
||
|
52592
|
52592
52592-30010 Seal, Rear Bumper Side, Lh[09.1999 - 08.2001] JZS175 |
52592-30010 |
US $26.70 |
||
|
52615
|
52615
52615-30220 Absorber, Rear Bumper Energy[09.1999 - 08.2001] JZS175 |
52615-30220 |
US $130.68 |
||
|
52751
|
52751
52751-30160 Moulding, Rear Bumper[09.1999 - 08.2001] JZS175 |
52751-30160 |
US $101.68 |
||
|
52791
|
52791
52791-12040 Bolt, Bumper Moulding Set, No.1[05.2000 - 08.2001] JZS175 |
52791-12040 |
from US $1.24 |
||
|
52791
|
52791
52791-32010 Bolt, Bumper Moulding Set, No.1[09.1999 - 05.2000] JZS175 |
52791-32010 |
US $2.87 |
||
|
52791A
|
52791A
52791-33010 Bolt, Bumper Moulding Set, No.1[09.1999 - 05.2000] JZS175 |
52791-33010 |
US $2.87 |
||
|
52791A
|
52791A
90109-06354 Bolt, Bumper Moulding Set, No.1[05.2000 - 08.2001] JZS175 |
90109-06354 |
from US $0.76 |
||
|
7681712050
|
7681712050
76817-12050 Clip, Luggage Compartment Door Moulding |
76817-12050 |
from US $1.52 |
||
|
9011906812
|
9011906812
90119-06812 BOLT WWASHER |
90119-06812 |
US $1.61 |
||
|
9011908499
|
9011908499
90119-08499 Bolt |
90119-08499 |
US $2.87 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.10 |
||
|
9015960364
|
9015960364
90159-60364 SCREW WWASHER |
90159-60364 |
from US $0.76 |
||
|
9016740053
|
9016740053
90167-40053
SCREW PAN TAPPING
|
90167-40053 |
— | ||
| replacement | |||||
|
9016740053
|
9016740053
90167-40045 SCREW |
90167-40045 |
from US $0.80 |
||
|
9017905030
|
9017905030
90179-05030 NUT |
90179-05030 |
US $2.15 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9018904207
|
9018904207
90189-04207 GROMMET, SCREW |
90189-04207 |
from US $0.74 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.95 |
||
|
9021005006
|
9021005006
90210-05006 WASHER SEAL |
90210-05006 |
from US $0.76 |
||
|
9043004260
|
9043004260
90430-04260 GASKET |
90430-04260 |
from US $0.82 |
||
|
9046705116
|
9046705116
90467-05116 CLIP |
90467-05116 |
from US $1.60 |
||
|
9046705130
|
9046705130
90467-05130 New Genuine Part |
90467-05130 |
US $2.33 |
||
|
9090189004
|
9090189004
90901-89004 GROMMET SCREW |
90901-89004 |
US $6.45 |
||
