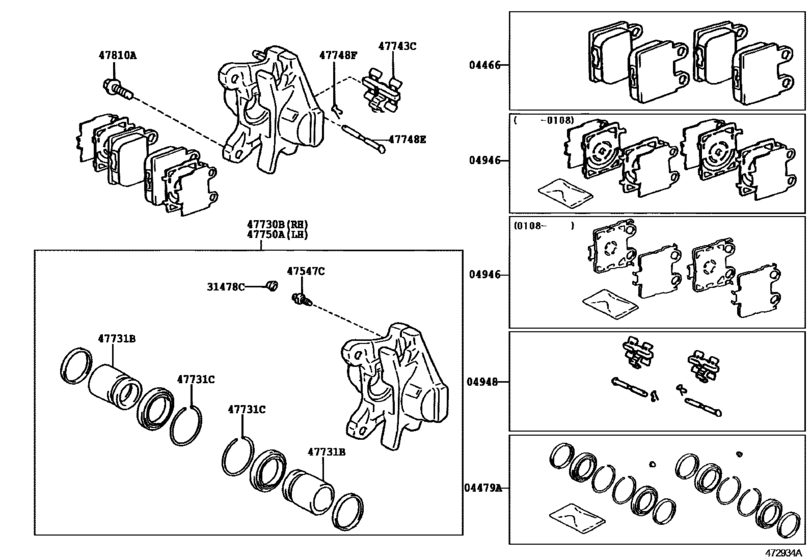

Rear Disc Brake Caliper & Dust Cover ([09.1999 - 12.2003] (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-22180 Pad Kit, Disc Brake, Rear[09.2002 - 12.2003] JZS175 MARK AK PA561 |
04466-22180 |
from US $60.14 |
||
|
04466
|
04466
04466-30150 Pad Kit, Disc Brake, Rear[09.1999 - 02.2000] JZS175 MARK AK PA544 |
04466-30150 |
US $106.29 |
||
| replacement | |||||
|
04466
|
04466
04466-30151 Pad Kit, Disc Brake, Rear[09.1999 - 02.2000] JZS175 MARK AK PA544 |
04466-30151 |
from US $58.92 |
||
|
04466
|
04466
04466-30151 Pad Kit, Disc Brake, Rear[02.2000 - 08.2001] JZS175 MARK AK PA544 |
04466-30151 |
from US $58.92 |
||
|
04466
|
04466
04466-51011 Pad Kit, Disc Brake, Rear[01.2002 - 09.2002] JZS175 MARK AK PA544 |
04466-51011 |
from US $58.25 |
||
|
04479A
|
04479A
04479-30231 Cylinder Kit, Disc Brake, Rear[09.1999 - 08.2001] JZS175 |
04479-30231 |
US $42.50 |
||
|
04946
|
04946
04946-30071 Shim Kit, Anti Squeal(For Rear Disc Brake)[09.1999 - 08.2001] JZS175 |
04946-30071 |
US $35.45 |
||
|
04946
|
04946
04946-53010 Shim Kit, Anti Squeal(For Rear Disc Brake)[08.2001 - 12.2003] JZS175 |
04946-53010 |
US $19.15 |
||
|
04948
|
04948
04948-30071 Fitting Kit, Disc Brake, Rear[09.1999 - 08.2001] JZS175 |
04948-30071 |
from US $28.06 |
||
|
31478C
|
31478C
31478-30010 Bleeder Plug Cap[09.1999 - 08.2001] JZS175 |
31478-30010 |
from US $1.48 |
||
|
47547C
|
47547C
47547-27030 Plug, Bleeder(For Front Disc Brake)[08.2001 - 12.2003] JZS175 |
47547-27030 |
from US $3.02 |
||
|
47730B
|
47730B
47730-30480 Cylinder Assy, Rear Disc Brake, Rh[09.1999 - 08.2001] JZS175 |
47730-30480 |
US $590.30 |
||
|
47731B
|
47731B
47731-30190 Piston, Rear Disc Brake[08.2001 - 12.2003] JZS175 |
47731-30190 |
US $24.86 |
||
|
47731C
|
47731C
90520-52006 Ring, Set(For Disc Brake Piston)[08.2001 - 12.2003] JZS175 |
90520-52006 |
US $1.14 |
||
|
47743C
|
47743C
47743-30030 Spring, Anti-Squeal(For Rear Disc Brake)[09.1999 - 08.2001] JZS175 |
47743-30030 |
from US $6.06 |
||
|
47748E
|
47748E
47735-30011 Pin, W/hole(For Rear Disc Brake)[09.1999 - 08.2001] JZS175 |
47735-30011 |
US $12.19 |
||
|
47748F
|
47748F
90468-12028 Clip(For Rear Disc Brake)[09.1999 - 08.2001] JZS175 |
90468-12028 |
US $1.97 |
||
|
47750A
|
47750A
47750-30480 Cylinder Assy, Disc Brake, Rear Lh[09.1999 - 08.2001] JZS175 |
47750-30480 |
US $590.30 |
||
|
47810A
|
47810A
90105-12174 Bolt, Hexagon(For Rear Caliper)[09.1999 - 08.2001] JZS175 |
90105-12174 |
from US $1.37 |
||
