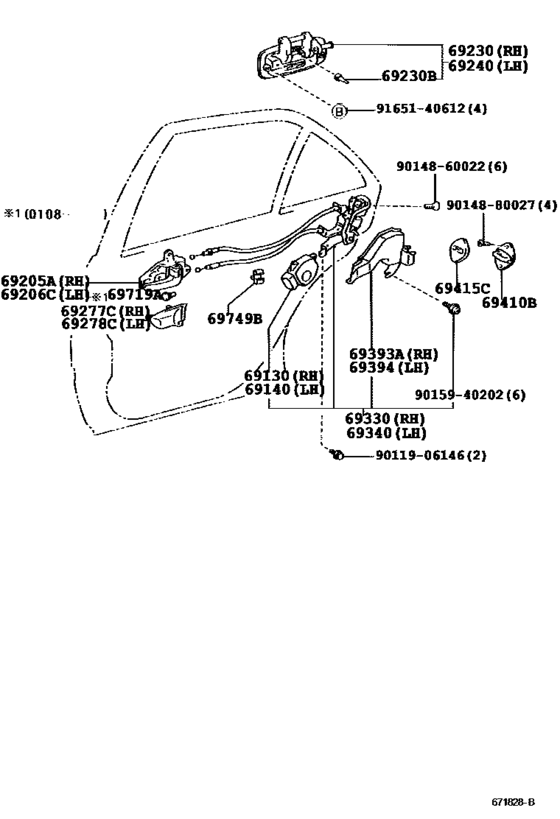

Rear Door Lock & Handle ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69130
|
69130
69130-51010 Actuator Assy, Rear Door Lock, Rh[09.1999 - 08.2001] JZS175 |
69130-51010 |
US $113.16 |
||
|
69140
|
69140
69140-51010 Actuator Assy, Rear Door Lock, Lh[09.1999 - 08.2001] JZS175 |
69140-51010 |
US $109.56 |
||
|
69205A
|
69205A
69205-30140-B0 Handle Sub-Assy, Front Door Inside, Rh[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
69205-30140-B0 |
US $40.91 |
||
|
69205A
|
69205A
69205-30140-E0 Handle Sub-Assy, Front Door Inside, Rh[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
69205-30140-E0 |
US $40.91 |
||
|
69206C
|
69206C
69206-30140-B0 Handle Sub-Assy, Front Door Inside, Lh[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
69206-30140-B0 |
US $40.91 |
||
|
69206C
|
69206C
69206-30140-E0 Handle Sub-Assy, Front Door Inside, Lh[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
69206-30140-E0 |
US $40.91 |
||
|
69230
|
69230
69230-30210 Handle Assy, Rear Door Outside, Rh[09.1999 - 08.2001] JZS175 |
69230-30210 |
US $115.53 |
||
|
69230B
|
69230B
90541-04018 Cushion(For Front Door Inside Handle)[09.1999 - 08.2001] JZS175 |
90541-04018 |
US $2.87 |
||
|
69240
|
69240
69240-30210 Handle Assy, Rear Door Outside, Lh[09.1999 - 08.2001] JZS175 |
69240-30210 |
US $115.53 |
||
|
69277C
|
69277C
69297-30030-B0 Bezel, Front Door Inside Handle, Rh[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
69297-30030-B0 |
US $4.80 |
||
|
69277C
|
69277C
69297-30030-E0 Bezel, Front Door Inside Handle, Rh[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
69297-30030-E0 |
US $4.80 |
||
|
69278C
|
69278C
69298-30030-B0 Bezel, Front Door Inside Handle, Lh[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
69298-30030-B0 |
US $4.80 |
||
|
69278C
|
69278C
69298-30030-E0 Bezel, Front Door Inside Handle, Lh[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
69298-30030-E0 |
US $4.80 |
||
|
69330
|
69330
69050-30450 Lock Assy, Rear Door, Rh[09.1999 - 08.2001] JZS175 |
69050-30450 |
US $215.49 |
||
|
69340
|
69340
69060-30490 Lock Assy, Rear Door, Lh[09.1999 - 08.2001] JZS175 |
69060-30490 |
US $215.49 |
||
|
69393A
|
69393A
69393-30040 Cover, Rear Door Lock, Outer Rh[09.1999 - 08.2001] JZS175 |
69393-30040 |
US $14.56 |
||
|
69394
|
69394
69394-30040 Cover, Rear Door Lock, Outer Lh[09.1999 - 08.2001] JZS175 |
69394-30040 |
US $14.56 |
||
|
69410B
|
69410B
69410-51010 Plate Assy, Front Door Lock Striker[09.1999 - 08.2001] JZS175 |
69410-51010 |
US $28.06 |
||
|
69415C
|
69415C
69415-30020 Cover, Door Lock Striker, Front[09.1999 - 08.2001] JZS175 |
69415-30020 |
US $9.32 |
||
|
69719A
|
69719A
69719-30010 Cushion, Door Lock Control[08.2001 - 12.2003] JZS175 |
69719-30010 |
US $1.31 |
||
|
69749B
|
69749B
69749-30050 Clamp, Front Door Lock Link[09.1999 - 08.2001] JZS175 |
69749-30050 |
US $3.58 |
||
|
9011906146
|
9011906146
90119-06146 New Genuine Part |
90119-06146 |
US $1.02 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
US $1.08 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $8.06 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $1.08 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.25 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
