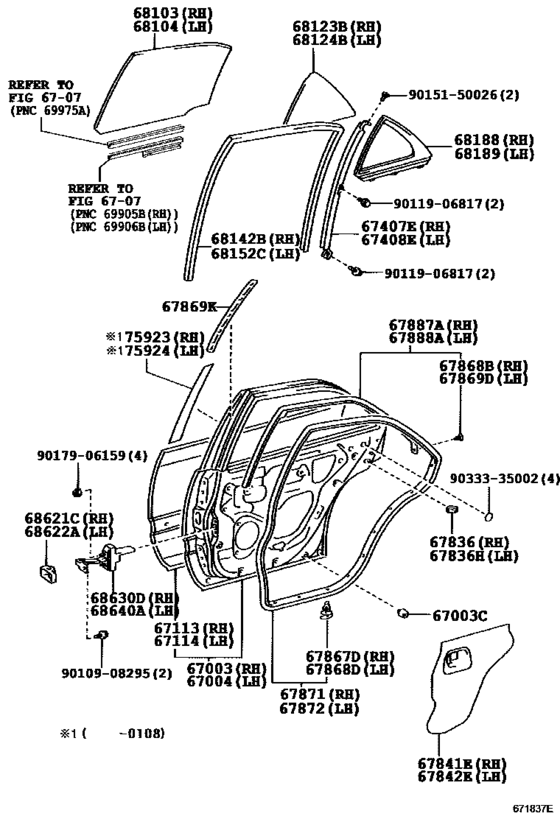

Rear Door Panel & Glass ([09.1999 - ] DOOR PANEL (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-30560 Panel Sub-Assy, Rear Door, Rh[09.1999 - 08.2001] JZS175 |
67003-30560 |
US $952.22 |
||
|
67003C
|
67003C
90541-10027 Cushion(For Center Piller)[09.1999 - 08.2001] JZS175 |
90541-10027 |
US $3.58 |
||
|
67004
|
67004
67004-30560 Panel Sub-Assy, Rear Door, Lh[09.1999 - 08.2001] JZS175 |
67004-30560 |
US $952.22 |
||
|
67113
|
67113
67113-30370 Panel, Rear Door, Outer RhREAR DOOR, OUTER RH [09.1999 - 08.2001] JZS175 |
67113-30370 |
US $384.38 |
||
|
67114
|
67114
67114-30380 Panel, Rear Door, Outer LhREAR DOOR, OUTER LH [09.1999 - 08.2001] JZS175 |
67114-30380 |
US $384.38 |
||
|
67407E
|
67407E
67407-30160 Bar Sub-Assy, Rear Door Window Division, Rh[09.1999 - 08.2001] JZS175 |
67407-30160 |
US $42.81 |
||
|
67408E
|
67408E
67408-30150 Bar Sub-Assy, Rear Door Window Division, Lh[09.1999 - 08.2001] JZS175 |
67408-30150 |
US $42.81 |
||
|
67836
|
67836
67836-14010 Cover, Rear Door Lock Child Protection, Rh[09.1999 - 08.2001] JZS175 |
67836-14010 |
US $4.48 |
||
|
67836H
|
67836H
67836-14010 Cover, Rear Door Lock Child Protection, Rh[09.1999 - 08.2001] JZS175 |
67836-14010 |
US $4.48 |
||
|
67841E
|
67841E
67841-30390 Cover, Rear Door Service Hole, Rh[09.1999 - 08.2001] JZS175 |
67841-30390 |
US $15.58 |
||
|
67842E
|
67842E
67842-30250 Cover, Rear Door Service Hole, Lh[09.1999 - 08.2001] JZS175 |
67842-30250 |
US $15.58 |
||
|
67867D
|
67867D
67493-32010 Retainer, Rear Door Weatherstrip, Rh[09.1999 - 08.2001] JZS175 YELLOW |
67493-32010 |
US $2.04 |
||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[09.1999 - 08.2001] JZS175 PINK OR BLUE |
67867-12150 |
from US $1.79 |
||
|
67868B
|
67868B
90467-05017-C0 Clip, Door Glass Weatherstrip(For Rear Door)[09.1999 - 08.2001] JZS175 BLACK,TRIM0#,1# |
90467-05017-C0 |
US $2.15 |
||
|
67868D
|
67868D
67493-32010 Retainer, Rear Door Weatherstrip, Rh[09.1999 - 08.2001] JZS175 YELLOW |
67493-32010 |
US $2.04 |
||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[09.1999 - 08.2001] JZS175 PINK OR BLUE |
67867-12150 |
from US $1.79 |
||
|
67869D
|
67869D
90467-05017-C0 Clip, Door Glass Weatherstrip(For Rear Door)[09.1999 - 08.2001] JZS175 BLACK,TRIM0#,1# |
90467-05017-C0 |
US $2.15 |
||
|
67869K
|
67869K
67869-30080 Clip, Door Weatherstrip, Lh[09.1999 - 08.2001] JZS175 |
67869-30080 |
US $5.24 |
||
|
67871
|
67871
67871-30240 Weatherstrip, Rear Door, Rh[09.1999 - 02.2000] JZS175 |
67871-30240 |
US $84.45 |
||
| replacement | |||||
|
67871
|
67871
67871-30241 Weatherstrip, Rear Door, Rh[09.1999 - 02.2000] JZS175 |
67871-30241 |
US $84.45 |
||
|
67871
|
67871
67871-30241 Weatherstrip, Rear Door, Rh[02.2000 - 08.2001] JZS175 |
67871-30241 |
US $84.45 |
||
|
67872
|
67872
67872-30250 Weatherstrip, Rear Door, Lh[09.1999 - 02.2000] JZS175 |
67872-30250 |
US $84.45 |
||
| replacement | |||||
|
67872
|
67872
67872-30251 Weatherstrip, Rear Door, Lh[09.1999 - 02.2000] JZS175 |
67872-30251 |
US $84.45 |
||
|
67872
|
67872
67872-30251 Weatherstrip, Rear Door, Lh[02.2000 - 08.2001] JZS175 |
67872-30251 |
US $84.45 |
||
|
67887A
|
67887A
67887-30110 Weatherstrip, Rear Door, No.2 Rh[09.1999 - 02.2000] JZS175 |
67887-30110 |
US $41.79 |
||
| replacement | |||||
|
67887A
|
67887A
67887-30111 Weatherstrip, Rear Door, No.2 Rh[09.1999 - 02.2000] JZS175 |
67887-30111 |
US $41.64 |
||
|
67887A
|
67887A
67887-30111 Weatherstrip, Rear Door, No.2 Rh[02.2000 - 08.2001] JZS175 |
67887-30111 |
US $41.64 |
||
|
67888A
|
67888A
67888-30110 Weatherstrip, Rear Door, No.2 Lh[09.1999 - 02.2000] JZS175 |
67888-30110 |
US $41.79 |
||
| replacement | |||||
|
67888A
|
67888A
67888-30111 Weatherstrip, Rear Door, No.2 Lh[09.1999 - 02.2000] JZS175 |
67888-30111 |
US $41.64 |
||
|
67888A
|
67888A
67888-30111 Weatherstrip, Rear Door, No.2 Lh[02.2000 - 08.2001] JZS175 |
67888-30111 |
US $41.64 |
||
|
68103
|
68103
68113-30680
Glass Sub-Assy, Rear Door, Rh
[09.1999 - 08.2001] JZS175 *UVCT,T=4.0,GREEN |
68113-30680 |
— | ||
|
68104
|
68104
68114-30600 Glass Sub-Assy, Rear Door, Lh[09.1999 - 08.2001] JZS175 *UVCT,T=4.0,GREEN |
68114-30600 |
US $241.70 |
||
|
68123B
|
68123B
68123-30460 Glass, Rear Door Quarter Window, Rh[09.1999 - 08.2001] JZS175 *UVCT,T=4.0,GREEN |
68123-30460 |
US $67.12 |
||
|
68124B
|
68124B
68124-30400 Glass, Rear Door Quarter Window, Lh[09.1999 - 08.2001] JZS175 *UVCT,T=4.0,GREEN |
68124-30400 |
US $67.12 |
||
|
68142B
|
68142B
68142-30160 Run, Rear Door Window, Rh[09.1999 - 04.2000] JZS175 |
68142-30160 |
US $58.24 |
||
|
68142B
|
68142B
68142-30161 Run, Rear Door Window, Rh[04.2000 - 11.2000] JZS175 |
68142-30161 |
US $58.24 |
||
| replacement | |||||
|
68142B
|
68142B
68142-30160 Run, Rear Door Window, Rh[04.2000 - 11.2000] JZS175 |
68142-30160 |
US $58.24 |
||
|
68152C
|
68152C
68152-30060 Run, Rear Door Glass, Lh[09.1999 - 04.2000] JZS175 |
68152-30060 |
US $58.24 |
||
|
68152C
|
68152C
68152-30061 Run, Rear Door Glass, Lh[04.2000 - 11.2000] JZS175 |
68152-30061 |
US $58.24 |
||
| replacement | |||||
|
68152C
|
68152C
68152-30060 Run, Rear Door Glass, Lh[04.2000 - 11.2000] JZS175 |
68152-30060 |
US $58.24 |
||
|
68188
|
68188
68188-30130
Weatherstrip, Rear Door Quarter Window, Rh
[09.1999 - 08.2001] JZS175 |
68188-30130 |
— | ||
|
68189
|
68189
68189-30110 Weatherstrip, Rear Door Quarter Window, Lh[09.1999 - 08.2001] JZS175 |
68189-30110 |
US $37.13 |
||
|
68621C
|
68621C
68621-33010 Cover, Front Door Check, Rh[09.1999 - 08.2001] JZS175 |
68621-33010 |
US $8.24 |
||
|
68622A
|
68622A
68622-33010 Cover, Front Door Check, Lh[09.1999 - 08.2001] JZS175 |
68622-33010 |
US $8.24 |
||
|
68630D
|
68630D
68630-30180 Check Assy, Rear Door, Rh[09.1999 - 08.2001] JZS175 |
68630-30180 |
US $60.13 |
||
|
68640A
|
68640A
68640-30080 Check Assy, Rear Door, Lh[09.1999 - 08.2001] JZS175 |
68640-30080 |
US $60.13 |
||
|
75923
|
75923
75923-30010 Tape, Black Out, No.2 Rh[09.1999 - 04.2000] JZS175 |
75923-30010 |
US $64.65 |
||
| replacement | |||||
|
75923
|
75923
75923-30011 Tape, Black Out, No.2 Rh[09.1999 - 04.2000] JZS175 |
75923-30011 |
US $64.65 |
||
|
75923
|
75923
75923-30011 Tape, Black Out, No.2 Rh[04.2000 - 08.2001] JZS175 |
75923-30011 |
US $64.65 |
||
|
75924
|
75924
75924-30010 Tape, Black Out, No.2 Lh[09.1999 - 04.2000] JZS175 |
75924-30010 |
US $64.65 |
||
| replacement | |||||
|
75924
|
75924
75924-30011 Tape, Black Out, No.2 Lh[09.1999 - 04.2000] JZS175 |
75924-30011 |
US $64.65 |
||
|
75924
|
75924
75924-30011 Tape, Black Out, No.2 Lh[04.2000 - 08.2001] JZS175 |
75924-30011 |
US $64.65 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.76 |
||
|
9011906817
|
9011906817
90119-06817 BOLT WWASHER |
90119-06817 |
from US $0.84 |
||
|
9015150026
|
9015150026
90151-50026 SCREW CROSSRECESS |
90151-50026 |
from US $0.68 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.43 |
||
