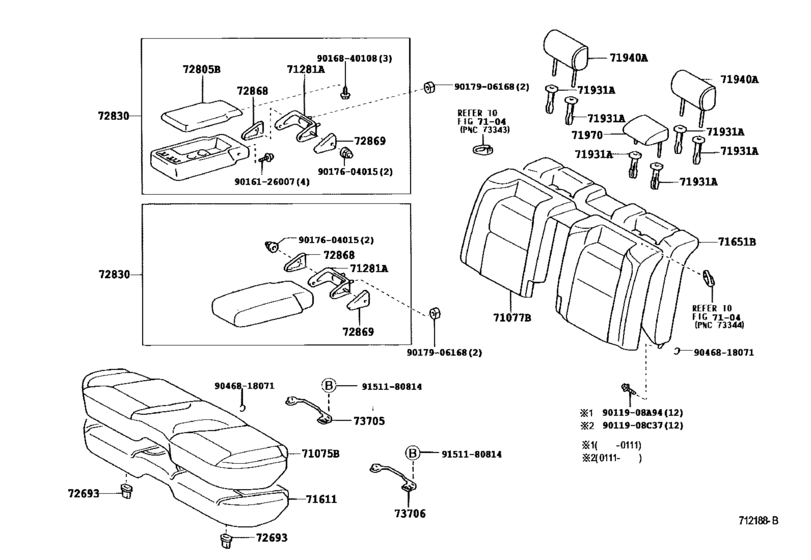

Rear Seat & Seat Track ([08.2001 - ] (0108- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71075B
|
71075B
71075-3A350-A0 Cover, Rear Seat Cushion (For Bench Type)[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104,IVORY,TRIM0# |
71075-3A350-A0 |
US $1,193.92 |
||
|
71075B
|
71075B
71075-3A350-B0 Cover, Rear Seat Cushion (For Bench Type)[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
71075-3A350-B0 |
US $1,193.92 |
||
|
71075B
|
71075B
71075-3A410-A0 Cover, Rear Seat Cushion (For Bench Type)[09.1999 - 08.2001] JZS175 SEAT = TYPE A-*104,IVORY,TRIM0# |
71075-3A410-A0 |
US $2,387.84 |
||
|
71075B
|
71075B
71075-3A460-A0 Cover, Rear Seat Cushion (For Bench Type)[08.2001 - 12.2003] JZS175 SEAT = TYPE B-*104,IVORY,TRIM0# |
71075-3A460-A0 |
US $1,193.92 |
||
|
71075B
|
71075B
71075-3A460-B0 Cover, Rear Seat Cushion (For Bench Type)[08.2001 - 12.2003] JZS175 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
71075-3A460-B0 |
US $1,193.92 |
||
|
71075B
|
71075B
71075-3A520-A0 Cover, Rear Seat Cushion (For Bench Type)[08.2001 - 12.2003] JZS175 SEAT = TYPE A-*104,IVORY,TRIM0# |
71075-3A520-A0 |
US $2,387.84 |
||
|
71077B
|
71077B
71077-3F480-A0 Cover, Rear Seat Back (For Bench Type)[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
71077-3F480-A0 |
US $1,265.26 |
||
|
71077B
|
71077B
71077-3F480-B0 Cover, Rear Seat Back (For Bench Type)[09.1999 - 08.2001] JZS175 MEDIUM CHARCOAL,TRIM1# |
71077-3F480-B0 |
US $1,265.26 |
||
|
71077B
|
71077B
71077-3F640-A0 Cover, Rear Seat Back (For Bench Type)[08.2001 - 08.2003] JZS175 IVORY,TRIM07 |
71077-3F640-A0 |
US $1,265.26 |
||
| replacement | |||||
|
71077B
|
71077B
71077-3F640-A1 Cover, Rear Seat Back (For Bench Type)[08.2001 - 08.2003] JZS175 IVORY,TRIM07 |
71077-3F640-A1 |
US $1,263.81 |
||
|
71077B
|
71077B
71077-3F640-A1 Cover, Rear Seat Back (For Bench Type)[08.2003 - 12.2003] JZS175 IVORY,TRIM07 |
71077-3F640-A1 |
US $1,263.81 |
||
|
71077B
|
71077B
71077-3F640-B0 Cover, Rear Seat Back (For Bench Type)[08.2001 - 08.2003] JZS175 MEDIUM CHARCOAL,TRIM18 |
71077-3F640-B0 |
US $1,265.26 |
||
| replacement | |||||
|
71077B
|
71077B
71077-3F640-B1 Cover, Rear Seat Back (For Bench Type)[08.2001 - 08.2003] JZS175 MEDIUM CHARCOAL,TRIM18 |
71077-3F640-B1 |
US $1,263.81 |
||
|
71077B
|
71077B
71077-3F640-B1 Cover, Rear Seat Back (For Bench Type)[08.2003 - 12.2003] JZS175 CHARCOAL,TRIM18 |
71077-3F640-B1 |
US $1,263.81 |
||
|
71281A
|
71281A
71281-30050 Hinge, Rear Seat Center Armrest[09.1999 - 08.2001] JZS175 |
71281-30050 |
US $28.39 |
||
|
71611
|
71611
71503-30090 Pad, Rear Seat Cushion[09.1999 - 08.2001] JZS175 |
71503-30090 |
US $481.94 |
||
|
71611
|
71611
71503-30120 Pad, Rear Seat Cushion[08.2001 - 12.2003] JZS175 |
71503-30120 |
US $503.78 |
||
|
71651B
|
71651B
71507-30160 Pad, Rear Seat Back(For Bench Type)[09.1999 - 08.2001] JZS175 |
71507-30160 |
US $604.24 |
||
|
71651B
|
71651B
71507-30200 Pad, Rear Seat Back(For Bench Type)[08.2001 - 12.2003] JZS175 |
71507-30200 |
US $640.64 |
||
|
71931A
|
71931A
71930-13030-A0 Support, Front Seat Headrest[09.1999 - 08.2001] JZS175 W(LOCK),IVORY,TRIM0# |
71930-13030-A0 |
US $16.89 |
||
|
71931A
|
71931A
71930-13030-B0
Support, Front Seat Headrest
[09.1999 - 08.2001] JZS175 W(LOCK),MD.CHARCOAL,TRIM1# |
71930-13030-B0 |
— | ||
|
71931A
|
71931A
71931-12040-A5 Support, Front Seat Headrest[09.1999 - 08.2001] JZS175 W/O(LOCK),IVORY,TRIM0# |
71931-12040-A5 |
US $12.23 |
||
|
71931A
|
71931A
71931-12040-P9 Support, Front Seat Headrest[09.1999 - 08.2001] JZS175 W/O(LOCK),MD.CHARCOAL,TRIM1# |
71931-12040-P9 |
US $12.23 |
||
|
71940A
|
71940A
71940-30810-A0 Headrest Assy, Rear Seat[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104,IVORY,TRIM0# |
71940-30810-A0 |
US $436.80 |
||
|
71940A
|
71940A
71940-30810-B0 Headrest Assy, Rear Seat[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
71940-30810-B0 |
US $436.80 |
||
|
71940A
|
71940A
71940-30850-A0 Headrest Assy, Rear Seat[09.1999 - 08.2001] JZS175 SEAT = TYPE A-*104,IVORY,TRIM0# |
71940-30850-A0 |
US $503.78 |
||
|
71970
|
71970
71960-30050-A0 Headrest Assy, Rear Seat[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104,IVORY,TRIM0# |
71960-30050-A0 |
US $352.35 |
||
|
71970
|
71970
71960-30050-B0 Headrest Assy, Rear Seat[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
71960-30050-B0 |
US $352.35 |
||
|
71970
|
71970
71960-30090-A0 Headrest Assy, Rear Seat[09.1999 - 08.2001] JZS175 SEAT = TYPE A-*104,IVORY,TRIM0# |
71960-30090-A0 |
US $406.22 |
||
|
72693
|
72693
72693-14050 Hook, Rear Seat Cushion Lock[09.1999 - 08.2001] JZS175 |
72693-14050 |
from US $6.59 |
||
|
72805B
|
72805B
72805-30190-A1 Door Sub-Assy, Rear Seat Center Armrest[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104 & W(POWER SEAT),IVORY,TRIM0# |
72805-30190-A1 |
US $294.11 |
||
|
72805B
|
72805B
72805-30190-B1 Door Sub-Assy, Rear Seat Center Armrest[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104 & W(POWER SEAT),MEDIUM CHARCOAL,TRIM1# |
72805-30190-B1 |
US $294.11 |
||
|
72805B
|
72805B
72805-30210-A2 Door Sub-Assy, Rear Seat Center Armrest[09.1999 - 08.2001] JZS175 SEAT = TYPE A-*104,IVORY,TRIM0# |
72805-30210-A2 |
US $369.82 |
||
|
72805B
|
72805B
72805-30220-A0 Door Sub-Assy, Rear Seat Center Armrest[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104,IVORY,TRIM0# |
72805-30220-A0 |
US $294.11 |
||
|
72805B
|
72805B
72805-30220-B0 Door Sub-Assy, Rear Seat Center Armrest[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
72805-30220-B0 |
US $294.11 |
||
|
72830
|
72830
72830-3A390-A1 Armrest Assy, Rear Seat, Center[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104 & W(POWER SEAT),IVORY,TRIM0# |
72830-3A390-A1 |
US $1,135.68 |
||
|
72830
|
72830
72830-3A390-B1 Armrest Assy, Rear Seat, Center[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104 & W(POWER SEAT),MEDIUM CHARCOAL,TRIM1# |
72830-3A390-B1 |
US $1,135.68 |
||
|
72830
|
72830
72830-3A400-A1 Armrest Assy, Rear Seat, Center[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104,IVORY,TRIM0# |
72830-3A400-A1 |
US $969.70 |
||
|
72830
|
72830
72830-3A400-B1 Armrest Assy, Rear Seat, Center[09.1999 - 08.2001] JZS175 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
72830-3A400-B1 |
US $969.70 |
||
|
72830
|
72830
72830-3A460-A2 Armrest Assy, Rear Seat, Center[09.1999 - 08.2001] JZS175 SEAT = TYPE A-*104,IVORY,TRIM0# |
72830-3A460-A2 |
US $1,394.85 |
||
|
72868
|
72868
72868-30120-A0 Cover, Center Armrest Hinge, Rh[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
72868-30120-A0 |
US $13.40 |
||
|
72868
|
72868
72868-30120-B1 Cover, Center Armrest Hinge, Rh[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
72868-30120-B1 |
US $13.40 |
||
|
72868
|
72868
72868-30130-A0 Cover, Center Armrest Hinge, Rh[09.1999 - 08.2001] JZS175 W(POWER SEAT),IVORY,TRIM0# |
72868-30130-A0 |
US $14.27 |
||
|
72868
|
72868
72868-30130-B0 Cover, Center Armrest Hinge, Rh[09.1999 - 08.2001] JZS175 W(POWER SEAT),MD.CHARCOAL,TRIM1# |
72868-30130-B0 |
US $14.27 |
||
|
72869
|
72869
72869-30100-A0 Cover, Center Armrest Hinge, Lh[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
72869-30100-A0 |
US $12.67 |
||
| replacement | |||||
|
72869
|
72869
72869-30100-C0 Cover, Center Armrest Hinge, Lh[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
72869-30100-C0 |
US $12.67 |
||
|
72869
|
72869
72869-30100-B1 Cover, Center Armrest Hinge, Lh[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
72869-30100-B1 |
US $12.67 |
||
|
73705
|
73705
73705-51010 Bracket Sub-Assy, Child Restraint Seat Anchor, Rh[08.2001 - 12.2003] JZS175 |
73705-51010 |
US $19.80 |
||
|
73706
|
73706
73706-51010 Bracket Sub-Assy, Child Restraint Seat Anchor, Lh[08.2001 - 12.2003] JZS175 |
73706-51010 |
US $19.80 |
||
|
9011908A94
|
9011908A94
90119-08A94 New Genuine Part |
90119-08A94 |
US $1.02 |
||
|
9011908C37
|
9011908C37
90119-08C37 BOLT WWASHER |
90119-08C37 |
US $1.43 |
||
|
9016126007
|
9016126007
90161-26007 SCREW |
90161-26007 |
US $1.16 |
||
|
9016840108
|
9016840108
90168-40108 New Genuine Part |
90168-40108 |
US $1.25 |
||
|
9017604015
|
9017604015
90176-04015 New Genuine Part |
90176-04015 |
US $0.87 |
||
|
9017906168
|
9017906168
90179-06168 Nut & Washer Assy |
90179-06168 |
from US $0.97 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.84 |
||
|
9151180814
|
9151180814
91511-80814 New Genuine Part |
91511-80814 |
US $1.65 |
||
