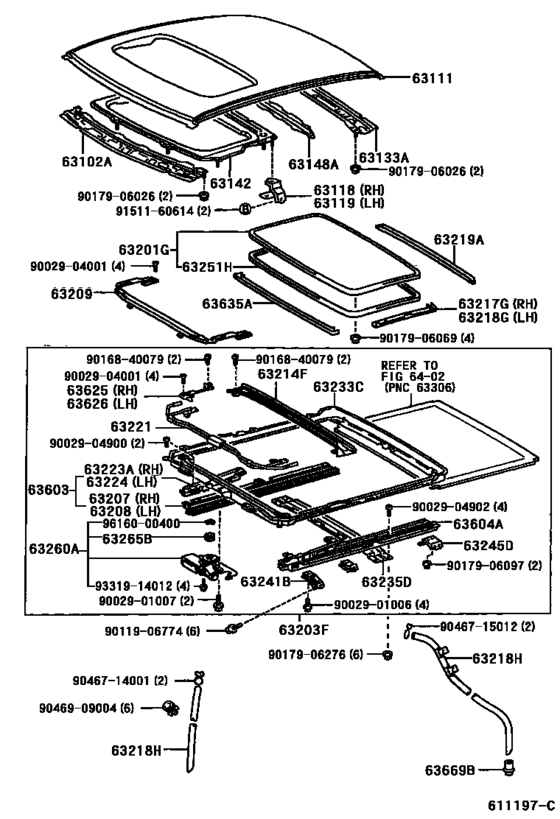

Roof Panel & Back Window Glass ([09.1999 - 08.2001] W(MOON ROOF) (9909-0108)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-30180 Panel Sub-Assy, Windshield Header[09.1999 - 08.2001] JZS175 |
63102-30180 |
US $94.64 |
||
|
63102A
|
63102A
63102-30190 Panel Sub-Assy, Windshield Header[09.1999 - 08.2001] JZS175 W(MOON ROOF) |
63102-30190 |
US $77.17 |
||
|
63102A
|
63102A
63102-30220 Panel Sub-Assy, Windshield Header[08.2001 - 12.2003] JZS175 |
63102-30220 |
US $96.10 |
||
|
63111
|
63111
63111-30420 Panel, Roof[09.1999 - 08.2001] JZS175 |
63111-30420 |
US $642.10 |
||
|
63111
|
63111
63111-30430 Panel, Roof[09.1999 - 08.2001] JZS175 W(MOON ROOF) |
63111-30430 |
US $642.10 |
||
|
63118
|
63118
63118-30090 Support, Roof Panel, Rh[09.1999 - 08.2001] JZS175 |
63118-30090 |
US $4.95 |
||
|
63119
|
63119
63119-30020 Support, Roof Panel, Lh[09.1999 - 08.2001] JZS175 |
63119-30020 |
US $4.95 |
||
|
63133A
|
63133A
63133-30230 Frame, Back Window, Upper[09.1999 - 08.2001] JZS175 |
63133-30230 |
US $63.77 |
||
|
63142
|
63142
63142-30110 Reinforcement, Roof Panel, No.2[09.1999 - 08.2001] JZS175 |
63142-30110 |
US $160.16 |
||
|
63148A
|
63148A
63148-30070 Reinforcement, Roof Panel, No.7[09.1999 - 08.2001] JZS175 |
63148-30070 |
US $48.34 |
||
|
63201G
|
63201G
63201-30110 Glass Sub-Assy, Sliding Roof[09.1999 - 08.2001] JZS175 *TEM,T=4.0,DK.GREEN |
63201-30110 |
US $1,025.02 |
||
|
63201G
|
63201G
63201-30111 Glass Sub-Assy, Sliding Roof[09.2003 - 12.2003] JZS175 *TEM,T=4.0,DK.GREEN |
63201-30111 |
US $1,027.94 |
||
|
63203F
|
63203F
63203-30110 Housing Sub-Assy, Sliding Roof[09.1999 - 08.2001] JZS175 |
63203-30110 |
US $1,718.08 |
||
|
63203F
|
63203F
63203-30130 Housing Sub-Assy, Sliding Roof[08.2001 - 12.2003] JZS175 |
63203-30130 |
US $1,601.60 |
||
|
63207
|
63207
63207-30100 Rail Sub-Assy, Sliding Roof Guide, Rh[09.1999 - 08.2001] JZS175 |
63207-30100 |
US $138.32 |
||
|
63208
|
63208
63208-30100 Rail Sub-Assy, Sliding Roof Guide, Lh[09.1999 - 08.2001] JZS175 |
63208-30100 |
US $138.32 |
||
|
63209
|
63209
63209-30090 Panel Sub-Assy, Roof Wind Deflector[09.1999 - 08.2001] JZS175 |
63209-30090 |
US $225.68 |
||
|
63214F
|
63214F
63214-50020 Channel, Roof Drip, Rear[09.1999 - 08.2001] JZS175 |
63214-50020 |
US $67.38 |
||
|
63217G
|
63217G
63217-30080 Garnish, Sliding Roof Side, Rh[09.1999 - 08.2001] JZS175 |
63217-30080 |
US $29.99 |
||
|
63218G
|
63218G
63218-30090 Garnish, Sliding Roof Side, Lh[09.1999 - 08.2001] JZS175 |
63218-30090 |
US $29.99 |
||
|
63218H
|
63218H
63220-30060 Hose, Sliding Roof Drain[09.1999 - 08.2001] JZS175 FRONT |
63220-30060 |
US $18.35 |
||
|
63218H
|
63218H
63247-30040 Hose, Sliding Roof Drain[09.1999 - 08.2001] JZS175 REAR RH |
63247-30040 |
US $21.99 |
||
|
63218H
|
63218H
63248-30020 Hose, Sliding Roof Drain[09.1999 - 08.2001] JZS175 REAR LH |
63248-30020 |
US $21.99 |
||
|
63219A
|
63219A
63219-30080 Garnish, Sliding Roof, Rear[09.1999 - 08.2001] JZS175 |
63219-30080 |
US $49.50 |
||
|
63221
|
63221
63221-30100 Casing, Sliding Roof Cable Guide[09.1999 - 08.2001] JZS175 |
63221-30100 |
US $206.75 |
||
|
63223A
|
63223A
63223-30060 Cable, Sliding Roof Drive, Rh[09.1999 - 08.2001] JZS175 |
63223-30060 |
US $251.89 |
||
|
63224
|
63224
63224-30060 Cable, Sliding Roof Drive, Lh[09.1999 - 08.2001] JZS175 |
63224-30060 |
US $251.89 |
||
|
63233C
|
63233C
63233-30100 Panel, Sliding Roof Housing[09.1999 - 08.2001] JZS175 |
63233-30100 |
US $281.01 |
||
|
63235D
|
63235D
63235-30040 Frame, Sliding Roof Housing, Center[09.1999 - 08.2001] JZS175 |
63235-30040 |
US $67.56 |
||
|
63241B
|
63241B
63241-30100 Bracket, Sliding Roof Housing, No.1[09.1999 - 08.2001] JZS175 |
63241-30100 |
US $12.23 |
||
|
63245D
|
63245D
63245-30100 Bracket, Sliding Roof Housing Rear Mounting, Rh[09.1999 - 08.2001] JZS175 |
63245-30100 |
US $12.67 |
||
|
63251H
|
63251H
63251-30080
Weatherstrip, Sliding Roof
[09.1999 - 08.2001] JZS175 |
63251-30080 |
— | ||
| replacement | |||||
|
63251H
|
63251H
63251-30081 Weatherstrip, Sliding Roof[09.1999 - 08.2001] JZS175 |
63251-30081 |
US $70.39 |
||
|
63251H
|
63251H
63251-30081 Weatherstrip, Sliding Roof[09.2003 - 12.2003] JZS175 |
63251-30081 |
US $70.39 |
||
|
63260A
|
63260A
63260-30070 Gear Sub-Assy, Sliding Roof Drive[09.1999 - 03.2000] JZS175 |
63260-30070 |
US $631.90 |
||
| replacement | |||||
|
63260A
|
63260A
63260-30090 Gear Sub-Assy, Sliding Roof Drive[09.1999 - 03.2000] JZS175 |
63260-30090 |
US $631.90 |
||
|
63260A
|
63260A
63260-30090 Gear Sub-Assy, Sliding Roof Drive[03.2000 - 08.2001] JZS175 |
63260-30090 |
US $631.90 |
||
|
63260A
|
63260A
63260-30100 Gear Sub-Assy, Sliding Roof Drive[08.2001 - 12.2003] JZS175 |
63260-30100 |
US $634.82 |
||
|
63265B
|
63265B
63265-30020 Gear, Sliding Roof Drive[09.1999 - 08.2001] JZS175 |
63265-30020 |
US $20.79 |
||
|
63603
|
63603
63603-30100 Rail Sub-Assy, Sliding Roof Drive, Rh[09.1999 - 08.2001] JZS175 |
63603-30100 |
US $372.74 |
||
|
63604A
|
63604A
63604-30030 Rail Sub-Assy, Sliding Roof Drive, Lh[09.1999 - 08.2001] JZS175 |
63604-30030 |
US $374.19 |
||
|
63625
|
63625
63625-30010 Block, Sliding Roof Guide, Rh[09.1999 - 08.2001] JZS175 |
63625-30010 |
US $16.89 |
||
|
63626
|
63626
63626-30010 Block, Sliding Roof Guide, Lh[09.1999 - 08.2001] JZS175 |
63626-30010 |
US $16.89 |
||
|
63635A
|
63635A
63635-30060
Garnish, Sliding Roof, Front
[09.1999 - 08.2001] JZS175 |
63635-30060 |
— | ||
|
63669B
|
63669B
63669-30010
Grommet, Sliding Roof Drain
[09.1999 - 08.2001] JZS175 |
63669-30010 |
— | ||
|
9002901006
|
9002901006
90029-01006 New Genuine Part |
90029-01006 |
US $1.60 |
||
|
9002901007
|
9002901007
90029-01007 New Genuine Part |
90029-01007 |
US $2.33 |
||
|
9002904001
|
9002904001
90029-04001 New Genuine Part |
90029-04001 |
US $1.60 |
||
|
9002904900
|
9002904900
90029-04900 New Genuine Part |
90029-04900 |
US $1.89 |
||
|
9002904902
|
9002904902
90029-04902 New Genuine Part |
90029-04902 |
US $1.89 |
||
|
9011906774
|
9011906774
90119-06774 New Genuine Part |
90119-06774 |
US $1.16 |
||
| replacement | |||||
|
9011906774
|
9011906774
90119-06543 BOLT |
90119-06543 |
from US $0.68 |
||
|
9016840079
|
9016840079
90168-40079 New Genuine Part |
90168-40079 |
US $1.75 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906069
|
9017906069
90179-06069
Direct
|
90179-06069 |
— | ||
| replacement | |||||
|
9017906069
|
9017906069
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.76 |
||
|
9017906276
|
9017906276
90179-06276
Direct
|
90179-06276 |
— | ||
| replacement | |||||
|
9017906276
|
9017906276
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.70 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9046715012
|
9046715012
90467-15012 Clip Or Clamp(For Ventilation Hose) |
90467-15012 |
US $3.58 |
||
|
9046909004
|
9046909004
90469-09004 Clamp, Sliding Roof Or Removable Roof Drain Hose |
90469-09004 |
US $1.60 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.25 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
