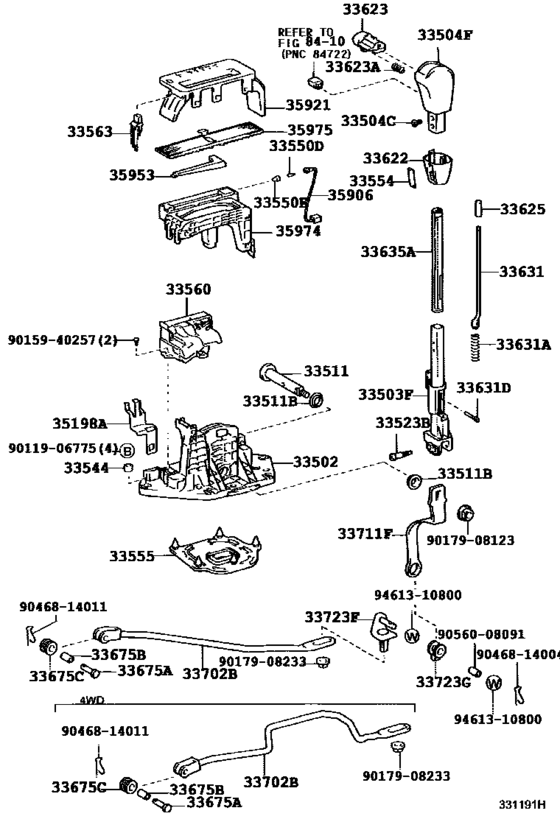

Shift Lever & Retainer ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33502
|
33502
33521-30310 Plate Sub-Assy, Shift Lever[09.1999 - 08.2001] JZS175 |
33521-30310 |
US $52.85 |
||
|
33503F
|
33503F
33055-30180 Lever Sub-Assy, Shift(For Floor Shift)[09.1999 - 08.2001] JZS175 |
33055-30180 |
US $33.05 |
||
|
33504C
|
33504C
90159-40238 Screw (For Shift Lever Knob Setting)[09.1999 - 08.2001] JZS175 |
90159-40238 |
US $0.84 |
||
|
33504F
|
33504F
33542-30340-B0 Knob Sub-Assy, Shift Lever[09.1999 - 08.2001] JZS175 LEATHER,DK.CHARCOAL,TRIM1# |
33542-30340-B0 |
US $122.30 |
||
|
33504F
|
33504F
33542-30340-E0 Knob Sub-Assy, Shift Lever[09.1999 - 08.2001] JZS175 LEATHER,SANDAL WOOD,TRIM0# |
33542-30340-E0 |
US $122.30 |
||
|
33504F
|
33504F
33542-30350-B0 Knob Sub-Assy, Shift Lever[09.1999 - 08.2001] JZS175 URETHANE,DK.CHARCOAL,TRIM1# |
33542-30350-B0 |
US $71.64 |
||
|
33504F
|
33504F
33542-30350-E0 Knob Sub-Assy, Shift Lever[09.1999 - 08.2001] JZS175 URETHANE,SANDAL WOOD,TRIM0# |
33542-30350-E0 |
US $71.64 |
||
|
33511
|
33511
33511-30430 Shaft, Control (For Floor Shift)[09.1999 - 08.2001] JZS175 |
33511-30430 |
US $14.85 |
||
|
33511B
|
33511B
90385-13010 Bush(For Control Shaft)[09.1999 - 08.2001] JZS175 |
90385-13010 |
US $2.34 |
||
|
33523B
|
33523B
33523-30020 Pin, Shift Lever (For Floor Shift)[09.1999 - 08.2001] JZS175 |
33523-30020 |
US $3.79 |
||
|
33544
|
33544
33544-50010 Insert, Shift Lever, No.1[09.1999 - 08.2001] JZS175 |
33544-50010 |
US $1.16 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[09.1999 - 08.2001] JZS175 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.51 |
||
|
33550E
|
33550E
90339-04053 Cap, Position Indicator Lamp[09.1999 - 08.2001] JZS175 |
90339-04053 |
US $2.69 |
||
|
33554
|
33554
33554-22060 Cap, Shift Lever[09.1999 - 08.2001] JZS175 |
33554-22060 |
US $3.49 |
||
|
33555
|
33555
33555-30340 Boot, Shift Lever[09.1999 - 08.2001] JZS175 |
33555-30340 |
US $11.07 |
||
|
33560
|
33560
33560-30020 Unit Assy, Shift Lock Control[09.1999 - 08.2001] JZS175 |
33560-30020 |
US $212.58 |
||
|
33563
|
33563
33563-30150 Button, Shift Lock ReleaseSHIFT LOCK RELEASE [09.1999 - 08.2001] JZS175 |
33563-30150 |
US $5.10 |
||
|
33622
|
33622
33622-30140 Cover, Shift Lever Knob, No.1[09.1999 - 08.2001] JZS175 |
33622-30140 |
US $10.48 |
||
|
33623
|
33623
33623-30150-B0 Button, Shift Lever Knob[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
33623-30150-B0 |
US $20.24 |
||
| replacement | |||||
|
33623
|
33623
33623-30150-C0 Button, Shift Lever Knob[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
33623-30150-C0 |
US $20.38 |
||
|
33623
|
33623
33623-30150-E0 Button, Shift Lever Knob[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
33623-30150-E0 |
US $20.24 |
||
| replacement | |||||
|
33623
|
33623
33623-30150-C0 Button, Shift Lever Knob[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
33623-30150-C0 |
US $20.38 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[09.1999 - 08.2001] JZS175 |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-48010 Sleeve, Shift Lever Knob[09.1999 - 08.2001] JZS175 |
33625-48010 |
US $4.95 |
||
|
33631
|
33631
33631-30090 Rod, Detent[09.1999 - 08.2001] JZS175 |
33631-30090 |
US $14.85 |
||
|
33631A
|
33631A
90501-07115 Spring, Compression (For Detent Rod)[09.1999 - 08.2001] JZS175 |
90501-07115 |
US $1.75 |
||
|
33631D
|
33631D
90256-04015 Pin, Grooved (For Detent Rod)[09.1999 - 08.2001] JZS175 |
90256-04015 |
US $4.22 |
||
|
33635A
|
33635A
33635-30150 Guide, Wire, No.1 (For Shift Lever)[09.1999 - 08.2001] JZS175 |
33635-30150 |
US $6.99 |
||
|
33675A
|
33675A
33726-35010 Pin, W/hole (For Transmission Control Rod)[09.1999 - 08.2001] JZS175 |
33726-35010 |
US $3.40 |
||
|
33675B
|
33675B
90560-08091 Bush (For Floor Shift Control Shaft)[09.1999 - 08.2001] JZS175 |
90560-08091 |
US $1.25 |
||
|
33675C
|
33675C
90480-17013 Grommet[09.1999 - 08.2001] JZS175 |
90480-17013 |
US $4.12 |
||
|
33702B
|
33702B
33702-30500 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[09.1999 - 08.2001] JZS175 |
33702-30500 |
US $21.55 |
||
|
33711F
|
33711F
33711-30350 Lever, Control Shaft (For Floor Shift)[09.1999 - 08.2001] JZS175 |
33711-30350 |
US $72.07 |
||
|
33723F
|
33723F
33723-22020 Swivel, Connecting Rod (For Floor Shift)[09.1999 - 08.2001] JZS175 |
33723-22020 |
US $7.34 |
||
|
33723G
|
33723G
33572-30050 Bush (For Floor Shift Control Shaft)[09.1999 - 08.2001] JZS175 |
33572-30050 |
US $2.97 |
||
|
35198A
|
35198A
35198-30140 Bracket, Wire Harness Clamp, No.4[09.1999 - 08.2001] JZS175 |
35198-30140 |
US $9.17 |
||
|
35906
|
35906
35906-30100 Wire Sub-Assy, Indicator Lamp[09.1999 - 08.2001] JZS175 |
35906-30100 |
US $15.29 |
||
|
35921
|
35921
35921-30490 Plate, Control Position IndicatorCONTROL POSITION INDICATOR [09.1999 - 08.2001] JZS175 |
35921-30490 |
US $164.53 |
||
| replacement | |||||
|
35921
|
35921
35921-30480 Plate, Control Position Indicator[09.1999 - 08.2001] JZS175 |
35921-30480 |
US $164.53 |
||
|
35953
|
35953
35953-30060 Guide, Position Indicator Light[09.1999 - 08.2001] JZS175 |
35953-30060 |
US $10.34 |
||
|
35974
|
35974
35974-30120 Housing, Position Indicator, Lower[09.1999 - 08.2001] JZS175 |
35974-30120 |
US $63.63 |
||
|
35975
|
35975
35975-30260
Cover, Slide (For Position Indicator)
[09.1999 - 08.2001] JZS175 |
35975-30260 |
— | ||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
US $2.33 |
||
|
9015940257
|
9015940257
90159-40257 New Genuine Part |
90159-40257 |
US $1.46 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $1.65 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
US $3.40 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
US $1.43 |
||
|
9046814011
|
9046814011
90468-14011 Clip, No.2(For Parking Brake) |
90468-14011 |
US $1.08 |
||
|
9056008091
|
9056008091
90560-08091 Bush (For Floor Shift Control Shaft) |
90560-08091 |
US $1.25 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
US $1.61 |
||
