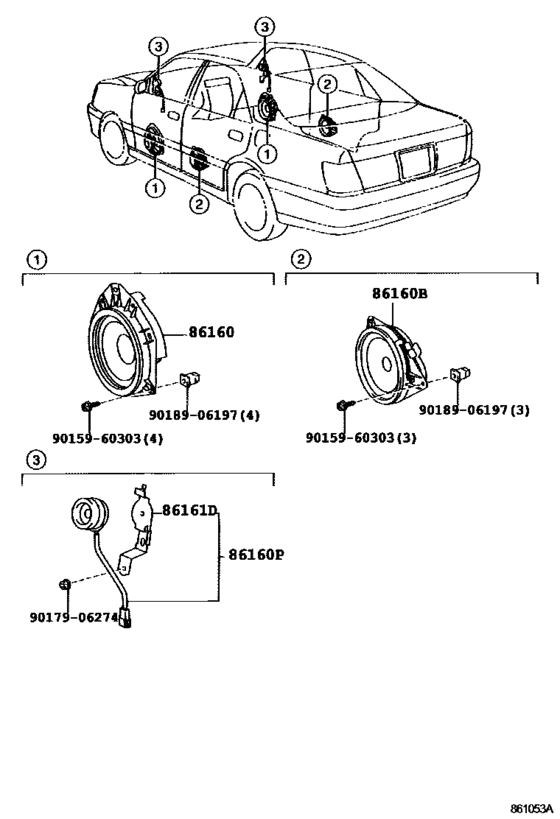

Speaker ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-3A470
Speaker Assy, Front No.1
[09.1999 - 08.2001] JZS175 RH |
86160-3A470 |
— | ||
|
86160
|
86160
86160-3A480 Speaker Assy, Front No.1[09.1999 - 08.2001] JZS175 LH |
86160-3A480 |
US $216.94 |
||
|
86160B
|
86160B
86160-3A490 Speaker Assy, Rear[09.1999 - 08.2001] JZS175 RH |
86160-3A490 |
US $216.94 |
||
|
86160B
|
86160B
86160-3A500 Speaker Assy, Rear[09.1999 - 08.2001] JZS175 LH |
86160-3A500 |
US $216.94 |
||
|
86160P
|
86160P
86160-3A520 Speaker Assy, Front No.2[09.1999 - 08.2001] JZS175 RH |
86160-3A520 |
US $99.01 |
||
|
86160P
|
86160P
86160-3A530 Speaker Assy, Front No.2[09.1999 - 08.2001] JZS175 LH |
86160-3A530 |
US $99.01 |
||
|
86161D
|
86161D
86161-30060 Bracket, Speaker Mounting, No.1[09.1999 - 08.2001] JZS175 RH |
86161-30060 |
US $6.41 |
||
|
86161D
|
86161D
86161-30070 Bracket, Speaker Mounting, No.1[09.1999 - 08.2001] JZS175 LH |
86161-30070 |
US $6.41 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9018906197
|
9018906197
90189-06197 GROMMET SCREW |
90189-06197 |
from US $0.72 |
