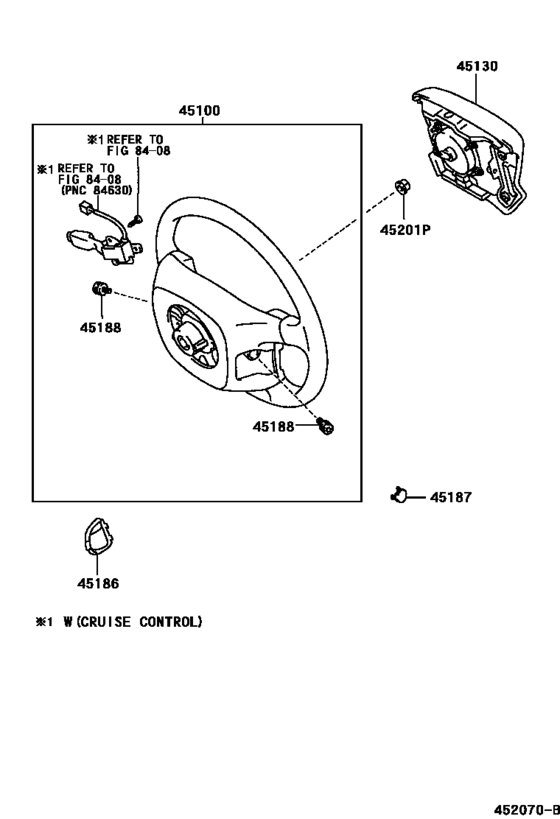

Steering Wheel ([09.1999 - ] 4-SPOKE (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-3A130-B0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,URETHANE,DK.CHARCOAL,TRIM1# |
45100-3A130-B0 |
US $375.65 |
||
|
45100
|
45100
45100-3A130-E0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,URETHANE,SANDAL WOOD,TRIM0# |
45100-3A130-E0 |
US $375.65 |
||
| replacement | |||||
|
45100
|
45100
45100-3A130-B0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,URETHANE,SANDAL WOOD,TRIM0# |
45100-3A130-B0 |
US $375.65 |
||
|
45100
|
45100
45100-3A140-B0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1# |
45100-3A140-B0 |
US $513.97 |
||
|
45100
|
45100
45100-3A140-E0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,URETHANE,W(CRUISE CONTROL),SANDAL WOOD,TRIM0# |
45100-3A140-E0 |
US $513.97 |
||
| replacement | |||||
|
45100
|
45100
45100-3A140-B0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,URETHANE,W(CRUISE CONTROL),SANDAL WOOD,TRIM0# |
45100-3A140-B0 |
US $513.97 |
||
|
45100
|
45100
45100-3A150-B0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1# |
45100-3A150-B0 |
US $856.13 |
||
|
45100
|
45100
45100-3A150-E0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,LEATHER,SANDAL WOOD,TRIM0# |
45100-3A150-E0 |
US $856.13 |
||
| replacement | |||||
|
45100
|
45100
45100-3A150-B0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,LEATHER,SANDAL WOOD,TRIM0# |
45100-3A150-B0 |
US $856.13 |
||
|
45100
|
45100
45100-3A160-B0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,LEATHER,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1# |
45100-3A160-B0 |
US $997.36 |
||
|
45100
|
45100
45100-3A160-E0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0# |
45100-3A160-E0 |
US $997.36 |
||
| replacement | |||||
|
45100
|
45100
45100-3A160-B0 Wheel Assy, Steering[09.1999 - 08.2001] JZS175 4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0# |
45100-3A160-B0 |
US $997.36 |
||
|
45100
|
45100
45100-3A300-B1 Wheel Assy, Steering[08.2001 - 12.2003] JZS175 4-SPOKE,URETHANE,DK.CHARCOAL,TRIM1# |
45100-3A300-B1 |
US $375.65 |
||
|
45100
|
45100
45100-3A300-E1 Wheel Assy, Steering[08.2001 - 12.2003] JZS175 4-SPOKE,URETHANE,SANDAL WOOD,TRIM0# |
45100-3A300-E1 |
US $375.65 |
||
|
45100
|
45100
45100-3A310-B1 Wheel Assy, Steering[08.2001 - 12.2003] JZS175 4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1# |
45100-3A310-B1 |
US $513.97 |
||
|
45100
|
45100
45100-3A310-E1 Wheel Assy, Steering[08.2001 - 12.2003] JZS175 4-SPOKE,URETHANE,W(CRUISE CONTROL),SANDAL WOOD,TRIM0# |
45100-3A310-E1 |
US $513.97 |
||
|
45100
|
45100
45100-3A320-B1 Wheel Assy, Steering[08.2001 - 12.2003] JZS175 4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1# |
45100-3A320-B1 |
US $856.13 |
||
|
45100
|
45100
45100-3A320-E1 Wheel Assy, Steering[08.2001 - 12.2003] JZS175 4-SPOKE,LEATHER,SANDAL WOOD,TRIM0# |
45100-3A320-E1 |
US $856.13 |
||
|
45100
|
45100
45100-3A330-B1 Wheel Assy, Steering[08.2001 - 12.2003] JZS175 4-SPOKE,LEATHER,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1# |
45100-3A330-B1 |
US $997.36 |
||
|
45100
|
45100
45100-3A330-E1 Wheel Assy, Steering[08.2001 - 12.2003] JZS175 4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0# |
45100-3A330-E1 |
US $997.36 |
||
|
45130
|
45130
45130-30580-B0 Button Assy, Horn[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
45130-30580-B0 |
US $1,038.13 |
||
|
45130
|
45130
45130-30580-E0 Button Assy, Horn[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
45130-30580-E0 |
US $1,038.13 |
||
| replacement | |||||
|
45130
|
45130
45130-30580-B0 Button Assy, Horn[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
45130-30580-B0 |
US $1,038.13 |
||
|
45130
|
45130
45130-30610-B1 Button Assy, Horn[08.2001 - 12.2003] JZS175 DK.CHARCOAL,TRIM1# |
45130-30610-B1 |
US $1,039.58 |
||
|
45130
|
45130
45130-30610-E1 Button Assy, Horn[08.2001 - 12.2003] JZS175 SANDAL WOOD,TRIM0# |
45130-30610-E1 |
US $1,039.58 |
||
|
45186
|
45186
45186-30100-B0 Cover, Steering Wheel, Lower No.2[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
45186-30100-B0 |
US $5.53 |
||
|
45186
|
45186
45186-30100-E0 Cover, Steering Wheel, Lower No.2[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
45186-30100-E0 |
US $5.53 |
||
|
45186
|
45186
45186-30110-B0 Cover, Steering Wheel, Lower No.2[09.1999 - 08.2001] JZS175 W(CRUISE CONTROL),DK.CHARCOAL,TRIM1# |
45186-30110-B0 |
US $5.24 |
||
|
45186
|
45186
45186-30110-E0 Cover, Steering Wheel, Lower No.2[09.1999 - 08.2001] JZS175 W(CRUISE CONTROL),SANDAL WOOD,TRIM0# |
45186-30110-E0 |
US $5.24 |
||
|
45187
|
45187
45187-30070-B0 Cover, Steering Wheel, Lower No.3[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
45187-30070-B0 |
US $5.53 |
||
|
45187
|
45187
45187-30070-E0 Cover, Steering Wheel, Lower No.3[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
45187-30070-E0 |
US $5.53 |
||
|
45188
|
45188
45188-60010 Screw, Steering Wheel Pad Attaching[09.1999 - 08.2001] JZS175 L=18 |
45188-60010 |
US $2.87 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[09.1999 - 08.2001] JZS175 |
90179-12071 |
from US $1.48 |
||
