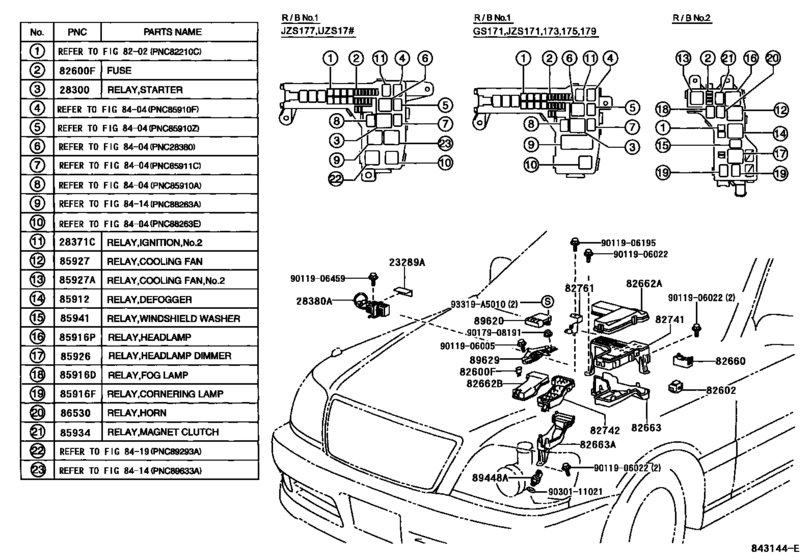

Switch & Relay & Computer ([09.1999 - 12.2003] ENGINE ROOM (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23289A
|
23289A
23289-50020 Cover, Fuel Pump Resistor[09.1999 - 08.2001] 2JZGE..JZS175 |
23289-50020 |
US $11.36 |
||
|
28300
|
28300
28300-10020 Relay Assy, Starter[09.1999 - 08.2001] 2JZGE..JZS175 |
28300-10020 |
from US $52.38 |
||
|
28371C
|
28371C
90987-02012 Relay, Ignition, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
90987-02012 |
from US $25.86 |
||
|
28380A
|
28380A
23080-46060 Resister, Fuel Pump[09.1999 - 08.2001] 2JZGE..JZS175 |
23080-46060 |
US $82.99 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[09.1999 - 08.2001] JZS175 5A,MINI FUSE |
90982-09007 |
from US $0.53 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[09.1999 - 08.2001] JZS175 7.5A,MINI FUSE |
90982-09008 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[09.1999 - 08.2001] JZS175 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[09.1999 - 08.2001] JZS175 15A,MINI FUSE |
90982-09010 |
from US $0.48 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[09.1999 - 08.2001] JZS175 20A,MINI FUSE |
90982-09011 |
from US $0.91 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[09.1999 - 08.2001] JZS175 25A,MINI FUSE |
90982-09012 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[09.1999 - 08.2001] JZS175 30A,MINI FUSE |
90982-09013 |
from US $0.91 |
||
|
82602
|
82602
82602-13010 Block Sub-Assy, Relay[09.1999 - 08.2001] JZS175 |
82602-13010 |
US $16.16 |
||
|
82660
|
82660
82660-26210 Block Assy, Relay, Engine Room[09.1999 - 08.2001] JZS175 |
82660-26210 |
US $18.20 |
||
|
82660
|
82660
82660-28190 Block Assy, Relay, Engine Room[08.2001 - 12.2003] JZS175 |
82660-28190 |
from US $20.39 |
||
|
82662A
|
82662A
82662-30450 Cover, Relay Block, Upper, No.1[09.1999 - 08.2001] JZS175 |
82662-30450 |
US $43.68 |
||
|
82662A
|
82662A
82662-30470 Cover, Relay Block, Upper, No.1[08.2001 - 11.2003] JZS175 |
82662-30470 |
US $43.53 |
||
|
82662B
|
82662B
82662-30460 Cover, Relay Block, Upper, No.2[09.1999 - 08.2001] JZS175 |
82662-30460 |
US $31.01 |
||
|
82662B
|
82662B
82662-30461 Cover, Relay Block, Upper, No.2[08.2001 - 11.2003] JZS175 |
82662-30461 |
US $41.35 |
||
|
82663
|
82663
82663-30180 Cover, Relay Block, Lower[09.1999 - 08.2001] JZS175 |
82663-30180 |
US $41.64 |
||
|
82663A
|
82663A
82663-30160 Cover, Relay Block, Lower, No.2[09.1999 - 08.2001] JZS175 |
82663-30160 |
US $26.21 |
||
|
82663A
|
82663A
82663-30190 Cover, Relay Block, Lower, No.2[08.2001 - 12.2003] JZS175 |
82663-30190 |
US $27.81 |
||
|
82741
|
82741
82741-30060 Block, Engine Room Relay[09.1999 - 08.2001] JZS175 |
82741-30060 |
US $182 |
||
|
82742
|
82742
82742-30050 Block, Engine Room Relay, No.2[09.1999 - 08.2001] JZS175 |
82742-30050 |
US $104.83 |
||
|
82742
|
82742
82742-30060 Block, Engine Room Relay, No.2[08.2001 - 12.2003] JZS175 |
82742-30060 |
US $103.38 |
||
|
82761
|
82761
82761-30030 Bracket, Relay Block, No.1[09.1999 - 08.2001] JZS175 |
82761-30030 |
US $10.19 |
||
|
85912
|
85912
90987-02016
Relay Assy, Starter
[09.1999 - 08.2001] JZS175 |
90987-02016 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02025 Relay[09.1999 - 08.2001] JZS175 |
90987-02025 |
from US $48.62 |
||
|
85912
|
85912
90987-02025 Relay[08.2001 - 12.2003] JZS175 |
90987-02025 |
from US $48.62 |
||
|
85916D
|
85916D
90987-02012 Relay, Ignition, No.1[09.1999 - 08.2001] JZS175 |
90987-02012 |
from US $25.86 |
||
|
85916F
|
85916F
90987-02012 Relay, Ignition, No.1[09.1999 - 08.2001] JZS175 |
90987-02012 |
from US $25.86 |
||
|
85916P
|
85916P
90987-02016
Relay Assy, Starter
[09.1999 - 08.2001] JZS175 |
90987-02016 |
— | ||
| replacement | |||||
|
85916P
|
85916P
90987-02025 Relay[09.1999 - 08.2001] JZS175 |
90987-02025 |
from US $48.62 |
||
|
85916P
|
85916P
90987-02025 Relay[08.2001 - 12.2003] JZS175 |
90987-02025 |
from US $48.62 |
||
|
85926
|
85926
90987-04006 Relay Assy (For Heater Blower Motor)[09.1999 - 08.2001] JZS175 |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[09.1999 - 08.2001] JZS175 |
90987-04010 |
from US $46.95 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[08.2001 - 12.2003] JZS175 |
90987-04010 |
from US $46.95 |
||
|
85927
|
85927
90987-02016
Relay Assy, Starter
[09.1999 - 08.2001] JZS175 |
90987-02016 |
— | ||
| replacement | |||||
|
85927
|
85927
90987-02025 Relay[09.1999 - 08.2001] JZS175 |
90987-02025 |
from US $48.62 |
||
|
85927
|
85927
90987-02025 Relay[08.2001 - 12.2003] JZS175 |
90987-02025 |
from US $48.62 |
||
|
85927A
|
85927A
90987-03003 Relay Assy, Fuel Pump[09.1999 - 08.2001] JZS175 |
90987-03003 |
from US $23.01 |
||
|
85934
|
85934
90987-02012 Relay, Ignition, No.1[09.1999 - 08.2001] JZS175 |
90987-02012 |
from US $25.86 |
||
|
85941
|
85941
90987-02012 Relay, Ignition, No.1[09.1999 - 08.2001] JZS175 |
90987-02012 |
from US $25.86 |
||
|
86530
|
86530
90987-02012 Relay, Ignition, No.1[09.1999 - 08.2001] JZS175 |
90987-02012 |
from US $25.86 |
||
|
89448A
|
89448A
89448-51010 Switch, Power Steering Oil Pressure[09.1999 - 08.2001] JZS175 |
89448-51010 |
from US $152.46 |
||
|
89620
|
89620
89621-30020 Igniter Assy[09.1999 - 08.2001] JZS175 |
89621-30020 |
US $507 |
||
|
89629
|
89629
89629-51010 Bracket, Igniter Assy[09.1999 - 08.2001] JZS175 |
89629-51010 |
US $11.79 |
||
|
93319A5010
|
93319A5010
93319-A5010 New Genuine Part |
93319-A5010 |
US $0.73 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9011906195
|
9011906195
90119-06195 New Genuine Part |
90119-06195 |
US $2.15 |
||
|
9011906459
|
9011906459
90119-06459 New Genuine Part |
90119-06459 |
US $1.51 |
||
|
9017908191
|
9017908191
90179-08191 New Genuine Part |
90179-08191 |
US $1.61 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.11 |
||
