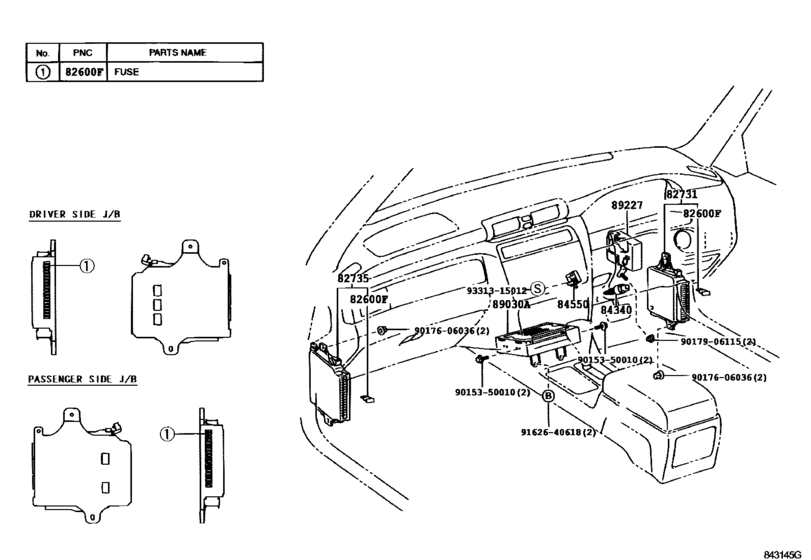

Switch & Relay & Computer ([09.1999 - 12.2003] COWL (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09007 Fusible Link[09.1999 - 08.2001] JZS175 5A,MINI FUSE |
90982-09007 |
from US $0.53 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[09.1999 - 08.2001] JZS175 7.5A,MINI FUSE |
90982-09008 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[09.1999 - 08.2001] JZS175 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[09.1999 - 08.2001] JZS175 15A,MINI FUSE |
90982-09010 |
from US $0.48 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[09.1999 - 08.2001] JZS175 20A,MINI FUSE |
90982-09011 |
from US $0.91 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[09.1999 - 08.2001] JZS175 25A,MINI FUSE |
90982-09012 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[09.1999 - 08.2001] JZS175 30A,MINI FUSE |
90982-09013 |
from US $0.91 |
||
|
82731
|
82731
82730-30070 Block, Driver Side Junction[09.1999 - 08.2001] JZS175 |
82730-30070 |
US $749.84 |
||
|
82735
|
82735
82730-30090 Block, Passenger Side Junction[09.1999 - 08.2001] JZS175 |
82730-30090 |
US $749.84 |
||
|
82735
|
82735
82730-30091 Block, Passenger Side Junction[08.2001 - 12.2003] JZS175 |
82730-30091 |
US $749.84 |
||
|
84340
|
84340
84340-30100 Switch Assy, Stop Lamp[09.1999 - 08.2001] JZS175 |
84340-30100 |
US $41.33 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[09.1999 - 08.2001] JZS175 W(CRUISE CONTROL) |
84340-30110 |
from US $19.82 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[09.1999 - 08.2001] JZS175 |
84550-30080 |
from US $20.33 |
||
|
89030A
|
89030A
89030-30200 Computer Assy, Instrument Panel IntegrationINSTRUMENT PANEL INTEGRATION [09.1999 - 08.2001] JZS175 W(REAR AIR CONDITIONER) |
89030-30200 |
US $1,790.88 |
||
|
89030A
|
89030A
89030-30201 Computer Assy, Instrument Panel IntegrationINSTRUMENT PANEL INTEGRATION [08.2001 - 12.2003] JZS175 W(REAR AIR CONDITIONER) |
89030-30201 |
US $1,790.88 |
||
|
89030A
|
89030A
89030-30250
Computer Assy, Instrument Panel Integration
[09.1999 - 08.2001] JZS175 |
89030-30250 |
— | ||
|
89030A
|
89030A
89030-30251
Computer Assy, Instrument Panel Integration
[08.2001 - 12.2003] JZS175 |
89030-30251 |
— | ||
|
89227
|
89227
89227-30030 Computer, Multiplex Tilt & Telescopic[09.1999 - 08.2001] JZS175 |
89227-30030 |
US $709.07 |
||
| replacement | |||||
|
89227
|
89227
89227-30040 Computer, Multiplex Tilt & Telescopic[09.1999 - 08.2001] JZS175 |
89227-30040 |
US $710.53 |
||
|
89227
|
89227
89227-30040 Computer, Multiplex Tilt & Telescopic[08.2001 - 12.2003] JZS175 |
89227-30040 |
US $710.53 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9017606036
|
9017606036
90176-06036 NUT |
90176-06036 |
from US $0.86 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.61 |
||
|
9331315012
|
9331315012
93313-15012 New Genuine Part |
93313-15012 |
US $1.05 |
||
