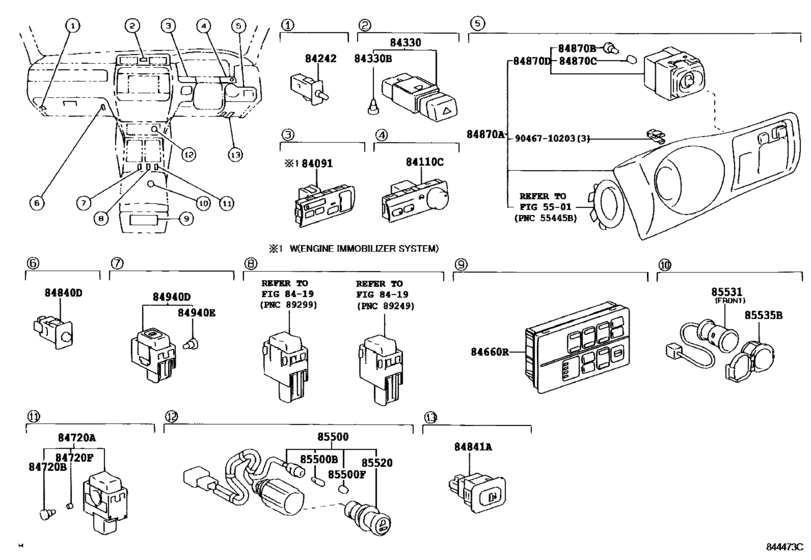

Switch & Relay & Computer ([08.2001 - 12.2003] INSTRUMENT PANEL (0108-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84091
|
84091
84091-30380 Switch Set, Satellite[09.1999 - 05.2000] JZS175 |
84091-30380 |
US $44.41 |
||
| replacement | |||||
|
84091
|
84091
84091-30381 Switch Set, Satellite[09.1999 - 05.2000] JZS175 |
84091-30381 |
US $43.97 |
||
|
84091
|
84091
84091-30381 Switch Set, Satellite[05.2000 - 08.2001] JZS175 |
84091-30381 |
US $43.97 |
||
|
84110C
|
84110C
84110-30100
Switch Assy, Light Control, No.2
[09.1999 - 05.2000] JZS175 |
84110-30100 |
— | ||
| replacement | |||||
|
84110C
|
84110C
84110-30101
Switch Assy, Light Control, No.2
[09.1999 - 05.2000] JZS175 |
84110-30101 |
— | ||
|
84110C
|
84110C
84110-30101
Switch Assy, Light Control, No.2
[05.2000 - 08.2001] JZS175 |
84110-30101 |
— | ||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[09.1999 - 08.2001] JZS175 |
84242-20030 |
US $18.35 |
||
|
84330
|
84330
84332-30280-B0 Switch Assy, Hazard Warning Signal[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
84332-30280-B0 |
US $57.51 |
||
| replacement | |||||
|
84330
|
84330
84332-30280-C0 Switch Assy, Hazard Warning Signal[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
84332-30280-C0 |
US $57.51 |
||
|
84330
|
84330
84332-30280-E0 Switch Assy, Hazard Warning Signal[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
84332-30280-E0 |
US $57.51 |
||
| replacement | |||||
|
84330
|
84330
84332-30280-C0 Switch Assy, Hazard Warning Signal[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
84332-30280-C0 |
US $57.51 |
||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[09.1999 - 08.2001] JZS175 14V 0.91W |
84999-10860 |
from US $4.84 |
||
|
84660R
|
84660R
84660-30180 Switch, Cooler(Rear)[09.1999 - 08.2001] JZS175 W(REAR AIR CONDITIONER & REAR RADIO SW & REAR SUN SHADE) |
84660-30180 |
US $244.61 |
||
|
84660R
|
84660R
84660-30190 Switch, Cooler(Rear)[09.1999 - 08.2001] JZS175 W(REAR AIR CONDITIONER & REAR RADIO SW) |
84660-30190 |
US $238.78 |
||
|
84660R
|
84660R
84660-30210 Switch, Cooler(Rear)[09.1999 - 08.2001] JZS175 W(REAR RADIO SW) |
84660-30210 |
US $203.84 |
||
|
84660R
|
84660R
84660-30220 Switch, Cooler(Rear)[09.1999 - 08.2001] JZS175 W(REAR RADIO SW & REAR SUN SHADE) |
84660-30220 |
US $216.94 |
||
|
84720A
|
84720A
84720-22190 Switch Assy, Pattern Select[09.1999 - 08.2001] JZS175 |
84720-22190 |
US $47.76 |
||
|
84720B
|
84720B
84999-10710 Bulb, Throttle Position Switch[09.1999 - 08.2001] JZS175 14V 0.56W |
84999-10710 |
from US $6 |
||
|
84720F
|
84720F
84998-10670 Cap, Throttle Position Switch Bulb[09.1999 - 08.2001] JZS175 |
84998-10670 |
US $4.12 |
||
|
84840D
|
84840D
84840-30170 Switch Assy, Luggage Door Opening[09.1999 - 08.2001] JZS175 |
84840-30170 |
US $41.93 |
||
|
84841A
|
84841A
84841-30040-A0 Switch, Fuel Lid Opener[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
84841-30040-A0 |
US $49.65 |
||
| replacement | |||||
|
84841A
|
84841A
84841-30040-C0 Switch, Fuel Lid Opener[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
84841-30040-C0 |
US $49.65 |
||
|
84841A
|
84841A
84841-30040-B3 Switch, Fuel Lid Opener[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
84841-30040-B3 |
US $49.65 |
||
| replacement | |||||
|
84841A
|
84841A
84841-30040-C0 Switch, Fuel Lid Opener[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
84841-30040-C0 |
US $49.65 |
||
|
84870A
|
84870A
84870-30480-A0 Switch Assy, Outer Mirror[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
84870-30480-A0 |
US $109.20 |
||
| replacement | |||||
|
84870A
|
84870A
84870-30482-A0 Switch Assy, Outer Mirror[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
84870-30482-A0 |
US $94.64 |
||
|
84870A
|
84870A
84870-30480-B1
Switch Assy, Outer Mirror
[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
84870-30480-B1 |
— | ||
| replacement | |||||
|
84870A
|
84870A
84870-30482-B0 Switch Assy, Outer Mirror[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
84870-30482-B0 |
US $92.60 |
||
|
84870A
|
84870A
84870-30481-A0
Switch Assy, Outer Mirror
[08.2001 - 12.2003] JZS175 IVORY,TRIM0# |
84870-30481-A0 |
— | ||
| replacement | |||||
|
84870A
|
84870A
84870-30481-C0 Switch Assy, Outer Mirror (Black)[08.2001 - 12.2003] JZS175 IVORY,TRIM0# |
84870-30481-C0 |
US $110.66 |
||
|
84870A
|
84870A
84870-30481-B1 Switch Assy, Outer Mirror[08.2001 - 12.2003] JZS175 MD.CHARCOAL,TRIM1# |
84870-30481-B1 |
US $110.66 |
||
| replacement | |||||
|
84870A
|
84870A
84870-30481-C0 Switch Assy, Outer Mirror (Black)[08.2001 - 12.2003] JZS175 MD.CHARCOAL,TRIM1# |
84870-30481-C0 |
US $110.66 |
||
|
84870A
|
84870A
84870-30510-A0 Switch Assy, Outer Mirror[08.2001 - 12.2003] JZS175 W(SEAT MEMORY SWITCH),IVORY,TRIM0# |
84870-30510-A0 |
US $147.06 |
||
| replacement | |||||
|
84870A
|
84870A
84870-30510-C0 Switch Assy, Outer Mirror[08.2001 - 12.2003] JZS175 W(SEAT MEMORY SWITCH),IVORY,TRIM0# |
84870-30510-C0 |
US $147.06 |
||
|
84870A
|
84870A
84870-30510-B0 Switch Assy, Outer Mirror[08.2001 - 12.2003] JZS175 W(SEAT MEMORY SWITCH),MD.CHARCOAL,TRIM1# |
84870-30510-B0 |
US $147.06 |
||
| replacement | |||||
|
84870A
|
84870A
84870-30510-C0 Switch Assy, Outer Mirror[08.2001 - 12.2003] JZS175 W(SEAT MEMORY SWITCH),MD.CHARCOAL,TRIM1# |
84870-30510-C0 |
US $147.06 |
||
|
84870B
|
84870B
84999-10470 Bulb, Hazard Warning Signal Switch[08.2001 - 12.2003] JZS175 14V 1.12W |
84999-10470 |
from US $4.92 |
||
|
84870C
|
84870C
84998-10430 Cap, Outer Mirror Switch Bulb[08.2001 - 12.2003] JZS175 |
84998-10430 |
from US $1.71 |
||
|
84870D
|
84870D
84872-30020 Switch Assy, Outer Mirror, No.2[08.2001 - 12.2003] JZS175 |
84872-30020 |
US $100.04 |
||
|
84940D
|
84940D
84940-30020 Switch Assy, Rear Sun Shade[09.1999 - 08.2001] JZS175 |
84940-30020 |
US $57.37 |
||
|
84940E
|
84940E
90010-01039 Blub, Center Cluster Module Switch[09.1999 - 08.2001] JZS175 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.08 |
||
|
85500
|
85500
85500-30500 Lighter Assy, Cigarette[09.1999 - 08.2001] JZS175 |
85500-30500 |
US $49.21 |
||
|
85500B
|
85500B
84999-10440 Bulb, Heater Blower Switch[09.1999 - 08.2001] JZS175 14V 2.0W |
84999-10440 |
US $5.91 |
||
|
85500F
|
85500F
84998-10530 Cap Bulb[09.1999 - 08.2001] JZS175 |
84998-10530 |
US $3.14 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[09.1999 - 08.2001] JZS175 |
85520-89101 |
from US $16.74 |
||
|
85531
|
85531
85531-30010 Socket, Power Outlet[09.1999 - 08.2001] JZS175 |
85531-30010 |
US $33.20 |
||
|
85535B
|
85535B
86831-30010 Cover, Power Outlet Socket, No.1[09.1999 - 08.2001] JZS175 |
86831-30010 |
US $8.30 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
