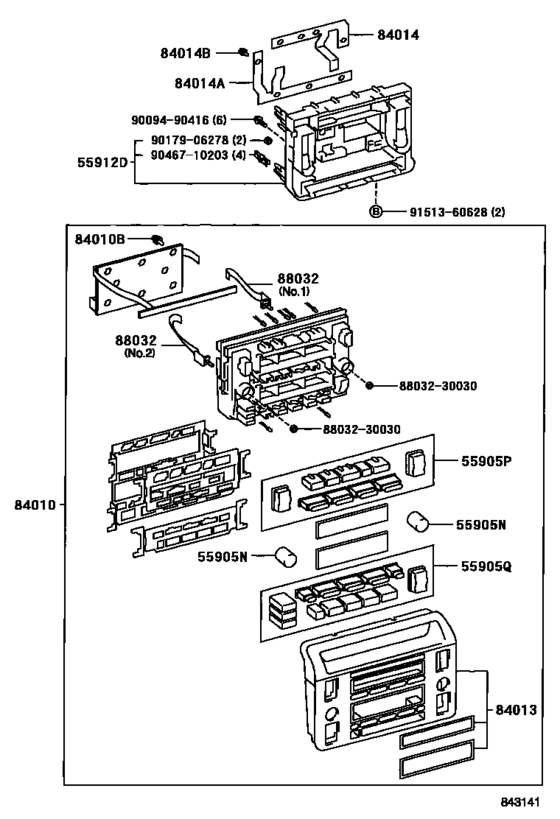

Switch & Relay & Computer ([09.1999 - 12.2003] INTEGRATION PANEL (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905N
|
55905N
55905-30320
Knob Sub-Assy, Control, No.1
[09.1999 - 08.2001] JZS175 |
55905-30320 |
— | ||
|
55905N
|
55905N
55905-30321
Knob Sub-Assy, Control, No.1
[08.2001 - 12.2003] JZS175 |
55905-30321 |
— | ||
|
55905P
|
55905P
55905-30400
Knob Sub-Assy, Control, No.2
[09.1999 - 08.2001] JZS175 W(REAR AIR CONDITIONER) |
55905-30400 |
— | ||
|
55905P
|
55905P
55905-30401
Knob Sub-Assy, Control, No.2
[08.2001 - 12.2003] JZS175 W(REAR AIR CONDITIONER) |
55905-30401 |
— | ||
|
55905P
|
55905P
55905-30410
Knob Sub-Assy, Control, No.2
[09.1999 - 08.2001] JZS175 |
55905-30410 |
— | ||
|
55905P
|
55905P
55905-30411
Knob Sub-Assy, Control, No.2
[08.2001 - 12.2003] JZS175 |
55905-30411 |
— | ||
|
55905Q
|
55905Q
55905-30390
Knob Sub-Assy, Control, No.3
[09.1999 - 08.2001] JZS175 |
55905-30390 |
— | ||
|
55905Q
|
55905Q
55905-30391
Knob Sub-Assy, Control, No.3
[08.2001 - 12.2003] JZS175 |
55905-30391 |
— | ||
|
55912D
|
55912D
55912-30060
Housing, Heater Control
[09.1999 - 08.2001] JZS175 |
55912-30060 |
— | ||
|
84010
|
84010
84012-30050
Switch Assy, Center Cluster Integration
[09.1999 - 08.2001] JZS175 W(REAR AIR CONDITIONER) |
84012-30050 |
— | ||
|
84010
|
84010
84012-30051
Switch Assy, Center Cluster Integration
[08.2001 - 12.2003] JZS175 W(REAR AIR CONDITIONER) |
84012-30051 |
— | ||
|
84010
|
84010
84012-30060
Switch Assy, Center Cluster Integration
[09.1999 - 08.2001] JZS175 |
84012-30060 |
— | ||
|
84010
|
84010
84012-30061
Switch Assy, Center Cluster Integration
[08.2001 - 12.2003] JZS175 |
84012-30061 |
— | ||
|
84010B
|
84010B
90010-03034
Bulb, Air Conditioner Control
[09.1999 - 08.2001] JZS175 14V 1.4W |
90010-03034 |
— | ||
|
84010B
|
84010B
90010-03035
Bulb, Integration Control & Panel
[09.1999 - 08.2001] JZS175 14V 1.12W |
90010-03035 |
— | ||
|
84013
|
84013
84013-30030
Panel Sub-Assy, Integration
[09.1999 - 08.2001] JZS175 |
84013-30030 |
— | ||
|
84013
|
84013
84013-30031
Panel Sub-Assy, Integration
[08.2001 - 12.2003] JZS175 |
84013-30031 |
— | ||
|
84014
|
84014
84734-30010
Board Sub-Assy, Printed Wire Integration
[09.1999 - 08.2001] JZS175 |
84734-30010 |
— | ||
|
84014A
|
84014A
84734-30020
Board Sub-Assy, Printed Wire Integration, No.2
[09.1999 - 08.2001] JZS175 |
84734-30020 |
— | ||
|
84014B
|
84014B
90010-03034
Bulb, Air Conditioner Control
[09.1999 - 08.2001] JZS175 14V 1.4W |
90010-03034 |
— | ||
|
88032
|
88032
88032-30010
Switch, Heater Control Volume
[09.1999 - 08.2001] JZS175 NO.1 |
88032-30010 |
— | ||
|
88032
|
88032
88032-30020
Switch, Heater Control Volume
[09.1999 - 08.2001] JZS175 NO.2 |
88032-30020 |
— | ||
|
8803230030
|
8803230030
88032-30030
Switch, Heater Control Volume
|
88032-30030 |
— | ||
|
9009490416
|
9009490416
90094-90416
New Genuine Part
|
90094-90416 |
— | ||
|
9017906278
|
9017906278
90179-06278 NUT |
90179-06278 |
US $1.79 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9151360628
|
9151360628
91513-60628 Bolt(For Cylinder Head Cover) |
91513-60628 |
US $1.46 |
||
| replacement | |||||
|
9151360628
|
9151360628
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.76 |
||
