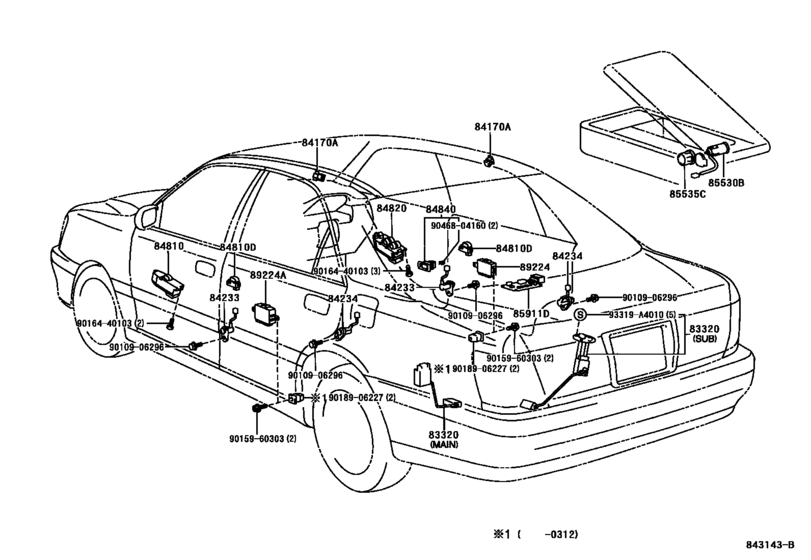

Switch & Relay & Computer ([09.1999 - 12.2003] ROOF,DOOR,SEAT & FLOOR (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-51010 Gage Assy, Fuel Sender[09.1999 - 08.2001] JZS175 MAIN |
83320-51010 |
from US $60.06 |
||
|
83320
|
83320
83320-59095 Gage Assy, Fuel Sender[09.1999 - 08.2001] JZS175 SUB |
83320-59095 |
US $72.74 |
||
|
84170A
|
84170A
84170-30020-A0 Switch Assy, Room Lamp No.1[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
84170-30020-A0 |
US $49.65 |
||
|
84170A
|
84170A
84170-30020-B2 Switch Assy, Room Lamp No.1[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
84170-30020-B2 |
US $49.65 |
||
|
84233
|
84233
84231-30290 Switch Assy, Courtesy Lamp (For Front Door)[09.1999 - 08.2001] JZS175 |
84231-30290 |
US $14.41 |
||
| replacement | |||||
|
84233
|
84233
84231-30280 Switch Assy, Courtesy Lamp (For Rear Door)[09.1999 - 08.2001] JZS175 |
84231-30280 |
US $17.98 |
||
|
84234
|
84234
84231-30280 Switch Assy, Courtesy Lamp (For Rear Door)[09.1999 - 08.2001] JZS175 |
84231-30280 |
US $17.98 |
||
|
84810
|
84810
84030-30040 Switch Assy, Power Window Regulator[09.1999 - 11.1999] JZS175 |
84030-30040 |
US $144.14 |
||
| replacement | |||||
|
84810
|
84810
84030-30041 Switch Assy, Power Window Regulator[09.1999 - 11.1999] JZS175 |
84030-30041 |
US $144.14 |
||
|
84810
|
84810
84030-30041 Switch Assy, Power Window Regulator[11.1999 - 08.2001] JZS175 |
84030-30041 |
US $144.14 |
||
|
84810
|
84810
84030-30062 Switch Assy, Power Window Regulator[08.2001 - 12.2003] JZS175 |
84030-30062 |
US $165.98 |
||
|
84810D
|
84810D
84030-30020-C0 Switch Assy,multiplex Network[08.2001 - 12.2003] JZS175 BLACK,TRIM0#,1# |
84030-30020-C0 |
US $75.71 |
||
|
84810D
|
84810D
84030-30050 Switch Assy, Power Window Regulator, Rear[09.1999 - 08.2001] JZS175 |
84030-30050 |
US $47.90 |
||
|
84820
|
84820
84040-30070 Master Switch Assy, Power Window Regulator[09.1999 - 11.1999] JZS175 |
84040-30070 |
US $426.61 |
||
| replacement | |||||
|
84820
|
84820
84040-30071 Master Switch Assy, Power Window Regulator[09.1999 - 11.1999] JZS175 |
84040-30071 |
US $460.10 |
||
|
84820
|
84820
84040-30071 Master Switch Assy, Power Window Regulator[11.1999 - 08.2001] JZS175 |
84040-30071 |
US $460.10 |
||
|
84820
|
84820
84040-30082 Master Switch Assy, Power Window Regulator[08.2001 - 12.2003] JZS175 |
84040-30082 |
US $413.50 |
||
|
84840
|
84840
84840-30140-A0 Switch Assy, Luggage Compartment Door Opening[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
84840-30140-A0 |
US $49.65 |
||
| replacement | |||||
|
84840
|
84840
84840-30140-C0 Switch Assy, Luggage Compartment Door Opening[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
84840-30140-C0 |
US $51.41 |
||
|
84840
|
84840
84840-30140-B3 Switch Assy, Luggage Compartment Door Opening[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
84840-30140-B3 |
US $49.65 |
||
| replacement | |||||
|
84840
|
84840
84840-30140-B6 Switch Assy, Luggage Compartment Door Opening[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
84840-30140-B6 |
US $41.35 |
||
|
85530B
|
85530B
85530-30010 Socket Assy, Power Outlet, Rear No.1[09.1999 - 08.2001] JZS175 |
85530-30010 |
US $36.52 |
||
|
85535C
|
85535C
85535-30010 Cover, Power Outlet Socket, Rear[09.1999 - 08.2001] JZS175 |
85535-30010 |
US $11.65 |
||
|
85911D
|
85911D
85911-30010 Relay, Rear Sunshade[09.1999 - 08.2001] JZS175 |
85911-30010 |
US $313.04 |
||
|
89224
|
89224
89224-30020 Computer, Multiplex Network Door, Rear Rh[09.1999 - 08.2001] JZS175 |
89224-30020 |
US $390.21 |
||
|
89224
|
89224
89224-30031 Computer, Multiplex Network Door, Rear Rh[08.2001 - 12.2003] JZS175 |
89224-30031 |
US $413.50 |
||
|
89224A
|
89224A
89224-30020 Computer, Multiplex Network Door, Rear Rh[09.1999 - 08.2001] JZS175 |
89224-30020 |
US $390.21 |
||
|
89224A
|
89224A
89224-30031 Computer, Multiplex Network Door, Rear Rh[08.2001 - 12.2003] JZS175 |
89224-30031 |
US $413.50 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.67 |
||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.61 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.65 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.96 |
||
