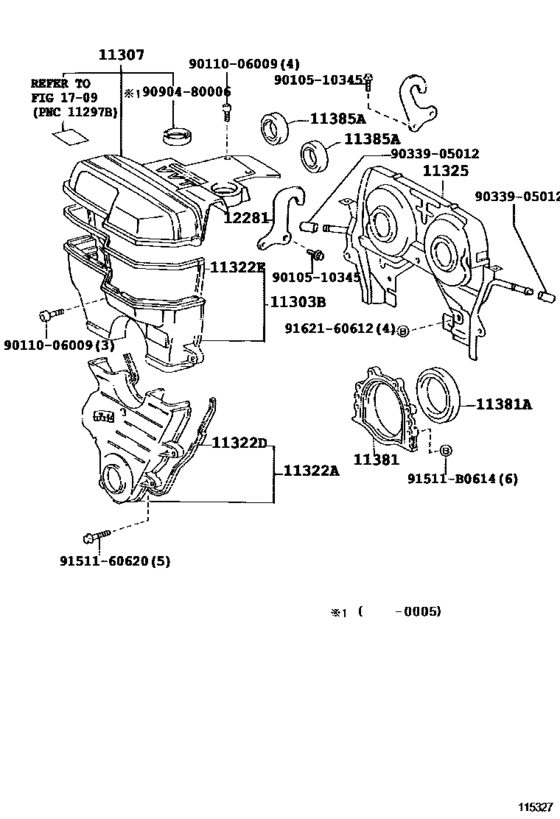

Timing Gear Cover & Rear End Plate ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11303B
|
11303B
11303-46040 Cover Sub-Assy, Timing Belt, No.2[09.1999 - 08.2001] 2JZGE..JZS175 |
11303-46040 |
from US $55.10 |
||
|
11307
|
11307
11304-46060 Cover, Sub-Assy, Timing Belt, No.3[09.1999 - 08.2001] 2JZGE..JZS175 |
11304-46060 |
US $90.20 |
||
|
11322A
|
11322A
11302-46031 Cover, Timing Belt, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
11302-46031 |
from US $52.46 |
||
|
11322D
|
11322D
11328-46041 Gasket, Timing Belt Cover, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
11328-46041 |
from US $22.18 |
||
|
11322E
|
11322E
11329-46040 Gasket, Timing Belt Cover, No.2[09.1999 - 08.2001] 2JZGE..JZS175 |
11329-46040 |
US $16.67 |
||
|
11325
|
11325
11325-46042 Cover, Timing Belt, No.4[09.1999 - 08.2001] 2JZGE..JZS175 |
11325-46042 |
US $64.50 |
||
|
11381
|
11381
11381-46010 Retainer, Engine Rear Oil Seal[09.1999 - 08.2001] 2JZGE..JZS175 |
11381-46010 |
from US $29.01 |
||
|
11381A
|
11381A
90311-90006 Seal, Engine Rear Oil[09.1999 - 08.2001] 2JZGE..JZS175 |
90311-90006 |
from US $25.37 |
||
|
11385A
|
11385A
90311-40020 Seal, Oil(For Camshaft)[09.1999 - 08.2001] 2JZGE..JZS175 |
90311-40020 |
from US $4.84 |
||
|
12281
|
12281
12281-46050 Hanger, Engine, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
12281-46050 |
US $26.38 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9010510345
|
9010510345
90105-10345 New Genuine Part |
90105-10345 |
US $3.58 |
||
|
9011006009
|
9011006009
90110-06009 Bolt |
90110-06009 |
from US $0.65 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.81 |
||
|
9090480006
|
9090480006
90904-80006 GROMMET |
90904-80006 |
from US $10.74 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.70 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
