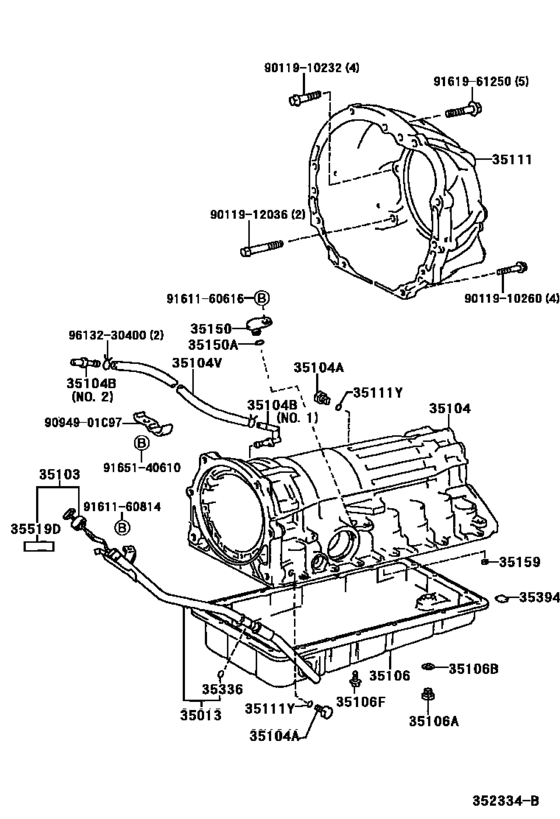

Transmission Case & Oil Pan (Atm) ([09.1999 - 12.2003] A340E (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35013
|
35013
35013-30550 Tube Sub-Assy, Transmission Oil Filler[09.1999 - 08.2001] JZS175 |
35013-30550 |
US $44.12 |
||
| replacement | |||||
|
35013
|
35013
35013-35070 Tube Sub-Assy, Transmission Oil Filler[09.1999 - 08.2001] JZS175 |
35013-35070 |
US $55.18 |
||
|
35103
|
35103
35103-30670 Gage Sub-Assy, Transmission Oil LevelTRANSMISSION OIL LEVEL [09.1999 - 08.2001] JZS175 |
35103-30670 |
US $15.58 |
||
|
35104
|
35104
35104-22070 Case Sub-Assy, Automatic Transmission[08.2000 - 08.2001] JZS175 |
35104-22070 |
US $607.15 |
||
|
35104
|
35104
35104-30170 Case Sub-Assy, Automatic Transmission[09.1999 - 08.2000] JZS175 |
35104-30170 |
US $963.87 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[09.1999 - 08.2001] JZS175 |
90341-08001 |
from US $1.48 |
||
|
35104B
|
35104B
90930-03098 Plug, Breather, No.1 (Atm)[09.1999 - 08.2001] JZS175 NO.1 |
90930-03098 |
from US $7.01 |
||
|
35104B
|
35104B
90930-03099 Plug, Breather, No.1 (Atm)[09.1999 - 12.2000] JZS175 NO.2 |
90930-03099 |
US $7.86 |
||
|
35104B
|
35104B
90930-03168 Plug, Breather, No.1 (Atm)[12.2000 - 08.2001] JZS175 NO.2 |
90930-03168 |
US $6.45 |
||
|
35104V
|
35104V
90445-10020 Hose (For Breather Plug)[09.1999 - 08.2001] JZS175 |
90445-10020 |
US $4.54 |
||
|
35104V
|
35104V
90445-11154 Hose (For Breather Plug)[03.2002 - 12.2003] JZS175 |
90445-11154 |
US $4.66 |
||
|
35106
|
35106
35106-30130 Pan Sub-Assy, Automatic Transmission Oil[09.1999 - 08.2001] JZS175 |
35106-30130 |
US $89.11 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.2001 - 12.2003] JZS175 |
90341-10011 |
from US $1.79 |
||
|
35106A
|
35106A
90341-10018
Plug Sub-Assy, Drain (Atm)
[09.1999 - 08.2001] JZS175 |
90341-10018 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[09.1999 - 08.2001] JZS175 |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[04.2003 - 12.2003] JZS175 |
35178-30010 |
from US $1.63 |
||
|
35106B
|
35106B
35178-50010
Gasket, Drain Plug (Atm)
[09.1999 - 08.2001] JZS175 |
35178-50010 |
— | ||
| replacement | |||||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[09.1999 - 08.2001] JZS175 |
35178-30010 |
from US $1.63 |
||
|
35106F
|
35106F
90119-06513 Bolt (For Automatic Transmission Oil Pan)[09.1999 - 08.2001] JZS175 |
90119-06513 |
US $1.61 |
||
|
35111
|
35111
35111-30150 Housing, Automatic Transmission[09.1999 - 08.2001] JZS175 |
35111-30150 |
US $428.06 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[09.1999 - 08.2001] JZS175 |
90301-06196 |
from US $2.36 |
||
|
35150
|
35150
35150-30010 Plug Assy, Transmission Case[09.1999 - 08.2000] JZS175 |
35150-30010 |
US $17.38 |
||
|
35150A
|
35150A
90301-09012 Ring, O (For Automatic Transmission Case Plug)[09.1999 - 08.2000] JZS175 |
90301-09012 |
US $3.94 |
||
|
35159
|
35159
35159-30010 Gasket, Brake Drum[09.1999 - 08.2001] JZS175 |
35159-30010 |
US $13.26 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[09.1999 - 08.2001] JZS175 |
90301-09173 |
from US $1.96 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[09.1999 - 08.2001] JZS175 |
35394-30011 |
from US $5.43 |
||
|
35519D
|
35519D
35519-20030 Label, Automatic Transmission Information[09.1999 - 08.2001] JZS175 |
35519-20030 |
US $4.08 |
||
|
9094901C97
|
9094901C97
90949-01C97 New Genuine Part |
90949-01C97 |
US $8.44 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910260
|
9011910260
90119-10260 Bolt (For Transmission Housing & Engine Setting) |
90119-10260 |
from US $2.05 |
||
|
9011912036
|
9011912036
90119-12036 Bolt (For Transmission Housing & Case Setting) |
90119-12036 |
US $1.89 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
||
