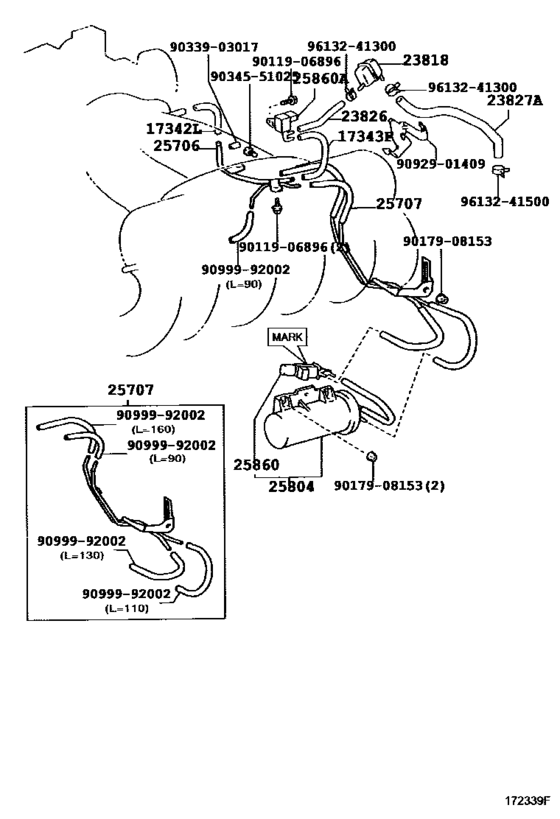

Vacuum Piping ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17342L
|
17342L
17342-46170 Hose, Air, No.2[09.1999 - 08.2001] 2JZGE..JZS175 |
17342-46170 |
US $16.84 |
||
|
17343F
|
17343F
17343-46100 Hose, Air, No.3[09.1999 - 08.2001] 2JZGE..JZS175 |
17343-46100 |
US $16.84 |
||
|
23818
|
23818
23818-46110 Pipe, Fuel Vapor Feed[09.1999 - 08.2001] 2JZGE..JZS175 |
23818-46110 |
from US $8.02 |
||
|
23826
|
23826
23826-46030 Hose, Fuel Vapor Feed, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
23826-46030 |
US $11.11 |
||
|
23827A
|
23827A
23827-46080 Hose, Fuel Vapor Feed, No.2[09.1999 - 08.2001] 2JZGE..JZS175 |
23827-46080 |
US $19.57 |
||
|
25706
|
25706
25706-46090 Pipe Sub-Assy, Vacuum Transmitting, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
25706-46090 |
US $42.66 |
||
|
25707
|
25707
25707-46090 Pipe Sub-Assy, Vacuum Transmitting, No.2[09.1999 - 08.2001] 2JZGE..JZS175 |
25707-46090 |
US $244.61 |
||
|
25804
|
25804
25804-46060 Valve Set, Vacuum Control[09.1999 - 08.2001] 2JZGE..JZS175 |
25804-46060 |
US $244.61 |
||
|
25860
|
25860
25860-46010 Valve Assy, Vacuum Switching, No.1[09.1999 - 08.2001] 2JZGE..JZS175 MARK 25860-46010 |
25860-46010 |
from US $51.91 |
||
|
25860
|
25860
90910-12124 Valve Assy, Vacuum Switching, No.1[09.1999 - 08.2001] 2JZGE..JZS175 MARK 90910-12124 |
90910-12124 |
US $49.97 |
||
|
25860A
|
25860A
90910-12188 Valve, Vacuum Switching, No.1[09.1999 - 12.2000] 2JZGE..JZS175 |
90910-12188 |
US $74.26 |
||
|
25860A
|
25860A
90910-12243 Valve, Vacuum Switching, No.1[12.2000 - 08.2001] 2JZGE..JZS175 |
90910-12243 |
US $90.20 |
||
|
9011906896
|
9011906896
90119-06896
New Genuine Part
|
90119-06896 |
— | ||
| replacement | |||||
|
9011906896
|
9011906896
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9033903017
|
9033903017
90339-03017 Plug |
90339-03017 |
US $1.79 |
||
|
9034551025
|
9034551025
90345-51025 Plug, W/head Taper Screw, No.2 |
90345-51025 |
US $3.76 |
||
|
9092901409
|
9092901409
90929-01409 New Genuine Part |
90929-01409 |
US $5.24 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9613241300
|
9613241300
96132-41300
Clip, No.4(For Idle-Up Hose)
|
96132-41300 |
— | ||
| replacement | |||||
|
9613241300
|
9613241300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9613241500
|
9613241500
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
from US $1.44 |
||
