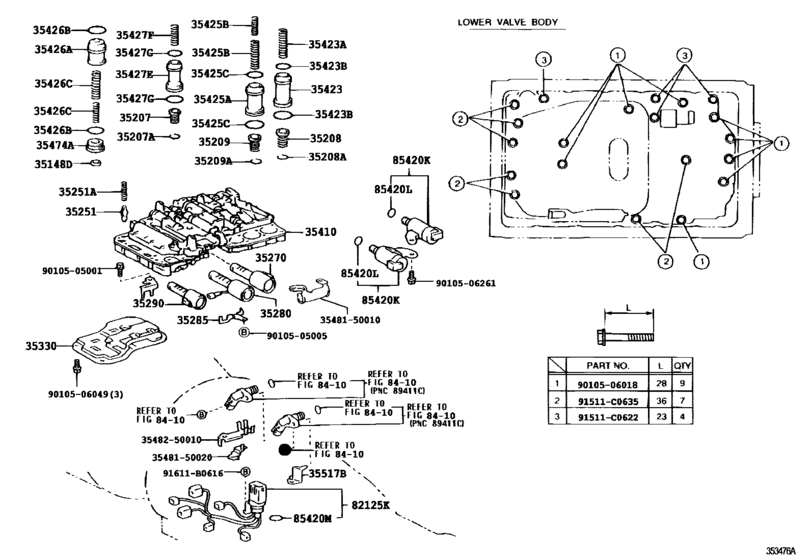

Valve Body & Oil Strainer (Atm) ([08.2001 - ] A340E (0108- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35148D
|
35148D
35148-16010 Gasket (For Automatic Transfer Case)[09.1999 - 08.2001] JZS175 |
35148-16010 |
US $8.56 |
||
|
35207
|
35207
35207-50010 Spring Sub-Assy, B-0 Accumulator[09.1999 - 08.2001] JZS175 |
35207-50010 |
US $2.04 |
||
|
35207A
|
35207A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[09.1999 - 08.2001] JZS175 |
90521-22004 |
from US $1.24 |
||
|
35208
|
35208
35208-30010 Spring Sub-Assy, B-2 Accumulator[09.1999 - 08.2001] JZS175 |
35208-30010 |
US $2.62 |
||
|
35208A
|
35208A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[09.1999 - 08.2001] JZS175 |
90521-22004 |
from US $1.24 |
||
|
35209
|
35209
35209-50010 Spring Sub-Assy, C-2 Accumulator[09.1999 - 08.2001] JZS175 |
35209-50010 |
US $3.67 |
||
|
35209A
|
35209A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[09.1999 - 08.2001] JZS175 |
90521-22004 |
from US $1.24 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[09.1999 - 08.2001] JZS175 |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[09.1999 - 08.2001] JZS175 |
90501-03005 |
from US $0.79 |
||
|
35270
|
35270
35270-14010 Solenoid Assy, Shift Control[09.1999 - 08.2001] JZS175 |
35270-14010 |
US $126.28 |
||
|
35280
|
35280
35280-30020 Solenoid Assy, Lock Up Control[09.1999 - 08.2001] JZS175 |
35280-30020 |
US $125.80 |
||
|
35285
|
35285
35285-30040 Plate, Solenoid Lock[09.1999 - 08.2001] JZS175 |
35285-30040 |
US $2.04 |
||
|
35290
|
35290
35290-60020 Solenoid Assy, Line Pressure Control[09.1999 - 08.2001] JZS175 |
35290-60020 |
US $171.20 |
||
|
35330
|
35330
35330-50010 Strainer Assy, Valve Body Oil[09.1999 - 08.2001] JZS175 |
35330-50010 |
from US $56.16 |
||
|
35410
|
35410
35410-3A090 Body Assy, Transmission ValveTRANSMISSION VALVE [09.1999 - 08.2001] JZS175 |
35410-3A090 |
US $1,557.92 |
||
|
35423
|
35423
35423-30030 Piston, B-2 Accumulator[09.1999 - 08.2001] JZS175 |
35423-30030 |
US $17.65 |
||
|
35423A
|
35423A
90501-24014 Spring, Compression (For B-2 Accumulator Piston)[09.1999 - 08.2001] JZS175 |
90501-24014 |
US $3.93 |
||
|
35423B
|
35423B
90301-23010 Ring (For Accumulator Piston No.1)[09.1999 - 08.2001] JZS175 UPPER |
90301-23010 |
from US $1.79 |
||
|
35423B
|
35423B
90301-31010 Ring, O (For B-2 Accumulator Piston)[09.1999 - 08.2001] JZS175 LOWER |
90301-31010 |
US $2.87 |
||
|
35425A
|
35425A
35425-30020 Piston, C-2 Accumulator[09.1999 - 08.2001] JZS175 |
35425-30020 |
US $13.28 |
||
|
35425B
|
35425B
90501-22016 Spring, Compression (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS175 OUTER |
90501-22016 |
US $2.62 |
||
|
35425B
|
35425B
90501-28013 Spring, Compression (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS175 INNER |
90501-28013 |
US $3.49 |
||
|
35425C
|
35425C
90301-25010 Ring, O(For Oil Pump Suction Pipe)[09.1999 - 08.2001] JZS175 UPPER |
90301-25010 |
US $1.22 |
||
|
35425C
|
35425C
90301-31010 Ring, O (For B-2 Accumulator Piston)[09.1999 - 08.2001] JZS175 LOWER |
90301-31010 |
US $2.87 |
||
|
35426A
|
35426A
35426-50010
Piston, C-0 Accumulator
[09.1999 - 08.2001] JZS175 |
35426-50010 |
— | ||
|
35426B
|
35426B
90301-24010 Ring, O (For C-0 Accumulator Piston)[09.1999 - 08.2001] JZS175 |
90301-24010 |
US $2.06 |
||
|
35426C
|
35426C
90501-18120 Spring, Compression (For C-0 Accumulator Piston)[09.1999 - 08.2001] JZS175 INNER |
90501-18120 |
US $3.93 |
||
|
35426C
|
35426C
90501-20163 Spring, Compression (For C-0 Accumulator Piston)[09.1999 - 08.2001] JZS175 OUTER |
90501-20163 |
US $3.93 |
||
|
35427E
|
35427E
35427-30040 Piston, B-0 Accumulator[09.1999 - 08.2001] JZS175 |
35427-30040 |
US $15.55 |
||
|
35427F
|
35427F
90501-22048 Spring, Compression (For B-0 Accumulator Piston)[09.1999 - 08.2001] JZS175 |
90501-22048 |
US $2.62 |
||
|
35427G
|
35427G
90301-20008 Ring, O (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS175 UPPER |
90301-20008 |
from US $1.79 |
||
|
35427G
|
35427G
90301-26011 Ring, O (For C-3 Accumulator Piston)[09.1999 - 08.2001] JZS175 LOWER |
90301-26011 |
US $1.79 |
||
|
35474A
|
35474A
35474-30010
Cover, Accumulator
[09.1999 - 08.2001] JZS175 |
35474-30010 |
— | ||
|
35517B
|
35517B
35517-50010 Plate, Transmission Wire Lock[09.1999 - 08.2001] JZS175 |
35517-50010 |
US $3.49 |
||
|
82125K
|
82125K
82125-31010 Wire, Transmission[05.2001 - 08.2001] JZS175 |
82125-31010 |
US $38.44 |
||
|
82125K
|
82125K
82125-40050 Wire, Transmission[09.1999 - 05.2001] JZS175 |
82125-40050 |
US $24.46 |
||
|
85420K
|
85420K
85420-50020 Solenoid Assy, Transmission[09.1999 - 08.2001] JZS175 |
85420-50020 |
US $227.14 |
||
|
85420L
|
85420L
90301-06004 Ring, O No.3(For Transmission Solenoid)[09.1999 - 08.2001] JZS175 |
90301-06004 |
from US $2.15 |
||
|
85420M
|
85420M
96721-24018 Ring, O[09.1999 - 08.2001] JZS175 |
96721-24018 |
from US $3.69 |
||
|
91511C0622
|
91511C0622
91511-C0622 Strainer Bolt |
91511-C0622 |
US $1.08 |
||
|
91511C0635
|
91511C0635
91511-C0635 BOLT FLANGE |
91511-C0635 |
US $1.79 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
3548150010
|
3548150010
35481-50010 Body, Governor |
35481-50010 |
US $3.20 |
||
|
3548150020
|
3548150020
35481-50020 Body, Governor |
35481-50020 |
US $6.70 |
||
|
3548250010
|
3548250010
35482-50010 Valve, Governor |
35482-50010 |
US $10.63 |
||
|
9010505001
|
9010505001
90105-05001 New Genuine Part |
90105-05001 |
US $1.51 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010506018
|
9010506018
90105-06018 Bolt (For Throttle Valve Cam Set) |
90105-06018 |
US $0.96 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.25 |
||
|
9010506261
|
9010506261
90105-06261 Bolt(For Manual Detent Spring) |
90105-06261 |
US $0.73 |
