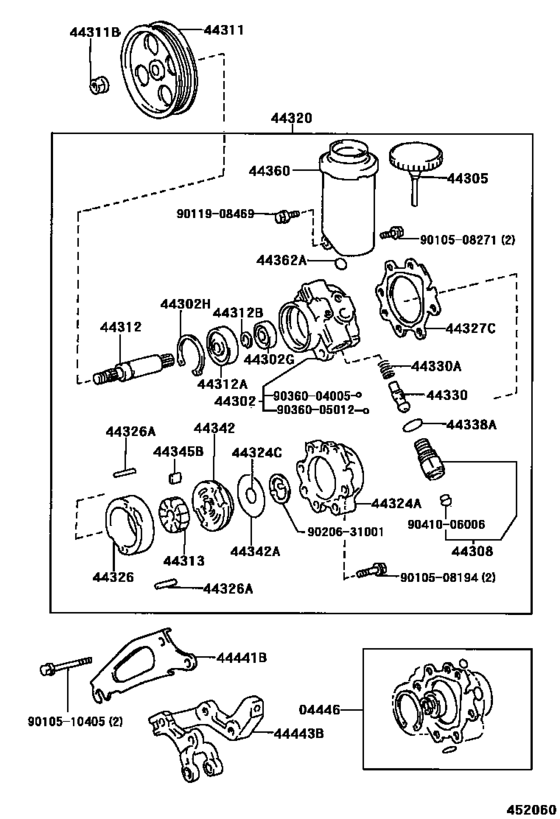

Vane Pump & Reservoir (Power Steering) ([09.1999 - 08.2001] (9909-0108)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-30120 Gasket Kit, Power Steering Pump[09.1999 - 08.2001] JZS175 |
04446-30120 |
from US $29.98 |
||
|
44302
|
44302
44302-30120 Housing Sub-Assy, Vane Pump, Front[09.1999 - 08.2001] JZS175 |
44302-30120 |
US $267.90 |
||
|
44302G
|
44302G
90311-17007 Seal, Oil, No.2(For Vane Pump Housing)[09.1999 - 08.2001] JZS175 |
90311-17007 |
from US $3.40 |
||
|
44302H
|
44302H
90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)[09.1999 - 08.2001] JZS175 |
90521-44002 |
from US $2.93 |
||
|
44305
|
44305
44305-50010
Cap Sub-Assy, Vane Pump Oil Reservoir
[09.1999 - 08.2001] JZS175 |
44305-50010 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-50020 Cap Sub-Assy, Vane Pump Oil Reservoir[09.1999 - 08.2001] JZS175 |
44305-50020 |
from US $27.65 |
||
|
44308
|
44308
44308-22110
Union Sub-Assy, Pressure Port
[09.1999 - 08.2001] JZS175 |
44308-22110 |
— | ||
|
44311
|
44311
44311-22091 Pulley, Vane Pump[09.1999 - 08.2001] JZS175 |
44311-22091 |
US $134.48 |
||
|
44311B
|
44311B
90178-12003 Nut(For Vane Pump Pulley)[09.1999 - 08.2001] JZS175 |
90178-12003 |
from US $0.89 |
||
|
44312
|
44312
44312-26020 Shaft, Vane Pump[09.1999 - 08.2001] JZS175 |
44312-26020 |
US $22.54 |
||
|
44312A
|
44312A
90363-17008
Bearing(For Vane Pump Shaft)
[09.1999 - 08.2001] JZS175 |
90363-17008 |
— | ||
| replacement | |||||
|
44312A
|
44312A
90363-17013 Bearing(For Vane Pump Shaft)[09.1999 - 08.2001] JZS175 |
90363-17013 |
US $20.83 |
||
|
44312B
|
44312B
90520-15001
Ring, Snap, No.1(For Vane Pump Shaft)
[09.1999 - 08.2001] JZS175 |
90520-15001 |
— | ||
| replacement | |||||
|
44312B
|
44312B
90520-15005 Ring, Snap, No.1(For Vane Pump Shaft)[09.1999 - 08.2001] JZS175 |
90520-15005 |
US $0.70 |
||
|
44313
|
44313
44313-26060 Rotor, Vane Pump[09.1999 - 08.2001] JZS175 NO MARK |
44313-26060 |
US $103.38 |
||
|
44313
|
44313
44313-26070 Rotor, Vane Pump[09.1999 - 08.2001] JZS175 MARK 1 |
44313-26070 |
US $103.38 |
||
|
44313
|
44313
44313-26080 Rotor, Vane Pump[09.1999 - 08.2001] JZS175 MARK 2 |
44313-26080 |
US $103.38 |
||
|
44313
|
44313
44313-26090 Rotor, Vane Pump[09.1999 - 08.2001] JZS175 MARK 3 |
44313-26090 |
US $103.38 |
||
|
44313
|
44313
44313-26100 Rotor, Vane Pump[09.1999 - 08.2001] JZS175 MARK 4 |
44313-26100 |
US $103.38 |
||
|
44320
|
44320
44320-30610 Pump Assy, Vane[09.1999 - 08.2001] JZS175 |
44320-30610 |
US $1,263.81 |
||
|
44324A
|
44324A
44324-30130 Housing Sub-Assy, Vane Pump, Rear[09.1999 - 08.2001] JZS175 |
44324-30130 |
US $53.87 |
||
|
44324C
|
44324C
90301-18007 Ring, O(For Pump Housing Rear)[09.1999 - 08.2001] JZS175 |
90301-18007 |
US $1.97 |
||
|
44326
|
44326
44325-32270 Ring, Cam(For Vane Pump)[09.1999 - 08.2001] JZS175 NO MARK |
44325-32270 |
US $90.27 |
||
|
44326
|
44326
44325-32280 Ring, Cam(For Vane Pump)[09.1999 - 08.2001] JZS175 MARK 1 |
44325-32280 |
US $90.27 |
||
|
44326
|
44326
44325-32290 Ring, Cam(For Vane Pump)[09.1999 - 08.2001] JZS175 MARK 2 |
44325-32290 |
US $90.27 |
||
|
44326
|
44326
44325-32300 Ring, Cam(For Vane Pump)[09.1999 - 08.2001] JZS175 MARK 3 |
44325-32300 |
US $90.27 |
||
|
44326
|
44326
44325-32310 Ring, Cam(For Vane Pump)[09.1999 - 08.2001] JZS175 MARK 4 |
44325-32310 |
US $90.27 |
||
|
44326A
|
44326A
90250-04071 Pin, Straight(For Vane Pump Cam Ring)[09.1999 - 08.2001] JZS175 L=23.3,OD=4.0 |
90250-04071 |
US $1.46 |
||
|
44327C
|
44327C
44327-26010 Gasket, Vane Pump Housing[09.1999 - 08.2001] JZS175 |
44327-26010 |
from US $7.07 |
||
|
44330
|
44330
44330-28011 Valve Assy, Flow Control[09.1999 - 08.2001] JZS175 MARK A |
44330-28011 |
US $116.48 |
||
|
44330
|
44330
44330-28021 Valve Assy, Flow Control[09.1999 - 08.2001] JZS175 MARK B |
44330-28021 |
US $116.48 |
||
|
44330
|
44330
44330-28031 Valve Assy, Flow Control[09.1999 - 08.2001] JZS175 MARK C |
44330-28031 |
US $116.48 |
||
|
44330
|
44330
44330-28041 Valve Assy, Flow Control[09.1999 - 08.2001] JZS175 MARK D |
44330-28041 |
US $116.48 |
||
|
44330
|
44330
44330-28051 Valve Assy, Flow Control[09.1999 - 08.2001] JZS175 MARK E |
44330-28051 |
US $116.48 |
||
|
44330
|
44330
44330-28061 Valve Assy, Flow Control[09.1999 - 08.2001] JZS175 MARK F |
44330-28061 |
US $116.48 |
||
|
44330A
|
44330A
90501-13034 Spring, Compression(For Flow Control Valve)[09.1999 - 08.2001] JZS175 |
90501-13034 |
US $1.40 |
||
|
44338A
|
44338A
90301-19013
Seal, Oil, No.1(For Vane Pump Housing)
[09.1999 - 08.2001] JZS175 ID=19.2,OD=22.3 |
90301-19013 |
— | ||
| replacement | |||||
|
44338A
|
44338A
90301-19018 Ring, O(For Pressure Port Union)[09.1999 - 08.2001] JZS175 ID=19.2,OD=22.3 |
90301-19018 |
from US $2.13 |
||
|
44342
|
44342
44342-26020 Plate, Vane Pump Side, Rear[09.1999 - 08.2001] JZS175 |
44342-26020 |
US $19.92 |
||
|
44342A
|
44342A
90301-47001 Ring, O(For Vane Pump Side Plate Rear)[09.1999 - 08.2001] JZS175 |
90301-47001 |
US $3.05 |
||
|
44345B
|
44345B
44345-26010 Plate, Vane Pump[09.1999 - 08.2001] JZS175 L=15.000 |
44345-26010 |
US $9.32 |
||
|
44345B
|
44345B
44345-26020 Plate, Vane Pump[09.1999 - 08.2001] JZS175 L=14.998 |
44345-26020 |
US $9.32 |
||
|
44345B
|
44345B
44345-26030 Plate, Vane Pump[09.1999 - 08.2001] JZS175 L=14.996 |
44345-26030 |
US $9.32 |
||
|
44345B
|
44345B
44345-26040 Plate, Vane Pump[09.1999 - 08.2001] JZS175 L=14.994 |
44345-26040 |
US $9.32 |
||
|
44345B
|
44345B
44345-26050 Plate, Vane Pump[09.1999 - 08.2001] JZS175 L=14.992 |
44345-26050 |
US $9.32 |
||
|
44360
|
44360
44306-30280 Reservoir Assy, Vane Pump Oil[09.1999 - 08.2001] JZS175 |
44306-30280 |
US $139.78 |
||
|
44362A
|
44362A
90301-11016 Ring, O(For Power Steering Suction Port)[09.1999 - 08.2001] JZS175 |
90301-11016 |
from US $1.48 |
||
|
44441B
|
44441B
44441-30080 Bracket, Pump, Front[09.1999 - 08.2001] JZS175 |
44441-30080 |
US $14.57 |
||
|
44443B
|
44443B
44443-22130 Bracket, Vane Pump[09.1999 - 08.2001] JZS175 |
44443-22130 |
US $70.22 |
||
|
9010508194
|
9010508194
90105-08194 New Genuine Part |
90105-08194 |
US $1.05 |
||
|
9010508271
|
9010508271
90105-08271 New Genuine Part |
90105-08271 |
US $2.15 |
||
|
9010510405
|
9010510405
90105-10405 New Genuine Part |
90105-10405 |
US $5.56 |
||
|
9011908469
|
9011908469
90119-08469
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
90119-08469 |
— | ||
|
9020631001
|
9020631001
90206-31001 WASHER WAVE |
90206-31001 |
US $2.33 |
||
|
9036004005
|
9036004005
90360-04005 New Genuine Part |
90360-04005 |
US $2.18 |
||
|
9036005012
|
9036005012
90360-05012 Ball, Reverse Shift Restrict |
90360-05012 |
from US $0.84 |
||
|
9041006006
|
9041006006
90410-06006 Seat, Union(Pressure Control Valve Assy) |
90410-06006 |
US $2.62 |
||
