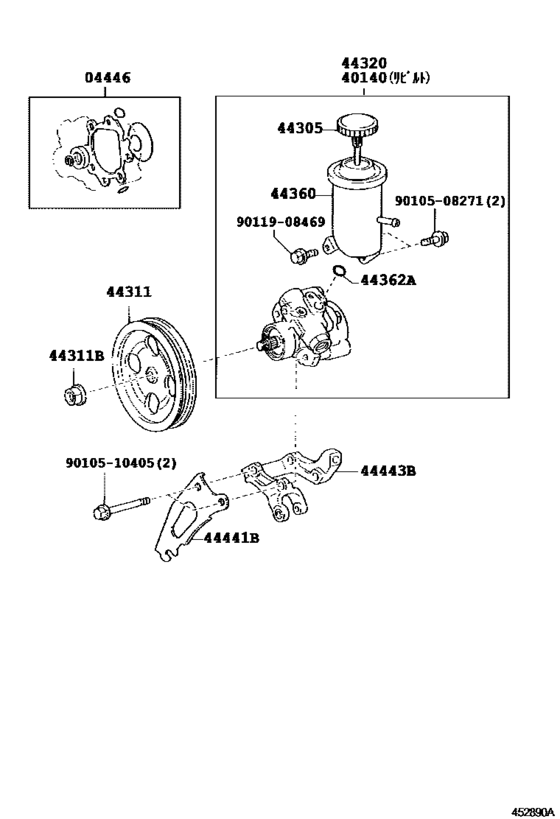

Vane Pump & Reservoir (Power Steering) ([08.2001 - 12.2003] (0108-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-30120 Gasket Kit, Power Steering Pump[09.1999 - 08.2001] JZS175 |
04446-30120 |
from US $29.98 |
||
|
40140
|
40140
40140-30610 Pump Assy,vane Rebuilt[08.2001 - 12.2003] JZS175 TOYODA KOKI |
40140-30610 |
US $888.16 |
||
| replacement | |||||
|
40140
|
40140
44320-30610 Pump Assy, Vane[08.2001 - 12.2003] JZS175 TOYODA KOKI |
44320-30610 |
US $1,263.81 |
||
|
44305
|
44305
44305-50010
Cap Sub-Assy, Vane Pump Oil Reservoir
[09.1999 - 08.2001] JZS175 |
44305-50010 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-50020 Cap Sub-Assy, Vane Pump Oil Reservoir[09.1999 - 08.2001] JZS175 |
44305-50020 |
from US $27.65 |
||
|
44311
|
44311
44311-22091 Pulley, Vane Pump[09.1999 - 08.2001] JZS175 |
44311-22091 |
US $134.48 |
||
|
44311B
|
44311B
90178-12003 Nut(For Vane Pump Pulley)[09.1999 - 08.2001] JZS175 |
90178-12003 |
from US $0.89 |
||
|
44320
|
44320
44320-30610 Pump Assy, Vane[09.1999 - 08.2001] JZS175 |
44320-30610 |
US $1,263.81 |
||
|
44360
|
44360
44306-30280 Reservoir Assy, Vane Pump Oil[09.1999 - 08.2001] JZS175 |
44306-30280 |
US $139.78 |
||
|
44362A
|
44362A
90301-11016 Ring, O(For Power Steering Suction Port)[09.1999 - 08.2001] JZS175 |
90301-11016 |
from US $1.48 |
||
|
44441B
|
44441B
44441-30080 Bracket, Pump, Front[09.1999 - 08.2001] JZS175 |
44441-30080 |
US $14.57 |
||
|
44443B
|
44443B
44443-22130 Bracket, Vane Pump[09.1999 - 08.2001] JZS175 |
44443-22130 |
US $70.22 |
||
|
9010508271
|
9010508271
90105-08271 New Genuine Part |
90105-08271 |
US $2.15 |
||
|
9010510405
|
9010510405
90105-10405 New Genuine Part |
90105-10405 |
US $5.56 |
||
|
9011908469
|
9011908469
90119-08469
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
90119-08469 |
— | ||
