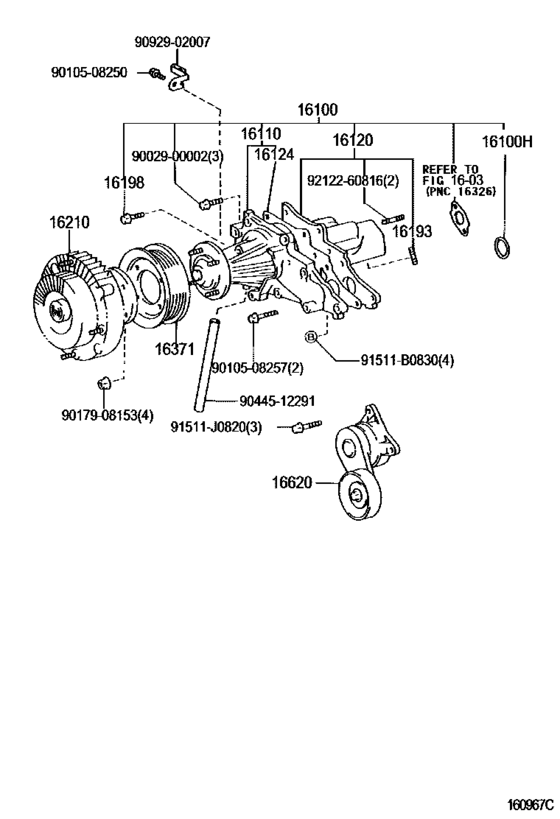

Water Pump ([09.1999 - 12.2003] (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-49866
Pump Assy, Engine Water
[09.1999 - 06.2000] 2JZGE..JZS175 |
16100-49866 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-80009 Pump Assy, Engine Water[09.1999 - 06.2000] 2JZGE..JZS175 |
16100-80009 |
US $240 |
||
|
16100
|
16100
16100-49867 Pump Assy, Engine Water[06.2000 - 08.2001] 2JZGE..JZS175 |
16100-49867 |
US $219.86 |
||
| replacement | |||||
|
16100
|
16100
16100-80009 Pump Assy, Engine Water[06.2000 - 08.2001] 2JZGE..JZS175 |
16100-80009 |
US $240 |
||
|
16100
|
16100
16100-49868
Pump Assy, Engine Water
[08.2001 - 12.2003] 2JZGE..JZS175 |
16100-49868 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-80009 Pump Assy, Engine Water[08.2001 - 12.2003] 2JZGE..JZS175 |
16100-80009 |
US $240 |
||
|
16100H
|
16100H
96761-24040 Ring, O(For Water Pump)[09.1999 - 08.2001] 2JZGE..JZS175 |
96761-24040 |
from US $2.74 |
||
|
16110
|
16110
16110-49146 Pump Assy, Water, W/o Coupling[09.1999 - 06.2000] 2JZGE..JZS175 |
16110-49146 |
US $195.10 |
||
| replacement | |||||
|
16110
|
16110
16110-49148 Pump Assy, Water, W/o Coupling[09.1999 - 06.2000] 2JZGE..JZS175 |
16110-49148 |
US $214.40 |
||
|
16110
|
16110
16110-49147 Pump Assy, Water, W/o Coupling[06.2000 - 08.2001] 2JZGE..JZS175 |
16110-49147 |
US $195.10 |
||
| replacement | |||||
|
16110
|
16110
16110-49148 Pump Assy, Water, W/o Coupling[06.2000 - 08.2001] 2JZGE..JZS175 |
16110-49148 |
US $214.40 |
||
|
16110
|
16110
16110-49148 Pump Assy, Water, W/o Coupling[08.2001 - 12.2003] 2JZGE..JZS175 |
16110-49148 |
US $214.40 |
||
|
16120
|
16120
16102-46072 Cover Assy, Water Pump[06.2000 - 08.2001] 2JZGE..JZS175 |
16102-46072 |
US $37.56 |
||
| replacement | |||||
|
16120
|
16120
16102-46073 Cover Assy, Water Pump[06.2000 - 08.2001] 2JZGE..JZS175 |
16102-46073 |
US $37.56 |
||
|
16120
|
16120
16102-46073 Cover Assy, Water Pump[08.2001 - 12.2003] 2JZGE..JZS175 |
16102-46073 |
US $37.56 |
||
|
16120
|
16120
16120-46080 Cover Assy, Water Pump[09.1999 - 06.2000] 2JZGE..JZS175 |
16120-46080 |
US $54.45 |
||
| replacement | |||||
|
16120
|
16120
16102-46073 Cover Assy, Water Pump[09.1999 - 06.2000] 2JZGE..JZS175 |
16102-46073 |
US $37.56 |
||
|
16124
|
16124
16124-46070 Gasket, Water Pump Cover[09.1999 - 08.2001] 2JZGE..JZS175 |
16124-46070 |
from US $7.16 |
||
|
16124
|
16124
16124-46071 Gasket, Water Pump Cover[08.2001 - 12.2003] 2JZGE..JZS175 |
16124-46071 |
US $8.30 |
||
|
16193
|
16193
16193-46030 Bolt, Stud(For Water Pump Cover)[09.1999 - 08.2001] 2JZGE..JZS175 |
16193-46030 |
US $4.80 |
||
|
16198
|
16198
16198-46031 Bolt, Stud(For Water Pump Pulley Seat)[09.1999 - 08.2001] 2JZGE..JZS175 |
16198-46031 |
US $4.48 |
||
|
16210
|
16210
16210-46052 Coupling Assy, Fluid[09.1999 - 08.2001] 2JZGE..JZS175 |
16210-46052 |
US $589.68 |
||
|
16371
|
16371
16371-46030 Pulley, Fan[09.1999 - 08.2001] 2JZGE..JZS175 |
16371-46030 |
US $58.46 |
||
|
16620
|
16620
16620-0W024
Tensioner Assy, V-Ribbed Belt
[09.1999 - 06.2000] 2JZGE..JZS175 |
16620-0W024 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-0W026 Tensioner Assy, V-Ribbed Belt[09.1999 - 06.2000] 2JZGE..JZS175 |
16620-0W026 |
US $452.40 |
||
|
16620
|
16620
16620-0W025
Tensioner Assy, V-Ribbed Belt
[06.2000 - 08.2001] 2JZGE..JZS175 |
16620-0W025 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-0W026 Tensioner Assy, V-Ribbed Belt[06.2000 - 08.2001] 2JZGE..JZS175 |
16620-0W026 |
US $452.40 |
||
|
91511B0830
|
91511B0830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.80 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
9002900002
|
9002900002
90029-00002 Bolt(For Water Pump Cover) |
90029-00002 |
US $5.56 |
||
|
9010508250
|
9010508250
90105-08250
Bolt, Flange
|
90105-08250 |
— | ||
|
9010508257
|
9010508257
90105-08257 New Genuine Part |
90105-08257 |
US $2.87 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9044512291
|
9044512291
90445-12291 GUM HOSE |
90445-12291 |
US $5.73 |
||
|
9092902007
|
9092902007
90929-02007 New Genuine Part |
90929-02007 |
US $3.35 |
||
|
9212260816
|
9212260816
92122-60816 Bolt, Stud(For Water Pump Set) |
92122-60816 |
US $2.06 |
||
