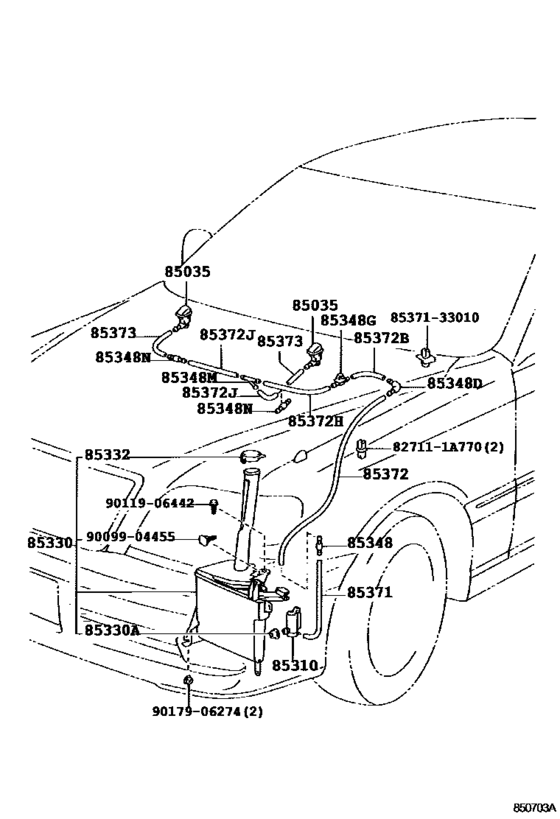

Windshield Washer ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-30040-A0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 SUPER WHITE 2,040 |
85381-30040-A0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-43010-A0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 SUPER WHITE 2,040 |
85381-43010-A0 |
— | ||
|
85035
|
85035
85381-30040-A1
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 WHITE PEARL CS.,062 ,2FQ |
85381-30040-A1 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-51010-A0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 WHITE PEARL CS.,062 ,2FQ |
85385-51010-A0 |
— | ||
|
85035
|
85035
85381-30040-B0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 SILVER ME.,1C0 |
85381-30040-B0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-43010-B0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 SILVER ME.,1C0 |
85381-43010-B0 |
— | ||
|
85035
|
85035
85381-30040-C0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 BLACK,202 |
85381-30040-C0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-43010-C0 Nozzle Sub-Assy, Washer[09.1999 - 08.2001] JZS175 BLACK,202 |
85381-43010-C0 |
US $11.18 |
||
|
85035
|
85035
85381-30040-D0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 ROSE RED MC.,3M9 |
85381-30040-D0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30050-D0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 ROSE RED MC.,3M9 |
85381-30050-D0 |
— | ||
|
85035
|
85035
85381-30040-G0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 BLACKISH GREEN MC.CC,6R5 |
85381-30040-G0 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-51010-G2
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 BLACKISH GREEN MC.CC,6R5 |
85385-51010-G2 |
— | ||
|
85035
|
85035
85381-30040-G1
Nozzle Sub-Assy, Washer
[08.2001 - 12.2003] JZS175 LT.GREEN M.M.,6S8 |
85381-30040-G1 |
— | ||
|
85035
|
85035
85381-30040-J0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 DK.BLUE MC.,2FR ,8L4 |
85381-30040-J0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30070-J0
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 DK.BLUE MC.,2FR ,8L4 |
85381-30070-J0 |
— | ||
|
85035
|
85035
85381-30040-J1
Nozzle Sub-Assy, Washer
[09.1999 - 08.2001] JZS175 GRAYISH BLUE ME.,8N6 |
85381-30040-J1 |
— | ||
|
85035
|
85035
85381-30040-J2
Nozzle Sub-Assy, Washer
[08.2001 - 12.2003] JZS175 DARK BLUE MC.,8P8 |
85381-30040-J2 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-51010-J2
Nozzle Sub-Assy, Washer
[08.2001 - 12.2003] JZS175 DARK BLUE MC.,8P8 |
85385-51010-J2 |
— | ||
|
85310
|
85310
85330-10280 Motor And Pump Assy, Windshield Washer[09.1999 - 08.2001] JZS175 |
85330-10280 |
from US $60.45 |
||
|
85330
|
85330
85315-30350 Jar Assy, Windshield Washer[09.1999 - 08.2001] JZS175 |
85315-30350 |
US $29.70 |
||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[09.1999 - 08.2001] JZS175 |
90099-32089 |
from US $0.98 |
||
| replacement | |||||
|
85330A
|
85330A
90099320891
Grommet
[09.1999 - 08.2001] JZS175 |
90099320891 |
— | ||
|
85332
|
85332
85316-26030 Cap, Washer, Inlet[09.1999 - 08.2001] JZS175 |
85316-26030 |
from US $1.54 |
||
|
85348
|
85348
85375-10260 Joint, Windshield Washer Hose, No.1[09.1999 - 08.2001] JZS175 |
85375-10260 |
from US $1.41 |
||
|
85348D
|
85348D
85355-20200 Joint, Windshield Washer Hose, No.1[09.1999 - 08.2001] JZS175 |
85355-20200 |
from US $0.95 |
||
|
85348G
|
85348G
85375-20800 Joint, Windshield Washer Hose, No.1[09.1999 - 08.2001] JZS175 |
85375-20800 |
from US $1.46 |
||
|
85348M
|
85348M
85348-14390 Joint, Windshield Washer Hose, No.1[09.1999 - 08.2001] JZS175 |
85348-14390 |
from US $1.40 |
||
|
85348N
|
85348N
85375-10260 Joint, Windshield Washer Hose, No.1[09.1999 - 08.2001] JZS175 |
85375-10260 |
from US $1.41 |
||
|
85371
|
85371
90099-33299 Joint, Windshield Washer Elbow, No.2[09.1999 - 08.2001] JZS175 *H,L=350 |
90099-33299 |
from US $4.37 |
||
|
85372
|
85372
90446-07001 Hose, Windshield Washer (From Motor To Joint)[09.1999 - 08.2001] JZS175 *H,L=930 |
90446-07001 |
from US $1.75 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1999 - 08.2001] JZS175 *H,L=260 |
90099-33080 |
from US $5.19 |
||
|
85372H
|
85372H
90099-33916
Hose, Windshield Washer (From Joint To Joint), No.2
[09.1999 - 08.2001] JZS175 *H,L=450 |
90099-33916 |
— | ||
| replacement | |||||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1999 - 08.2001] JZS175 *H,L=450 |
90099-33080 |
from US $5.19 |
||
|
85372J
|
85372J
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1999 - 08.2001] JZS175 *H,L=410 |
90099-33080 |
from US $5.19 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1999 - 08.2001] JZS175 *H,L=200 |
90099-33080 |
from US $5.19 |
||
|
827111A770
|
827111A770
82711-1A770 Clamp, Wiring Harness |
82711-1A770 |
US $1.61 |
||
|
8537133010
|
8537133010
85371-33010 Clamp, Washer, No.2 |
85371-33010 |
from US $1.14 |
||
|
9009904455
|
9009904455
90099-04455
New Genuine Part
|
90099-04455 |
— | ||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.89 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
