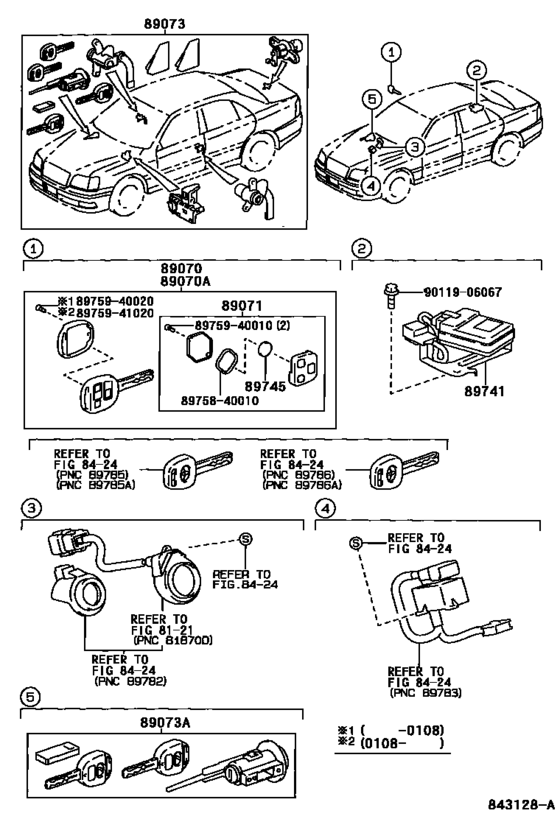

Wireless Door Lock ([09.1999 - ] W(ENGINE IMMOBILIZER SYSTEM) (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89070
|
89070
89070-30150
Transmitter Assy, Door Control
[09.1999 - 08.2001] JZS175 W(ENGINE IMMOBILIZER SYSTEM) |
89070-30150 |
— | ||
|
89070
|
89070
89070-30160
Transmitter Assy, Door Control
[09.1999 - 08.2001] JZS175 |
89070-30160 |
— | ||
|
89070
|
89070
89070-30170
Transmitter Assy, Door Control
[09.1999 - 08.2001] JZS175 SINGAPORE SPEC |
89070-30170 |
— | ||
|
89070
|
89070
89070-30450
Transmitter Assy, Door Control
[08.2001 - 12.2003] JZS175 W(ENGINE IMMOBILIZER SYSTEM) |
89070-30450 |
— | ||
|
89070
|
89070
89070-30460
Transmitter Assy, Door Control
[08.2001 - 12.2003] JZS175 SINGAPORE SPEC |
89070-30460 |
— | ||
|
89070
|
89070
89070-30500
Transmitter Assy, Door Control
[08.2001 - 12.2003] JZS175 |
89070-30500 |
— | ||
|
89070A
|
89070A
89070-30200
Transmitter, Door Control (Cut Key)
[09.1999 - 08.2001] JZS175 W(ENGINE IMMOBILIZER SYSTEM) |
89070-30200 |
— | ||
|
89070A
|
89070A
89070-30210
Transmitter, Door Control (Cut Key)
[09.1999 - 08.2001] JZS175 |
89070-30210 |
— | ||
|
89070A
|
89070A
89070-30220
Transmitter, Door Control (Cut Key)
[09.1999 - 08.2001] JZS175 SINGAPORE SPEC |
89070-30220 |
— | ||
|
89070A
|
89070A
89070-30470
Transmitter, Door Control (Cut Key)
[08.2001 - 12.2003] JZS175 W(ENGINE IMMOBILIZER SYSTEM) |
89070-30470 |
— | ||
|
89070A
|
89070A
89070-30480
Transmitter, Door Control (Cut Key)
[08.2001 - 12.2003] JZS175 SINGAPORE SPEC |
89070-30480 |
— | ||
|
89070A
|
89070A
89070-30510
Transmitter, Door Control (Cut Key)
[08.2001 - 12.2003] JZS175 |
89070-30510 |
— | ||
|
89071
|
89071
89071-30030
Module Set, Transmitter Sub-Assy, Door Control
[09.1999 - 09.2000] JZS175 |
89071-30030 |
— | ||
| replacement | |||||
|
89071
|
89071
89071-30031
Module Set, Transmitter Sub-Assy, Door Control
[09.1999 - 09.2000] JZS175 |
89071-30031 |
— | ||
|
89071
|
89071
89071-30031
Module Set, Transmitter Sub-Assy, Door Control
[09.2000 - 08.2001] JZS175 |
89071-30031 |
— | ||
|
89071
|
89071
89071-30040
Module Set, Transmitter Sub-Assy, Door Control
[09.1999 - 09.2000] JZS175 SINGAPORE SPEC |
89071-30040 |
— | ||
| replacement | |||||
|
89071
|
89071
89071-30041
Module Set, Transmitter Sub-Assy, Door Control
[09.1999 - 09.2000] JZS175 SINGAPORE SPEC |
89071-30041 |
— | ||
|
89071
|
89071
89071-30041
Module Set, Transmitter Sub-Assy, Door Control
[09.2000 - 08.2001] JZS175 SINGAPORE SPEC |
89071-30041 |
— | ||
|
89071
|
89071
89071-53050
Module Set, Transmitter Sub-Assy, Door Control
[09.1999 - 09.2000] JZS175 W(ENGINE IMMOBILIZER SYSTEM) |
89071-53050 |
— | ||
| replacement | |||||
|
89071
|
89071
89071-53051
Module Set, Transmitter Sub-Assy, Door Control
[09.1999 - 09.2000] JZS175 W(ENGINE IMMOBILIZER SYSTEM) |
89071-53051 |
— | ||
|
89071
|
89071
89071-53051
Module Set, Transmitter Sub-Assy, Door Control
[09.2000 - 08.2001] JZS175 W(ENGINE IMMOBILIZER SYSTEM) |
89071-53051 |
— | ||
|
89073
|
89073
69005-3A140 Cylinder Set, Lock W/transmitter Housing(Less Module)LOCK W/TRANSMITTER HOUSING(LESS MODULE) [08.2001 - 12.2003] JZS175 W(ENGINE IMMOBILIZER SYSTEM) |
69005-3A140 |
US $637.73 |
||
|
89073
|
89073
69005-3A150 Cylinder Set, Lock W/transmitter Housing(Less Module)LOCK W/TRANSMITTER HOUSING(LESS MODULE) [08.2001 - 12.2003] JZS175 |
69005-3A150 |
US $582.40 |
||
|
89073
|
89073
89073-30270
Cylinder Set, Lock W/transmitter Housing(Less Module)
[09.1999 - 08.2001] JZS175 W(ENGINE IMMOBILIZER SYSTEM) |
89073-30270 |
— | ||
|
89073
|
89073
89073-30280
Cylinder Set, Lock W/transmitter Housing(Less Module)
[09.1999 - 08.2001] JZS175 |
89073-30280 |
— | ||
|
89073
|
89073
89073-30290
Cylinder Set, Lock W/transmitter Housing(Less Module)
[09.1999 - 08.2001] JZS175 SINGAPORE SPEC |
89073-30290 |
— | ||
|
89073A
|
89073A
69057-30240 Ign Cylinder Set Lock W/transmitter Housing (Cut Key)[08.2001 - 12.2003] JZS175 W(ENGINE IMMOBILIZER SYSTEM) |
69057-30240 |
US $276.64 |
||
|
89073A
|
89073A
89073-30310
Ign Cylinder Set Lock W/transmitter Housing (Cut Key)
[09.1999 - 08.2001] JZS175 |
89073-30310 |
— | ||
|
89741
|
89741
89741-30280 Receiver, Door ControlDOOR CONTROL [09.1999 - 08.2001] JZS175 |
89741-30280 |
US $701.79 |
||
|
89741
|
89741
89741-30290 Receiver, Door ControlDOOR CONTROL [09.1999 - 08.2001] JZS175 SINGAPORE SPEC |
89741-30290 |
US $701.79 |
||
|
89745
|
89745
89745-40010 Transmitter Battery[09.1999 - 08.2001] JZS175 |
89745-40010 |
from US $7.88 |
||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $2.27 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $2.15 |
||
|
8975940020
|
8975940020
89759-40020 Screw, Door Control Transmitter |
89759-40020 |
from US $1.10 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.08 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.97 |
||
