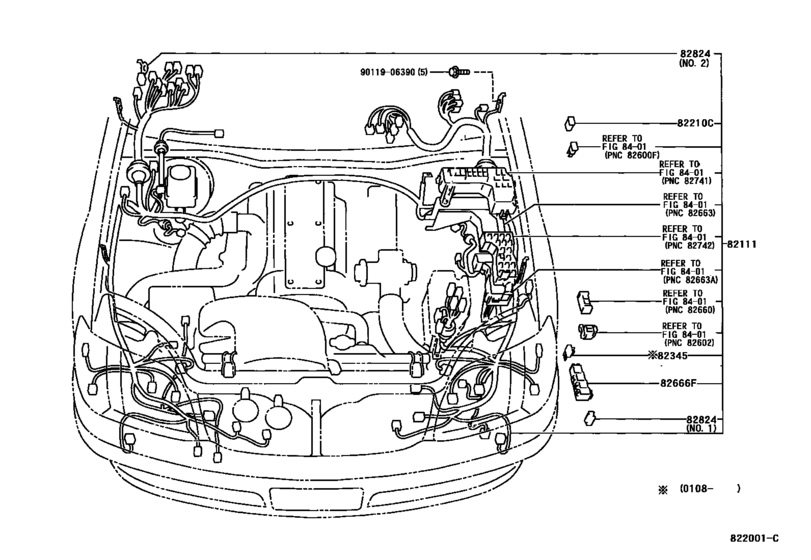

Wiring & Clamp ([09.1999 - ] ENGINE ROOM (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82115-30250 Wire, Engine Room MainENGINE ROOM MAIN [09.1999 - 08.2000] JZS175 W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)) |
82115-30250 |
US $1,863.68 |
||
|
82111
|
82111
82115-30251 Wire, Engine Room MainENGINE ROOM MAIN [08.2000 - 08.2001] JZS175 W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)) |
82115-30251 |
US $1,863.68 |
||
|
82111
|
82111
82115-30252 Wire, Engine Room MainENGINE ROOM MAIN [08.2001 - 12.2003] JZS175 W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)) |
82115-30252 |
US $1,863.68 |
||
|
82111
|
82111
82115-30460 Wire, Engine Room MainENGINE ROOM MAIN [09.1999 - 08.2000] JZS175 |
82115-30460 |
US $2,023.84 |
||
|
82111
|
82111
82115-30461 Wire, Engine Room MainENGINE ROOM MAIN [08.2000 - 08.2001] JZS175 |
82115-30461 |
US $1,863.68 |
||
|
82111
|
82111
82115-30462 Wire, Engine Room MainENGINE ROOM MAIN [08.2001 - 12.2003] JZS175 |
82115-30462 |
US $1,863.68 |
||
|
82210C
|
82210C
90982-08202 Fusible Link[09.1999 - 08.2001] JZS175 60A,TERMINAL:MALE |
90982-08202 |
US $12.54 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[09.1999 - 08.2001] JZS175 80A,TERMINAL:MALE |
90982-08203 |
from US $7.05 |
||
|
82210C
|
82210C
90982-08274 Fusible Link[09.1999 - 08.2001] JZS175 120A,TERMINAL:MALE |
90982-08274 |
from US $8.60 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[09.1999 - 08.2001] JZS175 30A,TERMINAL:FEMALE |
90982-08280 |
from US $3.78 |
||
|
82210C
|
82210C
90982-08281 Fusible Link[09.1999 - 08.2001] JZS175 40A,TERMINAL:FEMALE |
90982-08281 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[09.1999 - 08.2001] JZS175 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.88 |
||
|
82345
|
82345
82345-12050 Diode[08.2001 - 12.2003] JZS175 |
82345-12050 |
US $14.16 |
||
|
82666F
|
82666F
82666-30610 Holder, Connector[09.1999 - 08.2001] JZS175 |
82666-30610 |
US $21.69 |
||
|
82824
|
82824
82824-12210 Block, Junction[09.1999 - 08.2001] JZS175 NO.1 |
82824-12210 |
US $35.64 |
||
|
82824
|
82824
82824-12220 Connector, Wiring Harness[08.2001 - 12.2003] JZS175 NO.1 |
82824-12220 |
US $25.63 |
||
|
82824
|
82824
82824-48010 Connector, Wiring Harness[09.1999 - 08.2001] JZS175 NO.2 |
82824-48010 |
US $5.82 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
