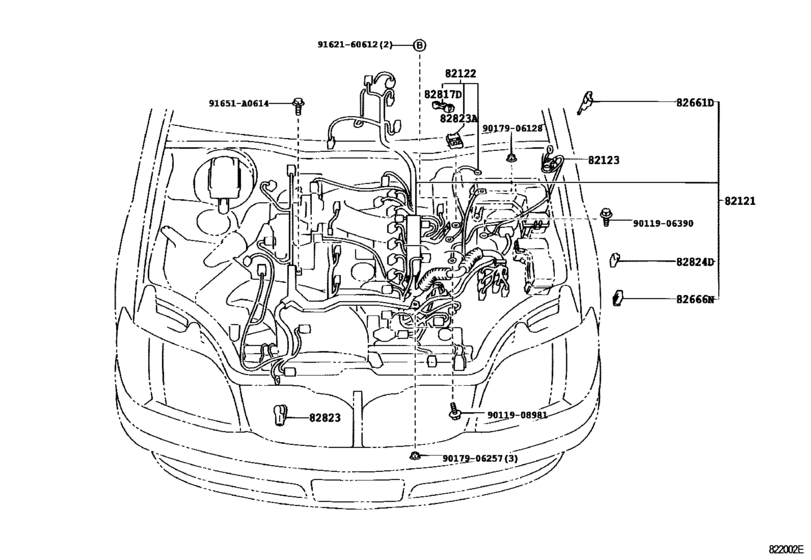

Wiring & Clamp ([09.1999 - 08.2001] ENGINE (9909-0108)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-3A480 Wire, EngineENGINE [09.1999 - 08.2000] JZS175 |
82121-3A480 |
US $1,102.19 |
||
|
82121
|
82121
82121-3A481 Wire, EngineENGINE [08.2000 - 08.2001] JZS175 |
82121-3A481 |
US $1,102.19 |
||
|
82121
|
82121
82121-3A482 Wire, EngineENGINE [08.2001 - 12.2003] JZS175 |
82121-3A482 |
US $1,102.19 |
||
|
82122
|
82122
82122-30680 Wire, Engine, No.2[09.1999 - 04.2001] JZS175 |
82122-30680 |
US $100.46 |
||
|
82122
|
82122
82122-30681 Wire, Engine, No.2[04.2001 - 08.2001] JZS175 |
82122-30681 |
US $100.46 |
||
|
82123
|
82123
82123-30400 Wire, Engine, No.3[09.1999 - 08.2001] JZS175 |
82123-30400 |
US $84.45 |
||
|
82661D
|
82661D
82661-30450 Cover, Relay Block, No.1[09.1999 - 08.2001] JZS175 |
82661-30450 |
US $6.41 |
||
|
82666N
|
82666N
82666-30670 Holder, Connector No.2[09.1999 - 08.2001] JZS175 |
82666-30670 |
US $4.72 |
||
|
82817D
|
82817D
82817-3K670 Protector, Wiring Harness, No.5[03.2001 - 08.2001] JZS175 |
82817-3K670 |
US $9.03 |
||
|
82823
|
82823
82823-24030 Cap, Terminal, No.1[09.1999 - 08.2001] JZS175 |
82823-24030 |
US $8.42 |
||
|
82823A
|
82823A
82823-30120 Cap, Terminal, No.1[09.1999 - 08.2001] JZS175 |
82823-30120 |
US $4.08 |
||
|
82824D
|
82824D
82824-50110 Connector, Wiring Harness[09.1999 - 08.2001] JZS175 |
82824-50110 |
US $20.09 |
||
|
91651A0614
|
91651A0614
91651-A0614
BOLT WWASHER
|
91651-A0614 |
— | ||
| replacement | |||||
|
91651A0614
|
91651A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011908981
|
9011908981
90119-08981 New Genuine Part |
90119-08981 |
US $2.33 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.25 |
||
|
9017906257
|
9017906257
90179-06257 NUT |
90179-06257 |
US $2.15 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
