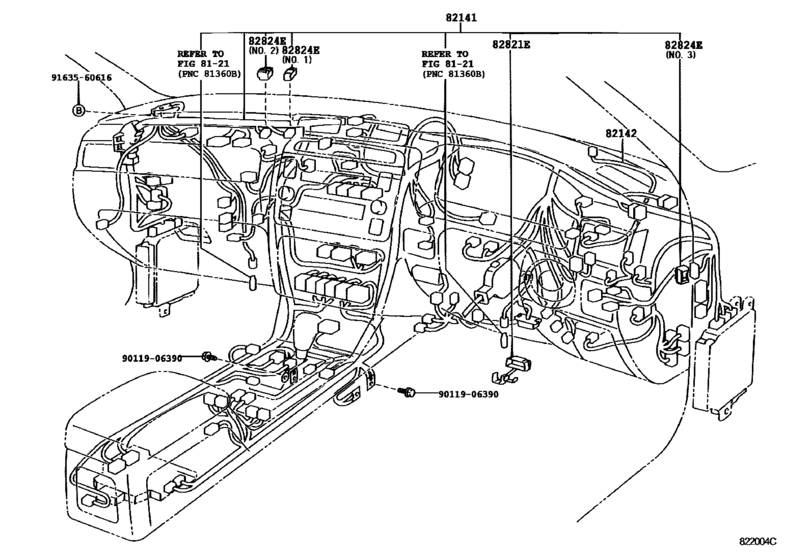

Wiring & Clamp ([09.1999 - 08.2001] INSTRUMENT PANEL (9909-0108)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-3F570 Wire, Instrument PanelINSTRUMENT PANEL [09.1999 - 08.2001] JZS175 |
82141-3F570 |
US $1,355.54 |
||
|
82141
|
82141
82141-3F571 Wire, Instrument PanelINSTRUMENT PANEL [08.2001 - 11.2003] JZS175 |
82141-3F571 |
US $1,355.54 |
||
|
82142
|
82142
82142-30030 Wire, Instrument Panel, No.2[09.1999 - 08.2001] JZS175 |
82142-30030 |
US $11.79 |
||
|
82821E
|
82821E
82821-20330 Cover, Connector[09.1999 - 08.2001] JZS175 |
82821-20330 |
US $4.12 |
||
|
82824E
|
82824E
82824-22070 Connector, Wiring Harness[03.2000 - 08.2001] JZS175 NO.3 |
82824-22070 |
US $18.49 |
||
|
82824E
|
82824E
82824-22080 Connector, Wiring Harness[03.2000 - 08.2001] JZS175 NO.1 |
82824-22080 |
US $20.68 |
||
|
82824E
|
82824E
82824-30220 Connector, Wiring Harness[09.1999 - 08.2001] JZS175 NO.2 |
82824-30220 |
US $20.24 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
