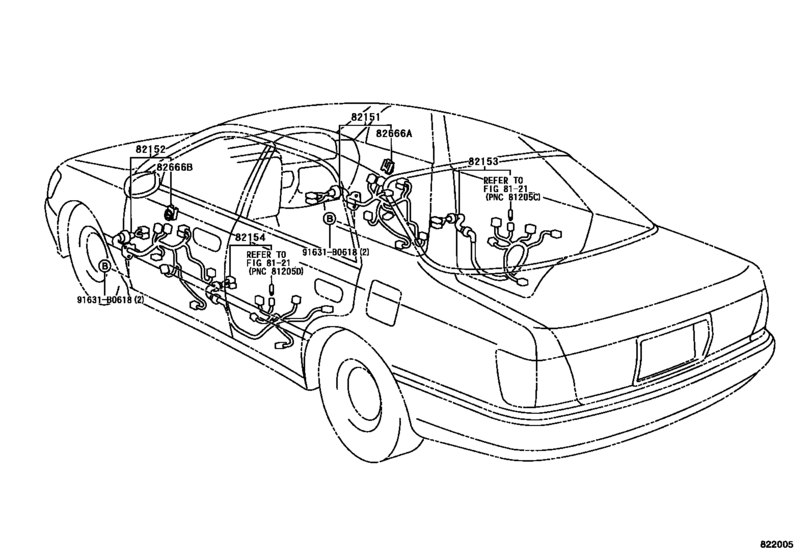

Wiring & Clamp ([09.1999 - ] DOOR (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-3A230 Wire, Front Door, Rh[09.1999 - 08.2001] JZS175 |
82151-3A230 |
US $168.90 |
||
|
82152
|
82152
82152-30870 Wire, Front Door, Lh[09.1999 - 08.2001] JZS175 |
82152-30870 |
US $168.90 |
||
|
82152
|
82152
82152-30871 Wire, Front Door, Lh[08.2001 - 11.2003] JZS175 |
82152-30871 |
US $168.90 |
||
|
82153
|
82153
82153-30500 Wire, Rear Door, No.1[09.1999 - 08.2001] JZS175 |
82153-30500 |
US $100.46 |
||
|
82153
|
82153
82153-30510 Wire, Rear Door, No.1[08.2001 - 11.2003] JZS175 |
82153-30510 |
US $100.46 |
||
|
82154
|
82154
82154-30420 Wire, Rear Door, No.2[09.1999 - 08.2001] JZS175 |
82154-30420 |
US $100.46 |
||
|
82154
|
82154
82154-30430 Wire, Rear Door, No.2[08.2001 - 11.2003] JZS175 |
82154-30430 |
US $100.46 |
||
|
82666A
|
82666A
82666-22080 Holder, Connector No.2[09.1999 - 08.2001] JZS175 |
82666-22080 |
US $1.16 |
||
|
82666B
|
82666B
82666-22080 Holder, Connector No.2[09.1999 - 08.2001] JZS175 |
82666-22080 |
US $1.16 |
||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.65 |
