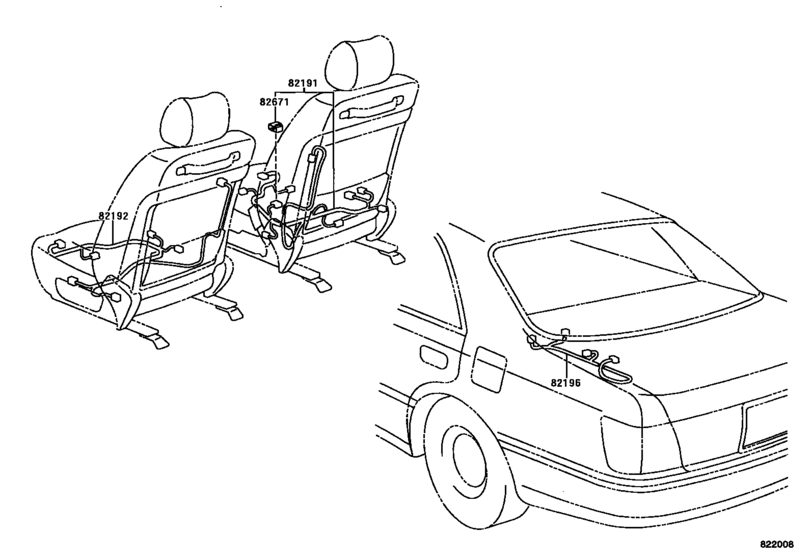

Wiring & Clamp ([09.1999 - ] SEAT (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82191
|
82191
82191-30110 Wire, Front Seat, Rh[09.1999 - 08.2001] JZS175 |
82191-30110 |
US $168.90 |
||
|
82191
|
82191
82191-30111 Wire, Front Seat, Rh[08.2001 - 12.2003] JZS175 |
82191-30111 |
US $168.90 |
||
|
82191
|
82191
82191-30140 Wire, Front Seat, Rh[08.2001 - 12.2003] JZS175 W(MEMORY POWER SEAT) |
82191-30140 |
US $196.56 |
||
|
82192
|
82192
82192-30140 Wire, Front Seat, Lh[09.1999 - 08.2001] JZS175 |
82192-30140 |
US $139.78 |
||
|
82196
|
82196
82196-30050 Wire,rear Seat,lh No.2[09.1999 - 08.2001] JZS175 |
82196-30050 |
US $100.46 |
||
|
82671
|
82671
82671-30350 Block, Junction[09.1999 - 08.2001] JZS175 ENGINE ROOM OR FRONT SEAT |
82671-30350 |
US $5.68 |
||
|
82671
|
82671
82824-12210 Block, Junction[08.2001 - 12.2003] JZS175 W(MEMORY POWER SEAT) |
82824-12210 |
US $35.64 |
