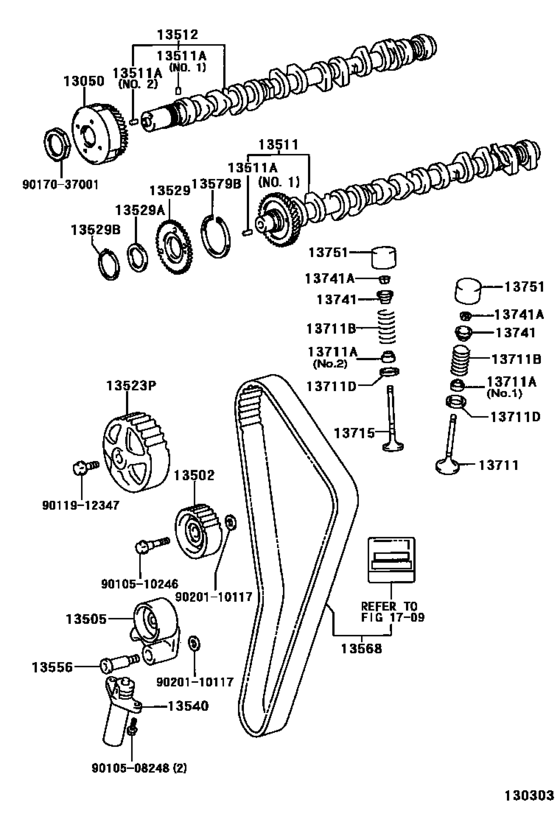

Camshaft & Valve ([09.1999 - ] (9909- )1JZFSE,2JZFSE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROY
- body
- WG
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 08.2001
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13050
|
13050
13050-46020 Gear Assy, Camshaft Timing[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13050-46020 |
US $435.34 |
||
|
13502
|
13502
13503-46010 Idler Sub-Assy, Timing Belt, No.2[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13503-46010 |
US $67.03 |
||
|
13505
|
13505
13505-46020 Idler Sub-Assy, Timing Belt, No.1[09.1999 - 08.2001] 1JZGE,2JZFSE..JZS171,173,175,177 |
13505-46020 |
US $72.07 |
||
|
13511
|
13511
13501-46100 Camshaft[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13501-46100 |
US $684.32 |
||
|
13511A
|
13511A
90250-05022 Pin, Straight(For Oil Pump Set)[09.1999 - 08.2001] 2JZFSE..JZS175,177 長さ＝１０，外径＝５,ＮＯ．２ |
90250-05022 |
US $1.46 |
||
|
13511A
|
13511A
90250-05027 Pin, Straight[09.1999 - 08.2001] 2JZFSE..JZS175,177 長さ＝８，外径＝５,ＮＯ．１ |
90250-05027 |
from US $0.76 |
||
|
13512
|
13512
13502-46040 Camshaft, No.2[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13502-46040 |
US $684.32 |
||
|
13523P
|
13523P
13523-46050 Pulley, Camshaft Timing[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13523-46050 |
US $117.06 |
||
|
13529
|
13529
13529-70010 Gear, Camshaft Sub[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13529-70010 |
US $67.70 |
||
|
13529A
|
13529A
90206-42001 Washer, Wave(For Camshaft Sub Gear)[09.1999 - 08.2001] 1UZFE..UZS17#; 2JZFSE..JZS175,177 |
90206-42001 |
from US $1.01 |
||
|
13529B
|
13529B
90520-41004 Ring, Shaft Snap(For Camshaft Sub Gear)[09.1999 - 08.2001] 1UZFE..UZS17#; 2JZFSE..JZS175,177 |
90520-41004 |
from US $2.93 |
||
|
13540
|
13540
13540-46030 Tensioner Assy, Chain, No.1[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
13540-46030 |
from US $74.21 |
||
|
13556
|
13556
13556-46010 Shaft, Timing Belt Idler[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
13556-46010 |
from US $11.97 |
||
|
13568
|
13568
13568-49075 Belt, Timing[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13568-49075 |
US $76.94 |
||
|
13579B
|
13579B
13579-70010 Washer, Camshaft Timing Gear Bolt[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13579-70010 |
US $12.23 |
||
|
13711
|
13711
13711-46040 Valve, Intake[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13711-46040 |
US $26.50 |
||
|
13711A
|
13711A
90913-02088 Seal Or Ring, O(For Valve Stem Oil)[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# ＮＯ．２ |
90913-02088 |
from US $4.66 |
||
|
13711A
|
13711A
90913-02090 Seal Or Ring, O(For Valve Stem Oil)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# ＮＯ．１ |
90913-02090 |
from US $4.39 |
||
|
13711B
|
13711B
90905-01056 Spring, Compression(For Inner)[09.1999 - 06.2000] 2JZFSE..JZS175,177 |
90905-01056 |
US $5.24 |
||
| replacement | |||||
|
13711B
|
13711B
90905-01067 Spring, Compression(For Inner)[09.1999 - 06.2000] 2JZFSE..JZS175,177 |
90905-01067 |
US $5.24 |
||
|
13711B
|
13711B
90905-01067 Spring, Compression(For Inner)[06.2000 - 08.2001] 2JZFSE..JZS175,177 |
90905-01067 |
US $5.24 |
||
|
13711D
|
13711D
90201-16031 Washer, Plate(For Valve Spring Seat)[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
90201-16031 |
from US $0.99 |
||
|
13715
|
13715
13715-46030 Valve, Exhaust[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13715-46030 |
US $51.98 |
||
|
13741
|
13741
13741-46030 Retainer, Valve Spring[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
13741-46030 |
US $5.97 |
||
|
13741A
|
13741A
90913-03025 Lock, Valve Spring Retainer[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
90913-03025 |
from US $1.84 |
||
|
13751
|
13751
13751-46030 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．０６ |
13751-46030 |
from US $11 |
||
|
13751
|
13751
13751-46040 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．０８ |
13751-46040 |
from US $11.72 |
||
|
13751
|
13751
13751-46050 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．１０ |
13751-46050 |
from US $10.93 |
||
|
13751
|
13751
13751-46060 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．１２ |
13751-46060 |
from US $10.74 |
||
|
13751
|
13751
13751-46070 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．１４ |
13751-46070 |
from US $10.72 |
||
|
13751
|
13751
13751-46080 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．１６ |
13751-46080 |
from US $11.04 |
||
|
13751
|
13751
13751-46090 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．１８ |
13751-46090 |
from US $11.19 |
||
|
13751
|
13751
13751-46100 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．２０ |
13751-46100 |
from US $11.08 |
||
|
13751
|
13751
13751-46110 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．２２ |
13751-46110 |
from US $11.06 |
||
|
13751
|
13751
13751-46120 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．２４ |
13751-46120 |
from US $11.70 |
||
|
13751
|
13751
13751-46130 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．２６ |
13751-46130 |
from US $11.02 |
||
|
13751
|
13751
13751-46140 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．２８ |
13751-46140 |
from US $10.91 |
||
|
13751
|
13751
13751-46150 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．３０ |
13751-46150 |
from US $11.17 |
||
|
13751
|
13751
13751-46160 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．３２ |
13751-46160 |
from US $11.04 |
||
|
13751
|
13751
13751-46170 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．３４ |
13751-46170 |
from US $10.91 |
||
|
13751
|
13751
13751-46180 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．３６ |
13751-46180 |
from US $11.08 |
||
|
13751
|
13751
13751-46190 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．３８ |
13751-46190 |
from US $11.65 |
||
|
13751
|
13751
13751-46200 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．４０ |
13751-46200 |
from US $11.02 |
||
|
13751
|
13751
13751-46210 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．４２ |
13751-46210 |
from US $10.85 |
||
|
13751
|
13751
13751-46220 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．４４ |
13751-46220 |
from US $10.98 |
||
|
13751
|
13751
13751-46230 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．４６ |
13751-46230 |
from US $11 |
||
|
13751
|
13751
13751-46240 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．４８ |
13751-46240 |
from US $10.87 |
||
|
13751
|
13751
13751-46250 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．５０ |
13751-46250 |
from US $10.98 |
||
|
13751
|
13751
13751-46260 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．５２ |
13751-46260 |
from US $10.93 |
||
|
13751
|
13751
13751-46270 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．５４ |
13751-46270 |
from US $11.04 |
||
|
13751
|
13751
13751-46280 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．５６ |
13751-46280 |
from US $10.93 |
||
|
13751
|
13751
13751-46290 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．５８ |
13751-46290 |
from US $10.91 |
||
|
13751
|
13751
13751-46300 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．６０ |
13751-46300 |
from US $10.98 |
||
|
13751
|
13751
13751-46310 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．６２ |
13751-46310 |
from US $11.36 |
||
|
13751
|
13751
13751-46320 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．６４ |
13751-46320 |
from US $11.12 |
||
|
13751
|
13751
13751-46330 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．６６ |
13751-46330 |
from US $12.69 |
||
|
13751
|
13751
13751-46340 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．６８ |
13751-46340 |
US $11.18 |
||
|
13751
|
13751
13751-46350 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．７０ |
13751-46350 |
US $15.41 |
||
|
13751
|
13751
13751-46360 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．７２ |
13751-46360 |
from US $12.69 |
||
|
13751
|
13751
13751-46370 Lifter, Valve[09.1999 - 06.2001] 2JZFSE..JZS175,177 厚さ＝５．７４ |
13751-46370 |
from US $11.19 |
||
|
13751
|
13751
13751-46390 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．０６ |
13751-46390 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46030 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．０６ |
13751-46030 |
from US $11 |
||
|
13751
|
13751
13751-46400 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．０８ |
13751-46400 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46040 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．０８ |
13751-46040 |
from US $11.72 |
||
|
13751
|
13751
13751-46410 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．１０ |
13751-46410 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46050 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．１０ |
13751-46050 |
from US $10.93 |
||
|
13751
|
13751
13751-46420 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．１２ |
13751-46420 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46060 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．１２ |
13751-46060 |
from US $10.74 |
||
|
13751
|
13751
13751-46430 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．１４ |
13751-46430 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46070 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．１４ |
13751-46070 |
from US $10.72 |
||
|
13751
|
13751
13751-46440 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．１６ |
13751-46440 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46080 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．１６ |
13751-46080 |
from US $11.04 |
||
|
13751
|
13751
13751-46450 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．１８ |
13751-46450 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46090 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．１８ |
13751-46090 |
from US $11.19 |
||
|
13751
|
13751
13751-46460 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．２０ |
13751-46460 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46100 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．２０ |
13751-46100 |
from US $11.08 |
||
|
13751
|
13751
13751-46470 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．２２ |
13751-46470 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46110 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．２２ |
13751-46110 |
from US $11.06 |
||
|
13751
|
13751
13751-46480 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．２４ |
13751-46480 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46120 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．２４ |
13751-46120 |
from US $11.70 |
||
|
13751
|
13751
13751-46490 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．２６ |
13751-46490 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46130 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．２６ |
13751-46130 |
from US $11.02 |
||
|
13751
|
13751
13751-46500 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．２８ |
13751-46500 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46140 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．２８ |
13751-46140 |
from US $10.91 |
||
|
13751
|
13751
13751-46510 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．３０ |
13751-46510 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46150 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．３０ |
13751-46150 |
from US $11.17 |
||
|
13751
|
13751
13751-46520 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．３２ |
13751-46520 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46160 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．３２ |
13751-46160 |
from US $11.04 |
||
|
13751
|
13751
13751-46530 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．３４ |
13751-46530 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46170 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．３４ |
13751-46170 |
from US $10.91 |
||
|
13751
|
13751
13751-46540 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．３６ |
13751-46540 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46180 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．３６ |
13751-46180 |
from US $11.08 |
||
|
13751
|
13751
13751-46550 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．３８ |
13751-46550 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46190 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．３８ |
13751-46190 |
from US $11.65 |
||
|
13751
|
13751
13751-46560 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．４０ |
13751-46560 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46200 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．４０ |
13751-46200 |
from US $11.02 |
||
|
13751
|
13751
13751-46570 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．４２ |
13751-46570 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46210 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．４２ |
13751-46210 |
from US $10.85 |
||
|
13751
|
13751
13751-46580 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．４４ |
13751-46580 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46220 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．４４ |
13751-46220 |
from US $10.98 |
||
|
13751
|
13751
13751-46590 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．４６ |
13751-46590 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46230 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．４６ |
13751-46230 |
from US $11 |
||
|
13751
|
13751
13751-46600 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．４８ |
13751-46600 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46240 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．４８ |
13751-46240 |
from US $10.87 |
||
|
13751
|
13751
13751-46610 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．５０ |
13751-46610 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46250 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．５０ |
13751-46250 |
from US $10.98 |
||
|
13751
|
13751
13751-46620 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．５２ |
13751-46620 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46260 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．５２ |
13751-46260 |
from US $10.93 |
||
|
13751
|
13751
13751-46630 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．５４ |
13751-46630 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46270 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．５４ |
13751-46270 |
from US $11.04 |
||
|
13751
|
13751
13751-46640 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．５６ |
13751-46640 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46280 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．５６ |
13751-46280 |
from US $10.93 |
||
|
13751
|
13751
13751-46650 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．５８ |
13751-46650 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46290 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．５８ |
13751-46290 |
from US $10.91 |
||
|
13751
|
13751
13751-46660 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．６０ |
13751-46660 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46300 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．６０ |
13751-46300 |
from US $10.98 |
||
|
13751
|
13751
13751-46670 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．６２ |
13751-46670 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46310 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．６２ |
13751-46310 |
from US $11.36 |
||
|
13751
|
13751
13751-46680 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．６４ |
13751-46680 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46320 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．６４ |
13751-46320 |
from US $11.12 |
||
|
13751
|
13751
13751-46690 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．６６ |
13751-46690 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46330 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．６６ |
13751-46330 |
from US $12.69 |
||
|
13751
|
13751
13751-46700 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．６８ |
13751-46700 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46340 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．６８ |
13751-46340 |
US $11.18 |
||
|
13751
|
13751
13751-46710 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．７０ |
13751-46710 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46350 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．７０ |
13751-46350 |
US $15.41 |
||
|
13751
|
13751
13751-46720 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．７２ |
13751-46720 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46360 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．７２ |
13751-46360 |
from US $12.69 |
||
|
13751
|
13751
13751-46730 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．７４ |
13751-46730 |
US $18.35 |
||
| replacement | |||||
|
13751
|
13751
13751-46370 Lifter, Valve[06.2001 - 08.2001] 2JZFSE..JZS175,177 厚さ＝５．７４ |
13751-46370 |
from US $11.19 |
||
|
9010508248
|
9010508248
90105-08248 BOLT WASHER BASED |
90105-08248 |
US $2.87 |
||
|
9010510246
|
9010510246
90105-10246 BOLT WASHER BASED |
90105-10246 |
from US $1.84 |
||
|
9011912347
|
9011912347
90119-12347 New Genuine Part |
90119-12347 |
US $5.53 |
||
|
9017037001
|
9017037001
90170-37001 New Genuine Part |
90170-37001 |
US $5.56 |
||
|
9020110117
|
9020110117
90201-10117 WASHER |
90201-10117 |
from US $1.41 |
||
