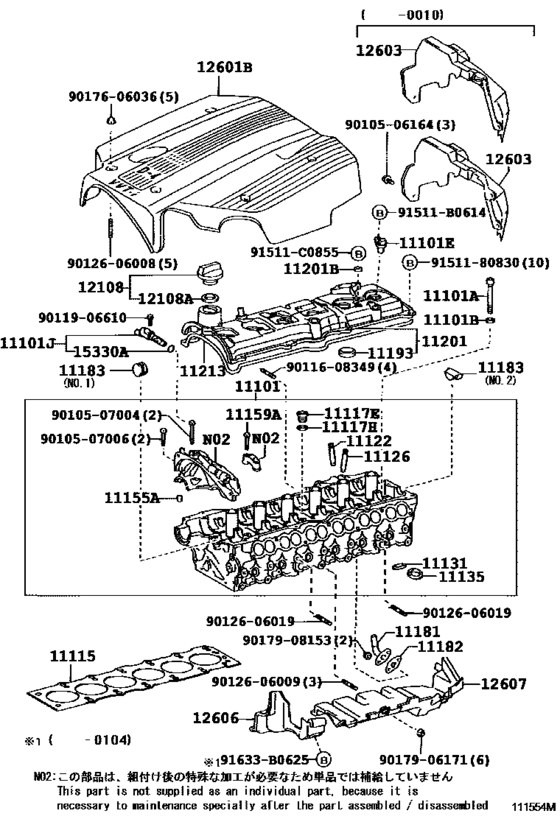

Cylinder Head ([09.1999 - ] (9909- )1JZFSE,2JZFSE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROY
- body
- WG
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 08.2001
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49425 Head Sub-Assy, Cylinder[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
11101-49425 |
US $2,475.20 |
||
| replacements | |||||
|
11101
|
11101
11101-49426 Head Sub-Assy, Cylinder[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
11101-49426 |
US $2,489.76 |
||
|
11101
|
11101
23807-46051 Pipe Sub-Assy, Fuel Delivery[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
23807-46051 |
US $346.53 |
||
|
11101A
|
11101A
90910-02102 Bolt(For Cylinder Head Set)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90910-02102 |
from US $16.17 |
||
|
11101B
|
11101B
90201-11018
Washer, Plate(For Cylinder Head Set)
[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90201-11018 |
— | ||
| replacement | |||||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90201-11034 |
from US $0.87 |
||
|
11101E
|
11101E
90919-05026 Sensor, Position[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
90919-05026 |
from US $73.83 |
||
|
11101J
|
11101J
15330-46020 Valve Assy, Camshaft Timing Oil Control[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
15330-46020 |
US $199.47 |
||
| replacement | |||||
|
11101J
|
11101J
15330-46021 Valve Assy, Camshaft Timing Oil Control[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
15330-46021 |
US $238.40 |
||
|
11115
|
11115
11115-46060 Gasket, Cylinder Head[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
11115-46060 |
from US $62.81 |
||
|
11117E
|
11117E
90341-24010 Plug, W/head Taper Screw, No.1[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
90341-24010 |
US $4.72 |
||
|
11117H
|
11117H
90430-24010 Gasket(For Cylinder Head Screw Plug)[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
90430-24010 |
US $3.58 |
||
|
11122
|
11122
11122-46020 Bush, Intake Valve Guide[09.1999 - 08.2001] 2JZFSE..JZS175,177 ＳＴＤ |
11122-46020 |
US $12.08 |
||
|
11122
|
11122
11123-46020 Bush, Intake Valve Guide[09.1999 - 08.2001] 2JZFSE..JZS175,177 Ｏ／Ｓ ０．０５ |
11123-46020 |
US $12.08 |
||
|
11126
|
11126
11122-16010 Bush, Intake Valve Guide[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# ＳＴＤ |
11122-16010 |
US $10.73 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# Ｏ／Ｓ ０．０５ |
11123-16010 |
US $11.36 |
||
|
11131
|
11131
11131-46040 Seat, Intake Valve[09.1999 - 08.2001] 2JZFSE..JZS175,177 ＳＴＤ |
11131-46040 |
US $15.43 |
||
|
11131
|
11131
11132-46040 Seat, Intake Valve[09.1999 - 08.2001] 2JZFSE..JZS175,177 Ｏ／Ｓ ０．０３ |
11132-46040 |
US $15.43 |
||
|
11135
|
11135
11135-46040 Seat, Exhaust Valve[08.2000 - 08.2001] 2JZFSE..JZS175,177 ＳＴＤ |
11135-46040 |
US $16.60 |
||
|
11135
|
11135
11135-74050 Seat, Exhaust Valve[09.1999 - 08.2000] 2JZFSE..JZS175,177 ＳＴＤ |
11135-74050 |
US $15.87 |
||
|
11135
|
11135
11136-46040 Seat, Exhaust Valve[08.2000 - 08.2001] 2JZFSE..JZS175,177 Ｏ／Ｓ ０．０３ |
11136-46040 |
US $16.60 |
||
|
11135
|
11135
11136-74050 Seat, Exhaust Valve[09.1999 - 08.2000] 2JZFSE..JZS175,177 Ｏ／Ｓ ０．０３ |
11136-74050 |
US $11.79 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
90253-11021 |
from US $1.41 |
||
|
11159A
|
11159A
90119-07009 Bolt(For Camshaft Housing Set)[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
90119-07009 |
from US $0.82 |
||
|
11181
|
11181
11181-46040 Plate, Cylinder Head, Rear[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
11181-46040 |
US $13.69 |
||
|
11182
|
11182
11182-46020 Gasket, Cylinder Head Rear Plate[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
11182-46020 |
US $1.60 |
||
|
11183
|
11183
11183-46010 Plug, Semicircular[09.1999 - 08.2001] 2JZFSE..JZS175,177 ＮＯ．１ |
11183-46010 |
US $13.98 |
||
|
11183
|
11183
11183-50020 Plug, Semicircular[09.1999 - 08.2001] 2JZFSE..JZS175,177 ＮＯ．２ |
11183-50020 |
from US $6.35 |
||
|
11193
|
11193
11193-46010 Gasket, Spark Plug Tube[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
11193-46010 |
from US $3.36 |
||
|
11201
|
11201
11201-46070 Cover Sub-Assy, Cylinder Head[09.1999 - 10.2000] 2JZFSE..JZS175,177 |
11201-46070 |
US $377.10 |
||
|
11201
|
11201
11201-46072 Cover Sub-Assy, Cylinder Head[10.2000 - 08.2001] 2JZFSE..JZS175,177 |
11201-46072 |
US $378.56 |
||
|
11201B
|
11201B
90210-07008 Washer, Seal(For Cylinder Head Cover)[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
90210-07008 |
US $1.97 |
||
|
11213
|
11213
11213-46040 Gasket, Cylinder Head Cover[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
11213-46040 |
from US $21.98 |
||
|
12108
|
12108
12180-20030 Cap Sub-Assy, Oil Filler[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
12180-20030 |
from US $14.10 |
||
|
12108A
|
12108A
12195-20020 Gasket(For Oil Filler Cap)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
12195-20020 |
from US $2.60 |
||
|
12601B
|
12601B
12601-46020 Cover Sub-Assy, Engine, No.1[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
12601-46020 |
US $318.86 |
||
|
12603
|
12603
12603-46010 Cover Sub-Assy, Engine, Rear[09.1999 - 10.2000] 2JZFSE..JZS175,177 |
12603-46010 |
US $82.99 |
||
|
12603
|
12603
12603-46020 Cover Sub-Assy, Engine, Rear[10.2000 - 12.2000] 2JZFSE..JZS175,177 |
12603-46020 |
US $82.99 |
||
| replacement | |||||
|
12603
|
12603
12603-46021 Cover Sub-Assy, Engine, Rear[10.2000 - 12.2000] 2JZFSE..JZS175,177 |
12603-46021 |
US $82.99 |
||
|
12603
|
12603
12603-46021 Cover Sub-Assy, Engine, Rear[12.2000 - 08.2001] 2JZFSE..JZS175,177 |
12603-46021 |
US $82.99 |
||
|
12606
|
12606
12606-46010 Cover Sub-Assy, Engine, Lh No.1[09.1999 - 04.2001] 2JZFSE..JZS175,177 |
12606-46010 |
US $46.45 |
||
| replacement | |||||
|
12606
|
12606
12606-46012 Cover Sub-Assy, Engine, Lh No.1[09.1999 - 04.2001] 2JZFSE..JZS175,177 |
12606-46012 |
US $46.16 |
||
|
12606
|
12606
12606-46012 Cover Sub-Assy, Engine, Lh No.1[04.2001 - 08.2001] 2JZFSE..JZS175,177 |
12606-46012 |
US $46.16 |
||
|
12607
|
12607
12607-46010 Cover Sub-Assy, Engine, Lh No.2[09.1999 - 12.2000] 2JZFSE..JZS175,177 |
12607-46010 |
US $158.70 |
||
| replacement | |||||
|
12607
|
12607
12607-46013 Cover Sub-Assy, Engine, Lh No.2[09.1999 - 12.2000] 2JZFSE..JZS175,177 |
12607-46013 |
US $157.25 |
||
|
12607
|
12607
12607-46011 Cover Sub-Assy, Engine, Lh No.2[12.2000 - 04.2001] 2JZFSE..JZS175,177 |
12607-46011 |
US $158.70 |
||
| replacement | |||||
|
12607
|
12607
12607-46013 Cover Sub-Assy, Engine, Lh No.2[12.2000 - 04.2001] 2JZFSE..JZS175,177 |
12607-46013 |
US $157.25 |
||
|
12607
|
12607
12607-46013 Cover Sub-Assy, Engine, Lh No.2[04.2001 - 08.2001] 2JZFSE..JZS175,177 |
12607-46013 |
US $157.25 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90099-14137 |
from US $2.11 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
91511C0855
|
91511C0855
91511-C0855 New Genuine Part |
91511-C0855 |
US $0.87 |
||
|
91633B0625
|
91633B0625
91633-B0625
BOLT WWASHER
|
91633-B0625 |
— | ||
| replacement | |||||
|
91633B0625
|
91633B0625
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.65 |
||
|
9010506164
|
9010506164
90105-06164 New Genuine Part |
90105-06164 |
US $2.15 |
||
|
9010507004
|
9010507004
90105-07004 Bolt(For Head To Camshaft Bearing Cap) |
90105-07004 |
US $1.31 |
||
|
9010507006
|
9010507006
90105-07006 Bolt(For Head To Camshaft Bearing Cap) |
90105-07006 |
US $1.75 |
||
|
9011608349
|
9011608349
90116-08349 New Genuine Part |
90116-08349 |
US $0.61 |
||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9012606008
|
9012606008
90126-06008 STUD HEX LOBULAR |
90126-06008 |
from US $1.29 |
||
|
9012606009
|
9012606009
90126-06009 STUD HEX LOBULAR |
90126-06009 |
US $2.33 |
||
|
9012606019
|
9012606019
90126-06019 New Genuine Part |
90126-06019 |
US $2.33 |
||
|
9017606036
|
9017606036
90176-06036 NUT |
90176-06036 |
from US $0.86 |
||
|
9017906171
|
9017906171
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.76 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9151180830
|
9151180830
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.58 |
||
