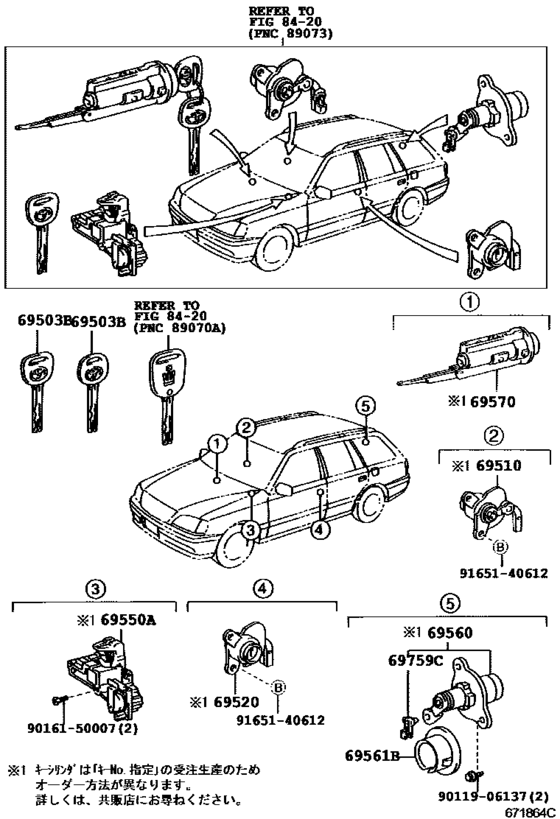

Lock Cylinder Set ([12.1999 - ] ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ) (9912- )WG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROY
- body
- WG
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 08.2001
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69503B
|
69503B
69515-30220 Key, Cut[09.1999 - 08.2001] GS171,JZS171,173,175,179 マスターキー |
69515-30220 |
US $182.40 |
||
|
69503B
|
69503B
69516-30120 Key, Cut[09.1999 - 08.2001] GS171,JZS171,173,175,179 サブキー |
69516-30120 |
US $154.34 |
||
|
69510
|
69510
69510-30250 Cylinder Assy, Front Door Lock, Rh[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
69510-30250 |
US $203.84 |
||
|
69520
|
69520
69520-30220 Cylinder Assy, Front Door Lock, Lh[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
69520-30220 |
US $203.84 |
||
|
69550A
|
69550A
69550-30140 Cylinder Assy, Glove Compartment Door Lock[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
69550-30140 |
US $196.56 |
||
|
69560
|
69560
69560-31080 Cylinder Assy, Back Door Lock[12.1999 - 08.2001] JZS171,173,175..WG |
69560-31080 |
US $203.84 |
||
|
69561B
|
69561B
69561-31010-A0 Retainer, Back Door Lock Cylinder[12.1999 - 08.2001] JZS171,173,175..WG WHITE PEARL CS.,062 ,2FQ |
69561-31010-A0 |
US $4.95 |
||
|
69561B
|
69561B
69561-31010-B0 Retainer, Back Door Lock Cylinder[12.1999 - 08.2001] JZS171,173,175..WG SILVER ME.,1C0 |
69561-31010-B0 |
US $4.95 |
||
|
69561B
|
69561B
69561-31010-D0 Retainer, Back Door Lock Cylinder[12.1999 - 08.2001] JZS171,173,175..WG RED MC.,3N1 |
69561-31010-D0 |
US $4.95 |
||
|
69561B
|
69561B
69561-31010-G0 Retainer, Back Door Lock Cylinder[12.1999 - 08.2001] JZS171,173,175..WG BLACKISH GREEN MC.CC,6R5 |
69561-31010-G0 |
US $4.95 |
||
|
69561B
|
69561B
69561-31010-J0 Retainer, Back Door Lock Cylinder[12.1999 - 08.2001] JZS171,173,175..WG DK.BLUE M.M.,8L4 |
69561-31010-J0 |
US $4.95 |
||
|
69561B
|
69561B
69561-31010-J1 Retainer, Back Door Lock Cylinder[12.1999 - 08.2001] JZS171,173,175..WG GRAYISH BLUE ME.,8N6 |
69561-31010-J1 |
US $4.95 |
||
|
69570
|
69570
69570-30220
Cylinder Assy, Ignition Switch Lock
[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
69570-30220 |
— | ||
|
69759C
|
69759C
69759-24080 Snap, Front Door Lock Control Rod[12.1999 - 08.2001] JZS171,173,175..WG |
69759-24080 |
from US $2.24 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.67 |
||
|
9016150007
|
9016150007
90161-50007 New Genuine Part |
90161-50007 |
US $0.52 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
