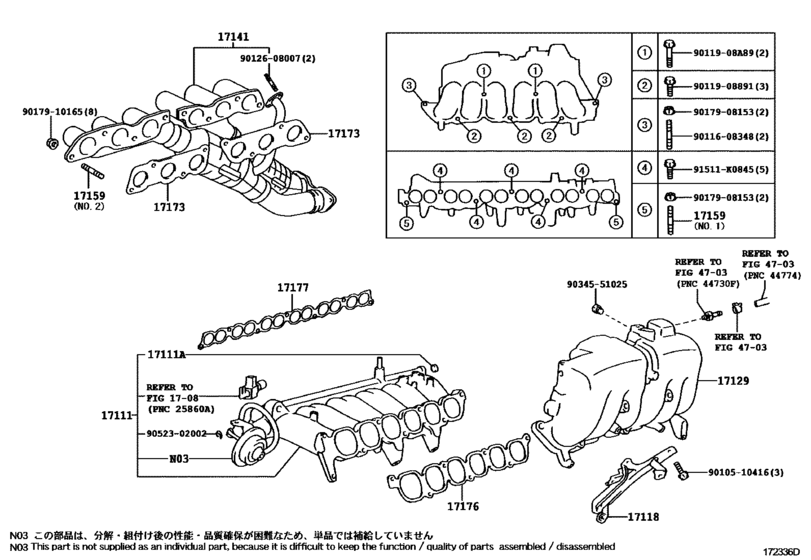

Manifold ([09.1999 - ] (9909- )1JZFSE,2JZFSE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROY
- body
- WG
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 08.2001
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-46010 Manifold, Intake[09.1999 - 10.2000] 2JZFSE..JZS175,177 |
17101-46010 |
US $880.88 |
||
| replacements | |||||
|
17111
|
17111
12261-46070 Hose, Ventilation[09.1999 - 10.2000] 2JZFSE..JZS175,177 |
12261-46070 |
US $16.84 |
||
|
17111
|
17111
17101-46011 Manifold, Intake[09.1999 - 10.2000] 2JZFSE..JZS175,177 |
17101-46011 |
US $880.88 |
||
|
17111
|
17111
17101-46011 Manifold, Intake[10.2000 - 08.2001] 2JZFSE..JZS175,177 |
17101-46011 |
US $880.88 |
||
|
17111A
|
17111A
96411-41400 Plug, Tight, No.5(For Cylinder Block)[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
96411-41400 |
US $2.15 |
||
|
17118
|
17118
17118-46020 Stay, Manifold[09.1999 - 04.2001] 2JZFSE..JZS175,177 |
17118-46020 |
US $58.68 |
||
| replacement | |||||
|
17118
|
17118
17118-46021 Stay, Manifold[09.1999 - 04.2001] 2JZFSE..JZS175,177 |
17118-46021 |
US $58.68 |
||
|
17118
|
17118
17118-46021 Stay, Manifold[04.2001 - 08.2001] 2JZFSE..JZS175,177 |
17118-46021 |
US $58.68 |
||
|
17129
|
17129
17109-46110 Tank, Intake Air Surge[09.1999 - 10.2000] 2JZFSE..JZS175,177 |
17109-46110 |
US $601.33 |
||
|
17129
|
17129
17109-46111 Tank, Intake Air Surge[10.2000 - 12.2000] 2JZFSE..JZS175,177 |
17109-46111 |
US $601.33 |
||
| replacement | |||||
|
17129
|
17129
17109-46112 Tank, Intake Air Surge[10.2000 - 12.2000] 2JZFSE..JZS175,177 |
17109-46112 |
US $601.33 |
||
|
17129
|
17129
17109-46112 Tank, Intake Air Surge[12.2000 - 08.2001] 2JZFSE..JZS175,177 |
17109-46112 |
US $601.33 |
||
|
17141
|
17141
17140-46100 Manifold, Exhaust[09.1999 - 01.2001] 2JZFSE..JZS175,177 |
17140-46100 |
US $1,630.72 |
||
| replacement | |||||
|
17141
|
17141
17140-46102 Manifold, Exhaust[09.1999 - 01.2001] 2JZFSE..JZS175,177 |
17140-46102 |
US $1,630.72 |
||
|
17141
|
17141
17140-46101 Manifold, Exhaust[01.2001 - 08.2001] 2JZFSE..JZS175,177 |
17140-46101 |
US $1,630.72 |
||
| replacement | |||||
|
17141
|
17141
17140-46102 Manifold, Exhaust[01.2001 - 08.2001] 2JZFSE..JZS175,177 |
17140-46102 |
US $1,630.72 |
||
|
17159
|
17159
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)[09.1999 - 08.2001] 2JZFSE..JZS175,177 ＮＯ．１ |
90126-08026 |
from US $2.32 |
||
|
17159
|
17159
90126-10014 Bolt, Stud(For Manifold To Cylinder Head)[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179; 2JZFSE..JZS175,177 ＮＯ．２ |
90126-10014 |
from US $3.29 |
||
|
17173
|
17173
17173-46050 Gasket, Exhaust Manifold To Head[09.1999 - 02.2001] 1JZGE,2JZ#..JZS17# |
17173-46050 |
US $18.35 |
||
| replacement | |||||
|
17173
|
17173
17173-46051 Gasket, Exhaust Manifold To Head[09.1999 - 02.2001] 1JZGE,2JZ#..JZS17# |
17173-46051 |
from US $14.84 |
||
|
17173
|
17173
17173-46051 Gasket, Exhaust Manifold To Head[02.2001 - 08.2001] 1JZGE,2JZ#..JZS17# |
17173-46051 |
from US $14.84 |
||
|
17176
|
17176
17176-46050 Gasket, Air Surge Tank To Intake Manifold[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
17176-46050 |
from US $9.39 |
||
|
17177
|
17177
17177-46070 Gasket, Intake Manifold To Head, No.1[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
17177-46070 |
from US $9.50 |
||
|
91511K0845
|
91511K0845
91511-K0845 New Genuine Part |
91511-K0845 |
US $3.05 |
||
|
9011908A89
|
9011908A89
90119-08A89 BOLT WWASHER |
90119-08A89 |
US $4.12 |
||
|
9010510416
|
9010510416
90105-10416 New Genuine Part |
90105-10416 |
US $2.51 |
||
|
9011608348
|
9011608348
90116-08348 Bolt, Stud(For Water Outlet) |
90116-08348 |
from US $1.65 |
||
|
9011908891
|
9011908891
90119-08891 BOLT |
90119-08891 |
US $2.15 |
||
|
9012608007
|
9012608007
90126-08007 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-08007 |
US $6.99 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $0.95 |
||
|
9034551025
|
9034551025
90345-51025 Plug, W/head Taper Screw, No.2 |
90345-51025 |
US $3.76 |
||
|
9052302002
|
9052302002
90523-02002 Ring, E(For Surge Tank Diaphrgm) |
90523-02002 |
US $0.61 |
||
