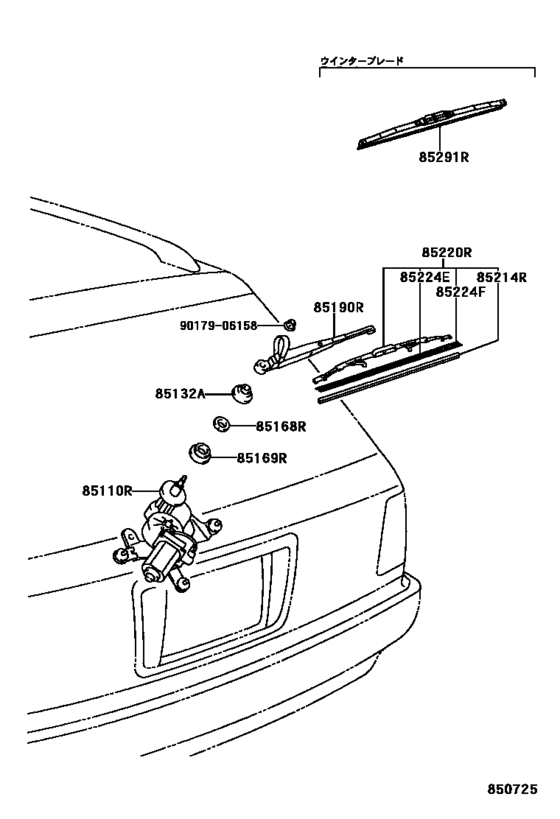

Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROY
- body
- WG
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 08.2001
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85130-31020 Motor Assy, Rear Wiper[12.1999 - 08.2001] JZS171,173,175..WG |
85130-31020 |
US $461.55 |
||
|
85132A
|
85132A
85132-31020
Cover, Rear Wiper Shaft
[12.1999 - 08.2001] JZS171,173,175..WG |
85132-31020 |
— | ||
|
85168R
|
85168R
90099-05157 Nut, Windshield Wiper Link Pivot[12.1999 - 08.2001] JZS171,173,175..WG |
90099-05157 |
from US $3.94 |
||
|
85169R
|
85169R
85134-21030
Washer, Rear Wiper Link Pivot, No.1
[12.1999 - 08.2001] JZS171,173,175..WG |
85134-21030 |
— | ||
|
85190R
|
85190R
85241-31020 Arm Assy, Rear Wiper[12.1999 - 08.2001] JZS171,173,175..WG |
85241-31020 |
US $30.40 |
||
|
85214R
|
85214R
85214-31010 Rubber, Rear Wiper[12.1999 - 08.2001] JZS171,173,175..WG |
85214-31010 |
from US $8 |
||
|
85220R
|
85220R
85242-31011 Blade Assy, Rear Wiper[12.1999 - 08.2001] JZS171,173,175..WG |
85242-31011 |
US $11.01 |
||
|
85224E
|
85224E
85224-31020 Plate, Rear Wiper Rubber Backing, No.1[12.1999 - 08.2001] JZS171,173,175..WG |
85224-31020 |
US $4.22 |
||
|
85224F
|
85224F
85224-31020 Plate, Rear Wiper Rubber Backing, No.1[12.1999 - 08.2001] JZS171,173,175..WG |
85224-31020 |
US $4.22 |
||
|
85291R
|
85291R
85291-33020 Blade Assy, Rear Wiper[12.1999 - 08.2001] JZS171,173,175..WG |
85291-33020 |
US $34.94 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
US $1.25 |
