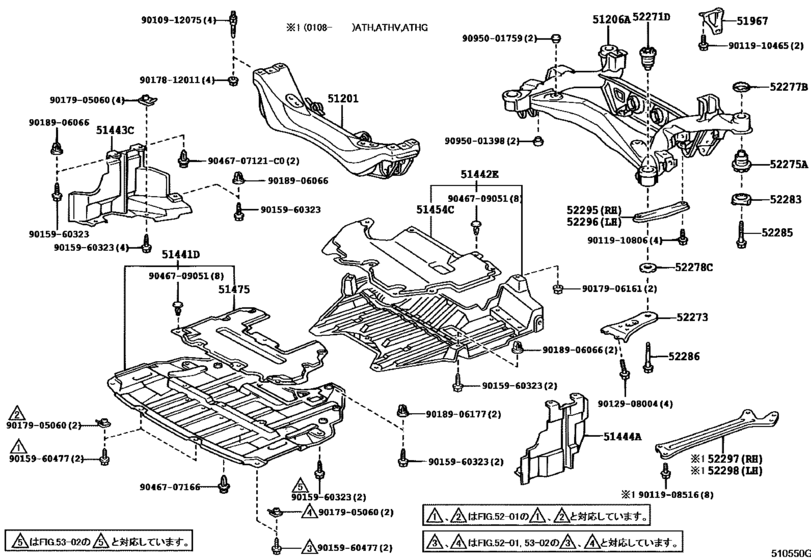

Suspension Crossmember & Under Cover ([09.1999 - ] (9909- )JZS171,175..D4,TWT) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROY
- body
- WG
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 08.2001
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51201
|
51201
51201-51011 Crossmember Sub-Assy, Front Suspension[09.1999 - 08.2001] GS171,JZS171,175 |
51201-51011 |
from US $476.11 |
||
|
51206A
|
51206A
51206-51020
Member Sub-Assy, Rear Suspension
[09.1999 - 06.2000] GS171,JZS171,173,175,179 |
51206-51020 |
— | ||
| replacement | |||||
|
51206A
|
51206A
51206-53020 Member Sub-Assy, Rear Suspension[09.1999 - 06.2000] GS171,JZS171,173,175,179 |
51206-53020 |
US $1,200.98 |
||
|
51206A
|
51206A
51206-51021 Member Sub-Assy, Rear Suspension[06.2000 - 07.2000] GS171,JZS171,173,175,179 |
51206-51021 |
US $1,121.12 |
||
| replacement | |||||
|
51206A
|
51206A
51206-53020 Member Sub-Assy, Rear Suspension[06.2000 - 07.2000] GS171,JZS171,173,175,179 |
51206-53020 |
US $1,200.98 |
||
|
51206A
|
51206A
51206-51030 Member Sub-Assy, Rear Suspension[07.2000 - 08.2001] GS171,JZS171,173,175,179 |
51206-51030 |
US $1,124.03 |
||
| replacement | |||||
|
51206A
|
51206A
51206-53020 Member Sub-Assy, Rear Suspension[07.2000 - 08.2001] GS171,JZS171,173,175,179 |
51206-53020 |
US $1,200.98 |
||
|
51441D
|
51441D
51410-30010 Cover, Engine Under[09.1999 - 08.2001] JZS171,175..D4,TWT |
51410-30010 |
US $327.60 |
||
|
51442E
|
51442E
51420-30010
Cover, Engine Under, No.2
[09.1999 - 08.2001] JZS171,175..D4,TWT |
51420-30010 |
— | ||
| replacement | |||||
|
51442E
|
51442E
51420-51010 Cover, Engine Under, No.2[09.1999 - 08.2001] JZS171,175..D4,TWT |
51420-51010 |
US $171.36 |
||
|
51443C
|
51443C
51443-51010 Cover, Engine Under, Rear Rh[09.1999 - 08.2001] GS171,JZS171,175 |
51443-51010 |
US $34.62 |
||
|
51444A
|
51444A
51444-51010 Cover, Engine Under, Rear Lh[09.1999 - 08.2001] GS171,JZS171,175 |
51444-51010 |
US $34.62 |
||
|
51454C
|
51454C
51454-30030 Silencer, Engine Under Cover, Rear[09.1999 - 08.2001] JZS171,175..D4,TWT |
51454-30030 |
US $78.62 |
||
|
51475
|
51475
51475-30010 Silencer, Engine Under Cover, No.5[09.1999 - 08.2001] JZS171,175..D4,TWT |
51475-30010 |
US $90.27 |
||
|
51967
|
51967
51967-22070 Hook, Transport, Rear[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
51967-22070 |
US $27.37 |
||
|
52271D
|
52271D
52271-51010 Cushion, Rear Suspension Member Body Mounting, Front[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
52271-51010 |
US $56.28 |
||
|
52273
|
52273
52273-51010 Stopper, Rear Suspension Member, Lower[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
52273-51010 |
US $22.68 |
||
|
52275A
|
52275A
52275-30080 Cushion, Rear Suspension Member Body Mounting, Rear[09.1999 - 08.2001] JZS175..ROY,ROYG;GS171,JZS171,173,179..4FC..(ATH,ROY,ROYEX) |
52275-30080 |
US $82.99 |
||
|
52277B
|
52277B
52277-30020 Stopper, Rear Suspension Member, Rear Upper[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
52277-30020 |
US $12.93 |
||
|
52278C
|
52278C
52278-51010 Stopper, Rear Suspension Member, Rear Lower[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
52278-51010 |
US $10.57 |
||
|
52283
|
52283
52283-30050 Stopper, Differential Support Member, Lower[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
52283-30050 |
US $17.98 |
||
|
52285
|
52285
52285-30021 Bolt, Differential Support Member Mounting, No.1[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
52285-30021 |
from US $17.06 |
||
|
52286
|
52286
52286-30010 Bolt, Differential Support Member Mounting, No.2[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
52286-30010 |
US $46.37 |
||
|
52295
|
52295
52295-50010 Brace, Rear Suspension Member, Rh[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
52295-50010 |
US $21 |
||
|
52296
|
52296
52295-50010 Brace, Rear Suspension Member, Rh[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
52295-50010 |
US $21 |
||
|
9010912075
|
9010912075
90109-12075 New Genuine Part |
90109-12075 |
US $6.64 |
||
|
9011908516
|
9011908516
90119-08516 BOLT |
90119-08516 |
from US $0.78 |
||
|
9011910465
|
9011910465
90119-10465 WASHER |
90119-10465 |
US $2.15 |
||
|
9011910806
|
9011910806
90119-10806 New Genuine Part |
90119-10806 |
US $14.52 |
||
|
9012908004
|
9012908004
90129-08004 BOLT WWASHER |
90129-08004 |
US $3.58 |
||
|
9015960323
|
9015960323
90159-60323 SCREW |
90159-60323 |
from US $0.82 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.68 |
||
|
9017812011
|
9017812011
90178-12011 New Genuine Part |
90178-12011 |
US $4.66 |
||
|
9017905060
|
9017905060
90179-05060 LEXNUT |
90179-05060 |
from US $0.76 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.68 |
||
|
9018906177
|
9018906177
90189-06177 GROMMET SCREW |
90189-06177 |
from US $0.74 |
||
|
9046707121C0
|
9046707121C0
90467-07121-C0 Clip, Roof Headlining |
90467-07121-C0 |
US $2.87 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.86 |
||
|
9046709051
|
9046709051
90467-09051 CLIP |
90467-09051 |
from US $0.89 |
||
|
9095001398
|
9095001398
90950-01398 CUSHION |
90950-01398 |
from US $0.89 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $2.03 |
||
