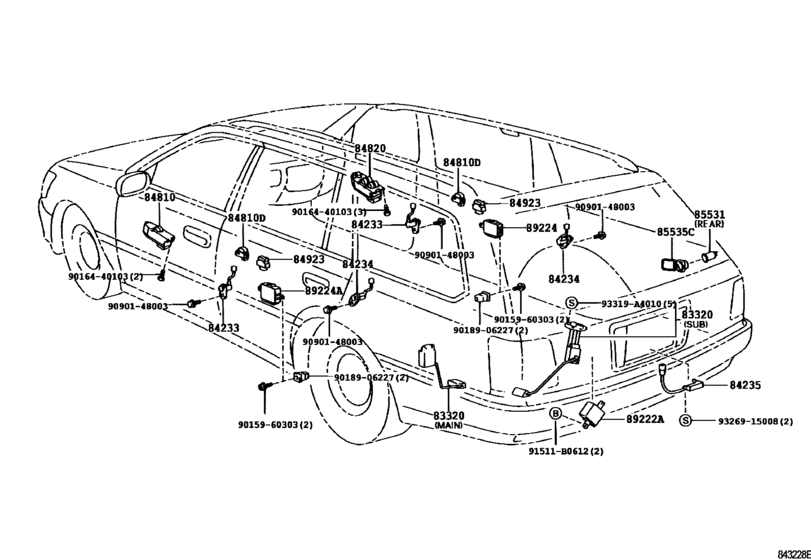

Switch & Relay & Computer ([12.1999 - ] ﾙ-ﾌ,ﾄﾞｱ,ｼ-ﾄ & ﾌﾛｱ (9912- )WG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROY
- body
- WG
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 08.2001
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-51010 Gage Assy, Fuel Sender[09.1999 - 08.2001] GS171,JZS171,173,175,179 メイン |
83320-51010 |
from US $60.06 |
||
|
83320
|
83320
83320-59095 Gage Assy, Fuel Sender[09.1999 - 08.2001] GS171,JZS171,173,175,179 サブ |
83320-59095 |
US $72.74 |
||
|
84233
|
84233
84231-30290 Switch Assy, Courtesy Lamp (For Front Door)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
84231-30290 |
US $14.41 |
||
| replacement | |||||
|
84233
|
84233
84231-30280 Switch Assy, Courtesy Lamp (For Rear Door)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
84231-30280 |
US $17.98 |
||
|
84234
|
84234
84231-30280 Switch Assy, Courtesy Lamp (For Rear Door)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
84231-30280 |
US $17.98 |
||
|
84235
|
84235
84231-31010 Switch Assy, Courtesy Lamp(For Back Door)[12.1999 - 08.2001] JZS171,173,175..WG |
84231-31010 |
US $14.41 |
||
|
84810
|
84810
84030-30041 Switch Assy, Power Window Regulator[11.1999 - 08.2001] GS171,JZS171,173,175,179 |
84030-30041 |
US $144.14 |
||
|
84810D
|
84810D
84030-30050 Switch Assy, Power Window Regulator, Rear[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
84030-30050 |
US $47.90 |
||
|
84820
|
84820
84040-30071 Master Switch Assy, Power Window Regulator[11.1999 - 08.2001] GS171,JZS171,173,175,179 |
84040-30071 |
US $460.10 |
||
|
84923
|
84923
84923-31010 Switch, Rear Power Seat[12.1999 - 08.2001] JZS171,173,175..WG |
84923-31010 |
US $53.87 |
||
|
85531
|
85531
85531-30010 Socket, Power Outlet[09.1999 - 08.2001] GS171,JZS17#,UZS17# フロント |
85531-30010 |
US $33.20 |
||
|
85531
|
85531
85531-48010 Socket, Power Outlet[12.1999 - 08.2001] JZS171,173,175..WG リヤ |
85531-48010 |
US $33.20 |
||
|
85535C
|
85535C
85535-31010-A0 Cover, Power Outlet Socket, Rear[12.1999 - 08.2001] JZS171,173,175..WG IVORY,TRIM0# |
85535-31010-A0 |
US $9.90 |
||
| replacement | |||||
|
85535C
|
85535C
85535-53010-C0 Cover, Power Outlet Socket, RearPOWER OUTLET SOCKET, REAR [12.1999 - 08.2001] JZS171,173,175..WG IVORY,TRIM0# |
85535-53010-C0 |
US $8.30 |
||
|
85535C
|
85535C
85535-31010-B1 Cover, Power Outlet Socket, Rear[12.1999 - 08.2001] JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
85535-31010-B1 |
US $9.90 |
||
| replacement | |||||
|
85535C
|
85535C
85535-53010-C0 Cover, Power Outlet Socket, RearPOWER OUTLET SOCKET, REAR [12.1999 - 08.2001] JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
85535-53010-C0 |
US $8.30 |
||
|
89222A
|
89222A
89222-31010 Computer, Multiplex Network Door[12.1999 - 07.2000] JZS171,173,175..WG |
89222-31010 |
US $455.73 |
||
| replacement | |||||
|
89222A
|
89222A
89222-31012 Computer, Multiplex Network Door[12.1999 - 07.2000] JZS171,173,175..WG |
89222-31012 |
US $457.18 |
||
|
89222A
|
89222A
89222-31011 Computer, Multiplex Network Door[07.2000 - 08.2001] JZS171,173,175..WG |
89222-31011 |
US $455.73 |
||
| replacement | |||||
|
89222A
|
89222A
89222-31012 Computer, Multiplex Network Door[07.2000 - 08.2001] JZS171,173,175..WG |
89222-31012 |
US $457.18 |
||
|
89224
|
89224
89224-30020 Computer, Multiplex Network Door, Rear Rh[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
89224-30020 |
US $390.21 |
||
|
89224A
|
89224A
89224-30020 Computer, Multiplex Network Door, Rear Rh[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
89224-30020 |
US $390.21 |
||
|
91511B0612
|
91511B0612
91511-B0612 BOLT FLANGE |
91511-B0612 |
from US $0.99 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.67 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.65 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
|
9326915008
|
9326915008
93269-15008 New Genuine Part |
93269-15008 |
US $1.08 |
||
