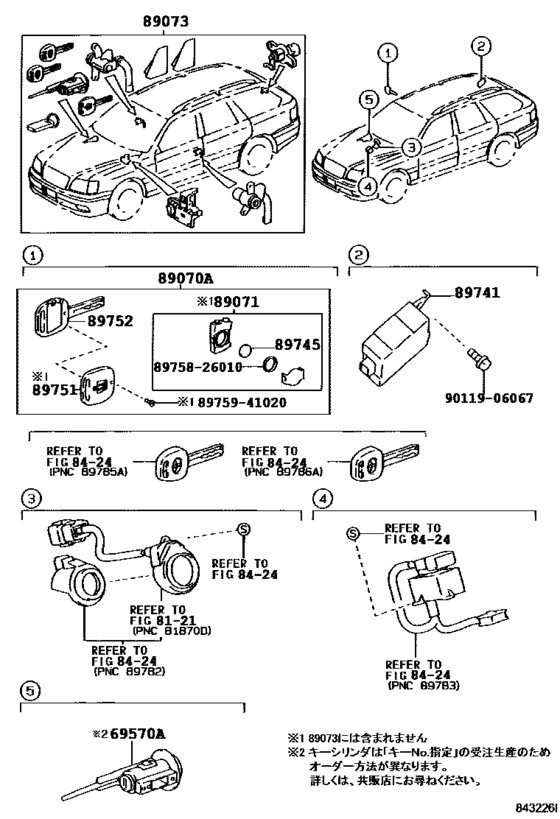

Wireless Door Lock ([12.1999 - ] ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) (9912- )WG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROY
- body
- WG
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 08.2001
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69570A
|
69570A
69570-30210
Cylinder Assy, Ignition Switch Lock
[09.1999 - 08.2001] JZS175,177,UZS17# |
69570-30210 |
— | ||
|
89070A
|
89070A
89070-30270 Transmitter, Door Control (Cut Key)[12.1999 - 08.2001] JZS175..WG ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) |
89070-30270 |
US $522.60 |
||
|
89070A
|
89070A
89070-30280 Transmitter, Door Control (Cut Key)[12.1999 - 08.2001] JZS171,173,175..WG |
89070-30280 |
US $404.77 |
||
|
89071
|
89071
89071-26010 Module Set, Transmitter Sub-Assy, Door Control[12.1999 - 08.2001] JZS171,173,175..WG |
89071-26010 |
US $208 |
||
|
89071
|
89071
89071-30050 Module Set, Transmitter Sub-Assy, Door Control[12.1999 - 08.2001] JZS175..WG ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) |
89071-30050 |
US $264 |
||
|
89073
|
89073
89073-30330 Cylinder Set, Lock W/transmitter Housing(Less Module)[12.1999 - 08.2001] JZS175..WG ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) |
89073-30330 |
US $834.29 |
||
|
89073
|
89073
89073-30340 Cylinder Set, Lock W/transmitter Housing(Less Module)[12.1999 - 08.2001] JZS171,173,175..WG |
89073-30340 |
US $803.71 |
||
|
89741
|
89741
89741-30300 Receiver, Door Control[12.1999 - 08.2001] JZS171,173,175..WG |
89741-30300 |
US $703.25 |
||
|
89745
|
89745
89745-26010 Battery, Transmitter[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
89745-26010 |
US $5.82 |
||
|
89751
|
89751
89751-30010 Cover, Transmitter Housing[09.1999 - 11.2005] JZS171,175 |
89751-30010 |
US $37.63 |
||
|
89752
|
89752
89752-30060 Case, Transmitter HousingTRANSMITTER HOUSING [12.1999 - 06.2007] GS171,JZS171,173,175..WG マスターキー |
89752-30060 |
US $198.40 |
||
|
8975826010
|
8975826010
89758-26010
Packing, Door Control Transmitter
|
89758-26010 |
— | ||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.08 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.97 |
