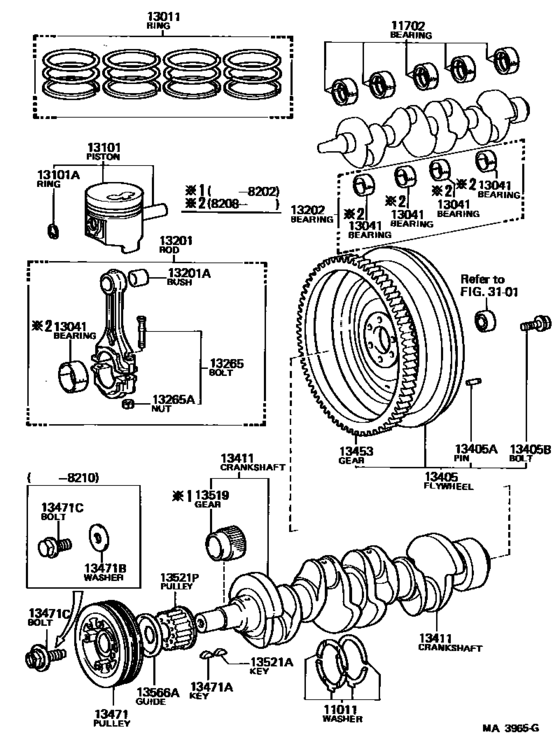

Crankshaft & Piston ([09.1979 - ] (7909- )L) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- LS110
- grade
- BTP
- body
- SED
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-54010
Washer Set, Crankshaft Thrust
[09.1979 - 07.1983] L,2LT#..LS11# ＳＴＤ,STD |
11011-54010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-54020 Washer Set, Crankshaft Thrust[09.1979 - 07.1983] L,2LT#..LS11# ＳＴＤ,STD |
11011-54020 |
from US $17.02 |
||
|
11011
|
11011
11012-54010
Washer Set, Crankshaft Thrust
[09.1979 - 07.1983] L,2LT#..LS11# Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-54010 |
— | ||
| replacement | |||||
|
11011
|
11011
11012-54020 Washer Set, Crankshaft Thrust[09.1979 - 07.1983] L,2LT#..LS11# Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-54020 |
US $17.30 |
||
|
11011
|
11011
11013-54010
Washer Set, Crankshaft Thrust
[09.1979 - 07.1983] L,2LT#..LS11# Ｏ／Ｓ ０．２５０,O/S 0.250 |
11013-54010 |
— | ||
| replacement | |||||
|
11011
|
11011
11013-54020 Washer Set, Crankshaft Thrust[09.1979 - 07.1983] L,2LT#..LS11# Ｏ／Ｓ ０．２５０,O/S 0.250 |
11013-54020 |
US $17.30 |
||
|
11702
|
11702
11702-54010
Bearing Set, Crankshaft
[09.1979 - 04.1983] L..LS110,117 STD |
11702-54010 |
— | ||
|
11702
|
11702
11703-54010 Bearing Set, Crankshaft (OS 0.05)[09.1979 - 04.1983] L..LS110,117 U/S 0.05 |
11703-54010 |
US $326.14 |
||
|
11702
|
11702
11704-54010 Bearing Set, Crankshaft (OS 0.25)[09.1979 - 04.1983] L..LS110,117 U/S 0.25 |
11704-54010 |
US $326.14 |
||
|
11702
|
11702
11705-54010 Bearing Set, Crankshaft[09.1979 - 04.1983] L..LS110,117 U/S 0.50 |
11705-54010 |
US $326.14 |
||
|
13011
|
13011
13011-54020 Ring Set, Piston[09.1979 - 07.1981] L..LS11# STD |
13011-54020 |
US $353.81 |
||
| replacement | |||||
|
13011
|
13011
13011-54021 Ring Set, Piston[09.1979 - 07.1981] L..LS11# STD |
13011-54021 |
from US $219.34 |
||
|
13011
|
13011
13011-54040 Ring Set, Piston[07.1981 - 12.1981] L..LS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD STD |
13011-54040 |
US $391.66 |
||
| replacement | |||||
|
13011
|
13011
13011-54080 Ring Set, Piston[07.1981 - 12.1981] L..LS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD STD |
13011-54080 |
from US $97.56 |
||
|
13011
|
13011
13013-54020 Ring Set, Piston[09.1979 - 07.1981] L..LS11# O/S 0.50 |
13013-54020 |
US $353.81 |
||
| replacement | |||||
|
13011
|
13011
13013-54021 Ring Set, Piston[09.1979 - 07.1981] L..LS11# O/S 0.50 |
13013-54021 |
US $349.44 |
||
|
13011
|
13011
13013-54040 Ring Set, Piston[07.1981 - 12.1981] L..LS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD O/S 0.50 |
13013-54040 |
US $428.06 |
||
| replacement | |||||
|
13011
|
13011
13013-54080 Ring Set, Piston[07.1981 - 12.1981] L..LS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD O/S 0.50 |
13013-54080 |
US $391.66 |
||
|
13101
|
13101
13101-54010
Piston Sub-Assy, W/pin
[09.1979 - 07.1981] L..LS11# STD |
13101-54010 |
— | ||
|
13101
|
13101
13101-54020
Piston Sub-Assy, W/pin
[07.1981 - 09.1981] L..LS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD STD |
13101-54020 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-54021 Piston Sub-Assy, W/pin[07.1981 - 09.1981] L..LS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD STD |
13101-54021 |
from US $21.26 |
||
|
13101
|
13101
13103-54010 Piston Sub-Assy, W/pin[09.1979 - 07.1981] L..LS11# O/S 0.50 |
13103-54010 |
US $163.07 |
||
|
13101
|
13101
13103-54020
Piston Sub-Assy, W/pin (OS 0.50)
[07.1981 - 09.1981] L..LS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD O/S 0.50 |
13103-54020 |
— | ||
| replacement | |||||
|
13101
|
13101
13103-54021 Piston Sub-Assy, W/pin (OS 0.50)[07.1981 - 09.1981] L..LS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD O/S 0.50 |
13103-54021 |
US $174.72 |
||
|
13101A
|
13101A
90521-29003 Ring, Hole Snap(For Piston Pin)[09.1979 - 07.1983] L..LS110,117 |
90521-29003 |
US $2.04 |
||
|
13201
|
13201
13201-54010
Rod Sub-Assy, Connecting
[09.1979 - 02.1982] L..LS11# |
13201-54010 |
— | ||
|
13201A
|
13201A
90999-73083
Bush(For Connecting Rod Small End)
[09.1979 - 07.1983] L..LS110,117 |
90999-73083 |
— | ||
|
13202
|
13202
13202-54010
Bearing Set, Connecting Rod
[09.1979 - 10.1981] L..LS11# STD |
13202-54010 |
— | ||
| replacement | |||||
|
13202
|
13202
13202-54011
Bearing Set, Connecting Rod
[09.1979 - 10.1981] L..LS11# STD |
13202-54011 |
— | ||
|
13202
|
13202
13203-54010 Bearing Set, Connecting Rod[09.1979 - 10.1981] L..LS11# U/S 0.05 |
13203-54010 |
US $171.81 |
||
| replacement | |||||
|
13202
|
13202
13203-54011 Bearing Set, Connecting Rod[09.1979 - 10.1981] L..LS11# U/S 0.05 |
13203-54011 |
US $195.10 |
||
|
13202
|
13202
13204-54010 Bearing Set, Connecting Rod[09.1979 - 10.1981] L..LS11# U/S 0.25 |
13204-54010 |
US $171.81 |
||
| replacement | |||||
|
13202
|
13202
13204-54011 Bearing Set, Connecting Rod[09.1979 - 10.1981] L..LS11# U/S 0.25 |
13204-54011 |
US $195.10 |
||
|
13202
|
13202
13205-54010 Bearing Set, Connecting Rod[09.1979 - 10.1981] L..LS11# U/S 0.50 |
13205-54010 |
US $171.81 |
||
| replacement | |||||
|
13202
|
13202
13205-54011 Bearing Set, Connecting Rod[09.1979 - 10.1981] L..LS11# U/S 0.50 |
13205-54011 |
US $195.10 |
||
|
13265
|
13265
13265-59025
Bolt, Connecting Rod
[09.1979 - 07.1983] L,2LT#..LS11# |
13265-59025 |
— | ||
| replacements | |||||
|
13265
|
13265
13265-54020
Bolt, Connecting Rod
[09.1979 - 07.1983] L,2LT#..LS11# |
13265-54020 |
— | ||
|
13265
|
13265
90179-10123 Nut, Hexagon(For Connecting Rod Bolt)[09.1979 - 07.1983] L,2LT#..LS11# |
90179-10123 |
from US $0.99 |
||
|
13265A
|
13265A
90170-10005
Nut, Hexagon(For Connecting Rod Bolt)
[09.1979 - 07.1983] L,2LT#..LS11# |
90170-10005 |
— | ||
| replacement | |||||
|
13265A
|
13265A
90179-10123 Nut, Hexagon(For Connecting Rod Bolt)[09.1979 - 07.1983] L,2LT#..LS11# |
90179-10123 |
from US $0.99 |
||
|
13405
|
13405
13405-59035
Flywheel Sub-Assy
[09.1979 - 07.1983] L..LS110,117..MTM N=101 |
13405-59035 |
— | ||
| replacements | |||||
|
13405
|
13405
13405-54013
Flywheel Sub-assy
[09.1979 - 07.1983] L..LS110,117..MTM N=101 |
13405-54013 |
— | ||
|
13405
|
13405
90105-12109 Bolt, Flywheel Setting[09.1979 - 07.1983] L..LS110,117..MTM N=101 |
90105-12109 |
US $4.16 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[09.1979 - 07.1983] 5RU..RS110 長さ＝２３，外径＝８,L=23,OD=8; MEU,MJ,5MEU,MU..MS11#..MTM 長さ＝２３，外径＝８,L=23,OD=8; L,2LT..LS11#..MTM 長さ＝２３，外径＝８,L=23,OD=8; 1GE#..GS11#..MTM 長さ＝２３，外径＝８,L=23,OD=8 |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-12011 Bolt, Flywheel Setting[09.1979 - 07.1983] L,2LT..LS11#..MTM *12-1.25PX29-19 |
90105-12011 |
US $3.93 |
||
|
13411
|
13411
13401-54010 Crankshaft[09.1979 - 04.1980] L..LS11# |
13401-54010 |
US $1,834.56 |
||
| replacement | |||||
|
13411
|
13411
13401-54013
Crankshaft
[09.1979 - 04.1980] L..LS11# |
13401-54013 |
— | ||
|
13411
|
13411
13401-54011
Crankshaft
[04.1980 - 02.1982] L..LS11# |
13401-54011 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-54013
Crankshaft
[04.1980 - 02.1982] L..LS11# |
13401-54013 |
— | ||
|
13453
|
13453
13453-54010 Gear, Flywheel Ring[09.1979 - 07.1983] L,2LT..LS11#..MTM N=101 |
13453-54010 |
US $129.29 |
||
|
13471
|
13471
13408-54010
Pulley, Crankshaft
[09.1979 - 07.1983] L..LS110,117 |
13408-54010 |
— | ||
| replacement | |||||
|
13471
|
13471
13408-54H00 Pulley, Crankshaft[09.1979 - 07.1983] L..LS110,117 |
13408-54H00 |
US $243.15 |
||
|
13471A
|
13471A
95161-20622
Key, Crankshaft(For Crankshaft Pulley Set)
[09.1979 - 07.1983] L,2LT#..LS11# |
95161-20622 |
— | ||
| replacement | |||||
|
13471A
|
13471A
95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)[09.1979 - 07.1983] L,2LT#..LS11# |
95161-30622 |
from US $1.56 |
||
|
13471B
|
13471B
90201-14007
Washer, Plate(For Crankshaft Pulley Set)
[09.1979 - 10.1982] L,2LT#..LS11# |
90201-14007 |
— | ||
| replacement | |||||
|
13471B
|
13471B
90201-14030 Washer, Plate(For Crankshaft Pulley Set)[09.1979 - 10.1982] L,2LT#..LS11# |
90201-14030 |
US $9.76 |
||
|
13471C
|
13471C
91511-61435 Bolt(For Crankshaft Pulley Set)[09.1979 - 10.1982] L,2LT#..LS11# *14-1.5PX35-35 |
91511-61435 |
US $4.51 |
||
| replacement | |||||
|
13471C
|
13471C
90105-14089 Bolt(For Crankshaft Pulley Set)[09.1979 - 10.1982] L,2LT#..LS11# *14-1.5PX35-35 |
90105-14089 |
from US $3.26 |
||
|
13519
|
13519
13519-54011
Gear, Oil Pump Drive
[09.1979 - 02.1982] L..LS11# |
13519-54011 |
— | ||
|
13521A
|
13521A
95161-20622
Key, Crankshaft(For Crankshaft Pulley Set)
[09.1979 - 07.1983] L,2LT#..LS11# |
95161-20622 |
— | ||
| replacement | |||||
|
13521A
|
13521A
95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)[09.1979 - 07.1983] L,2LT#..LS11# |
95161-30622 |
from US $1.56 |
||
|
13521P
|
13521P
13521-54010
Pulley, Crankshaft Timing
[09.1979 - 05.1982] L..LS11# N=21 |
13521-54010 |
— | ||
|
13566A
|
13566A
13566-54010 Guide, Timing Belt[09.1979 - 07.1983] L,2LT#..LS11# |
13566-54010 |
US $12.52 |
||
| replacement | |||||
|
13566A
|
13566A
13566-54040 Guide, Timing Belt[09.1979 - 07.1983] L,2LT#..LS11# |
13566-54040 |
from US $3.90 |
||
